Velowave | Ranger Step-Thru 2.0 Electric Bike

Velowave | Ranger Step-Thru 2.0 Electric Bike | RK-RANGERSTSL

SKU: RK-RANGERSTSL

$1,499.00

🚚 Free Shipping over $200 & No Sales Tax (some exclusions apply)

📦 Fast 5-9 Days Delivery

❓ Questions? Email us support@discoveranddo.com Call Our Experts 1-833-657-4927

Color

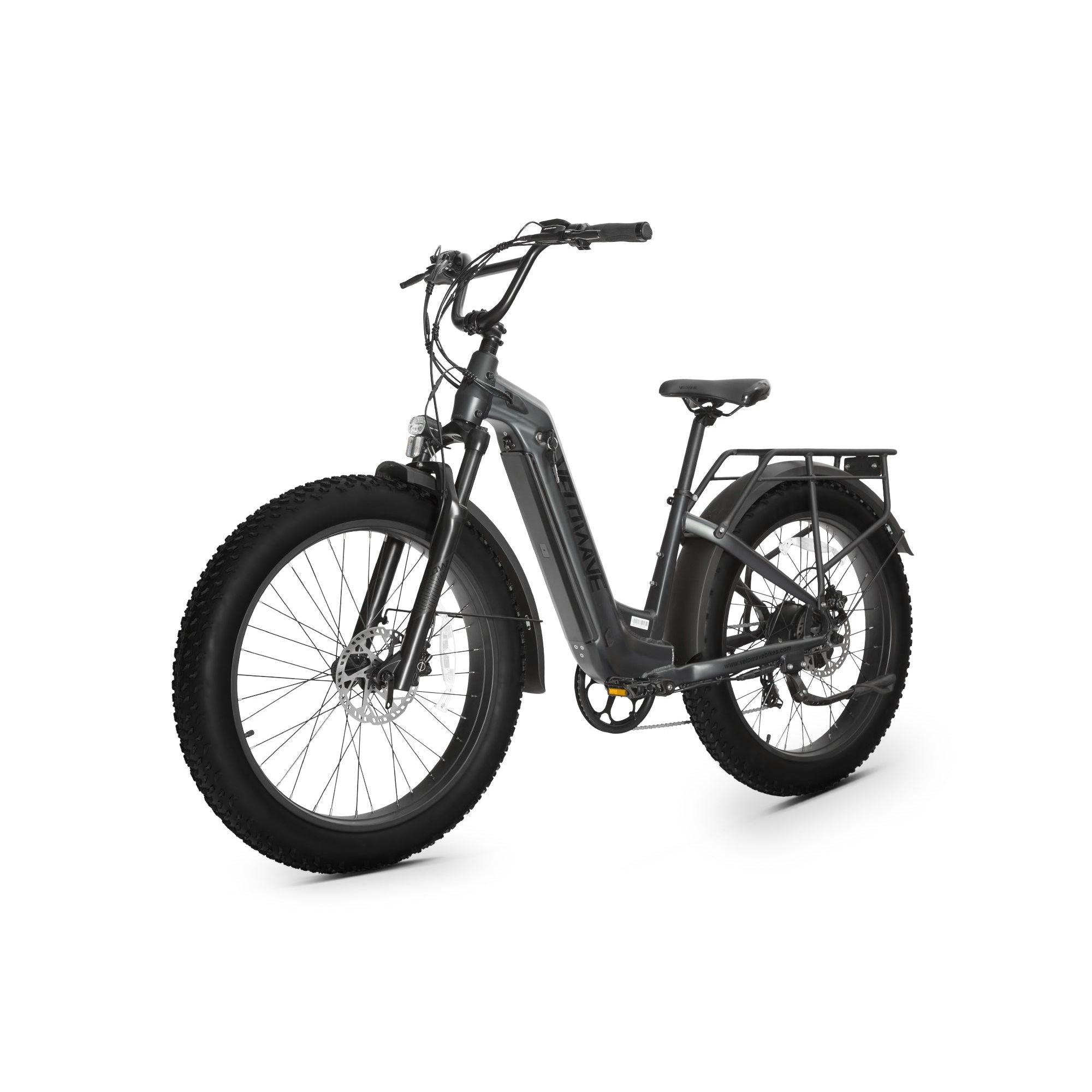

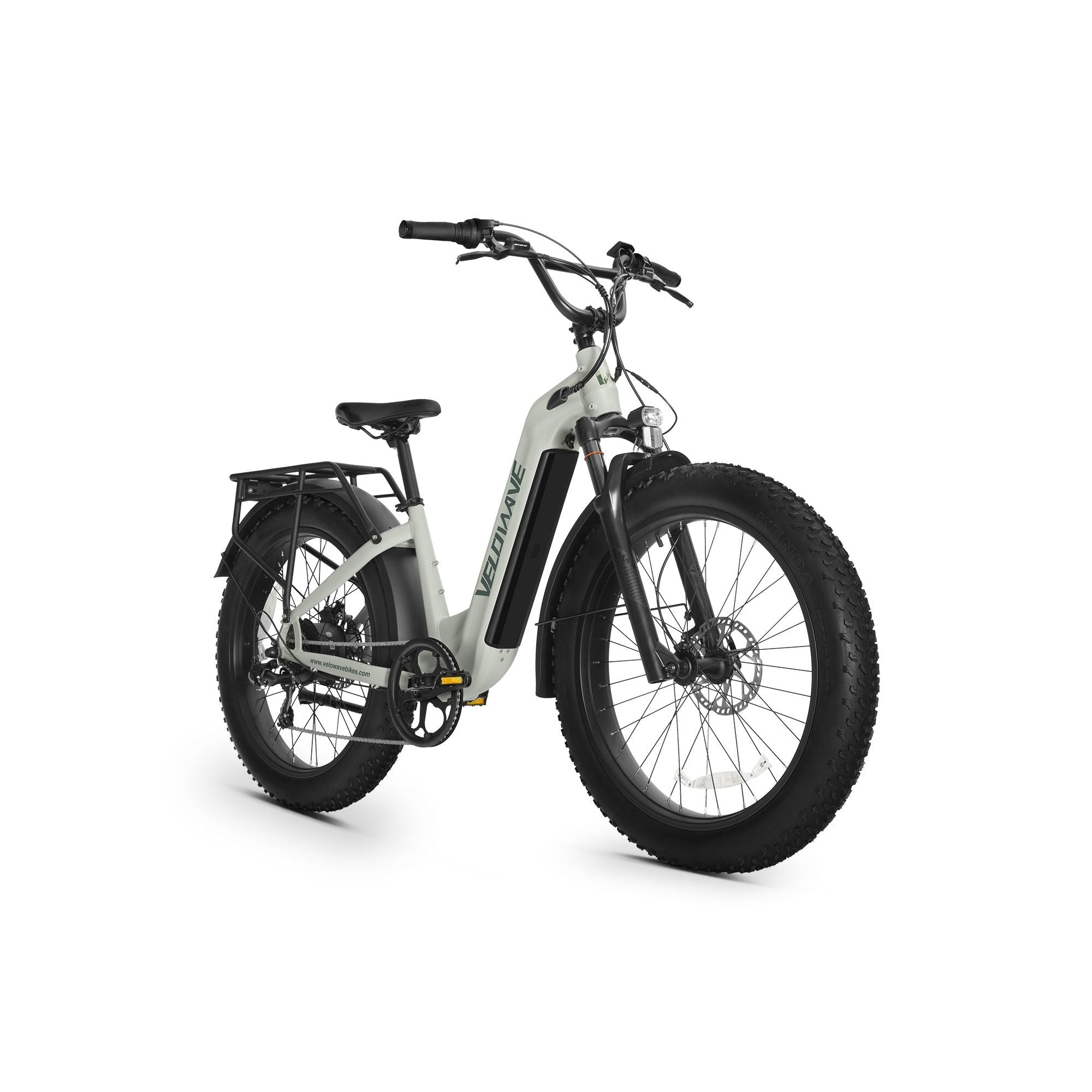

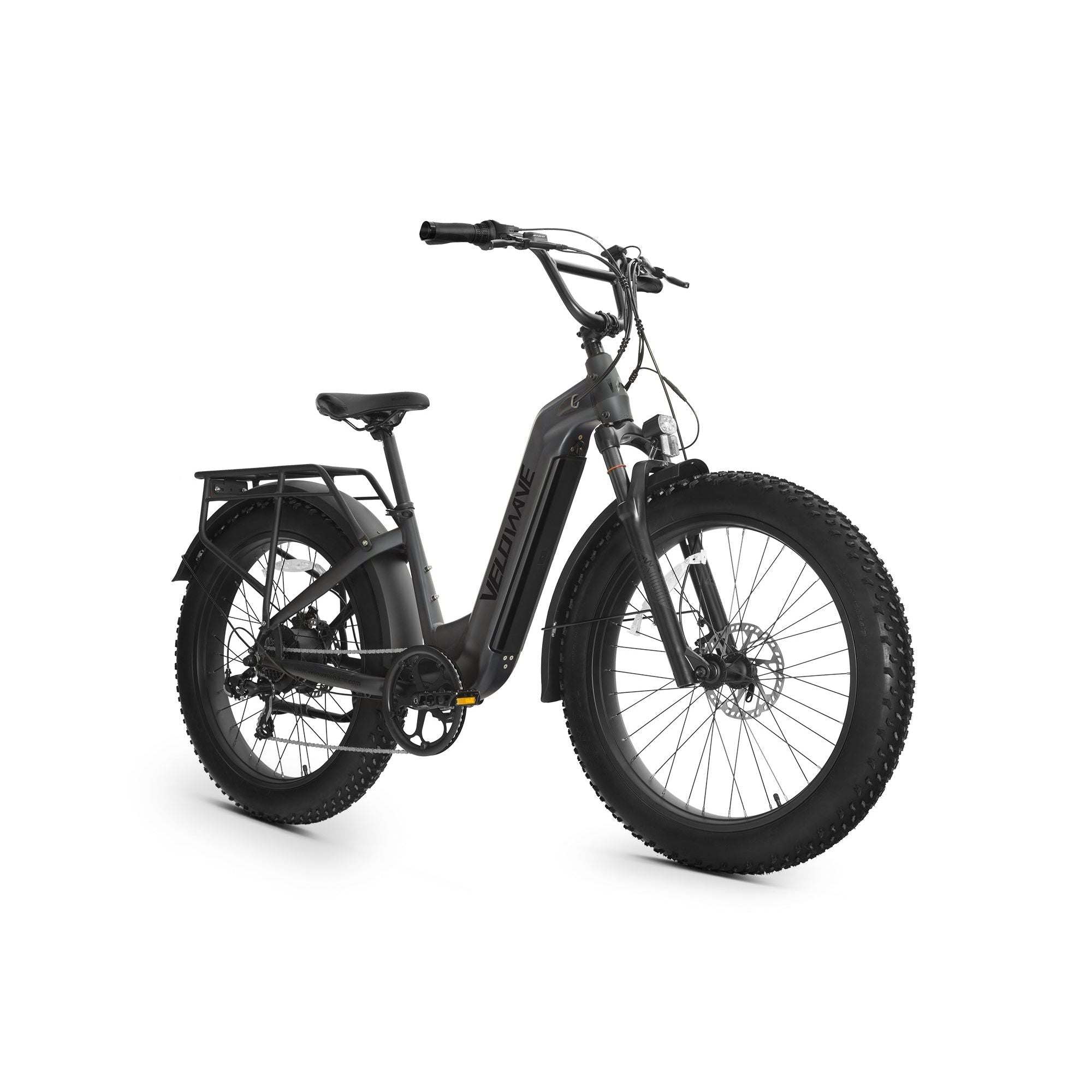

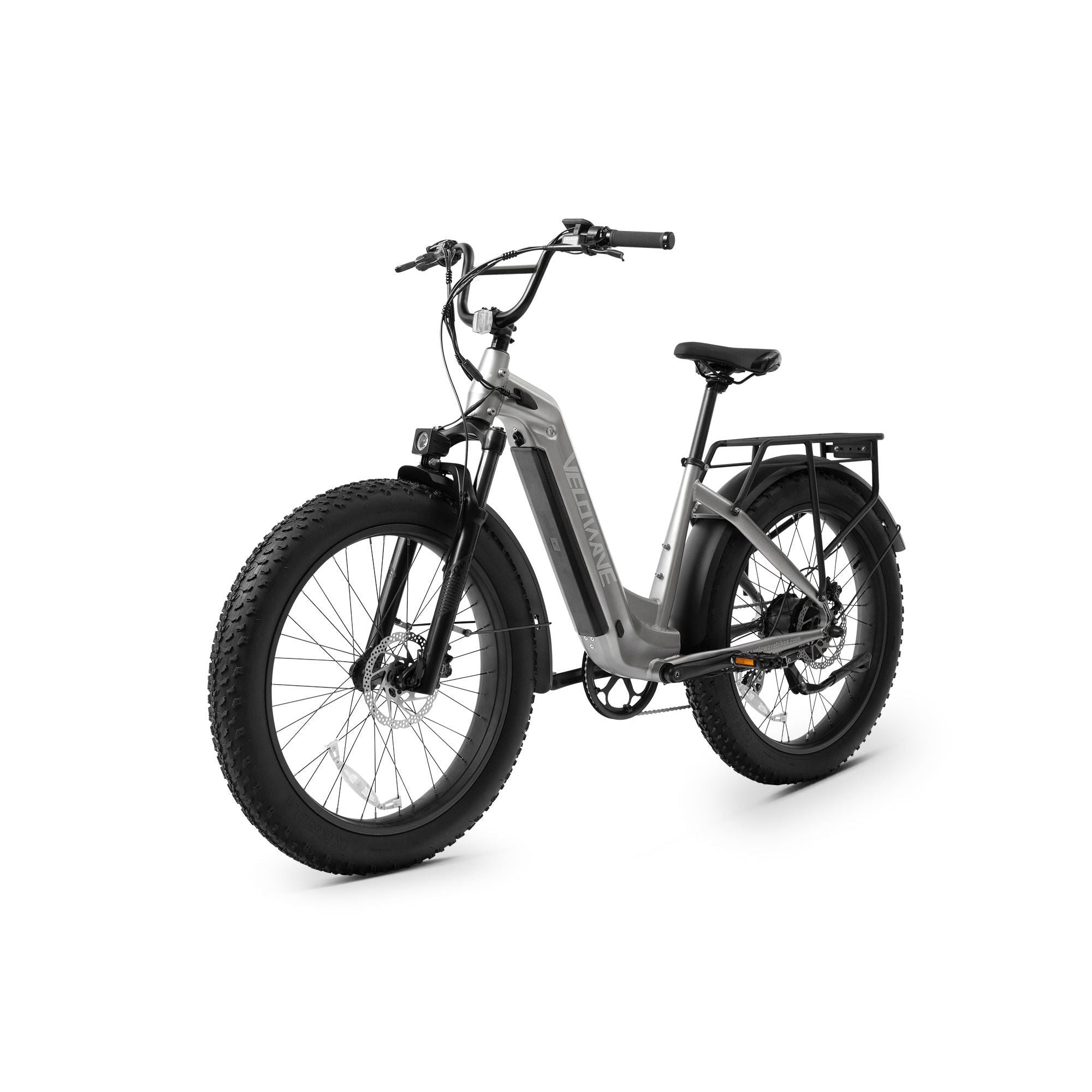

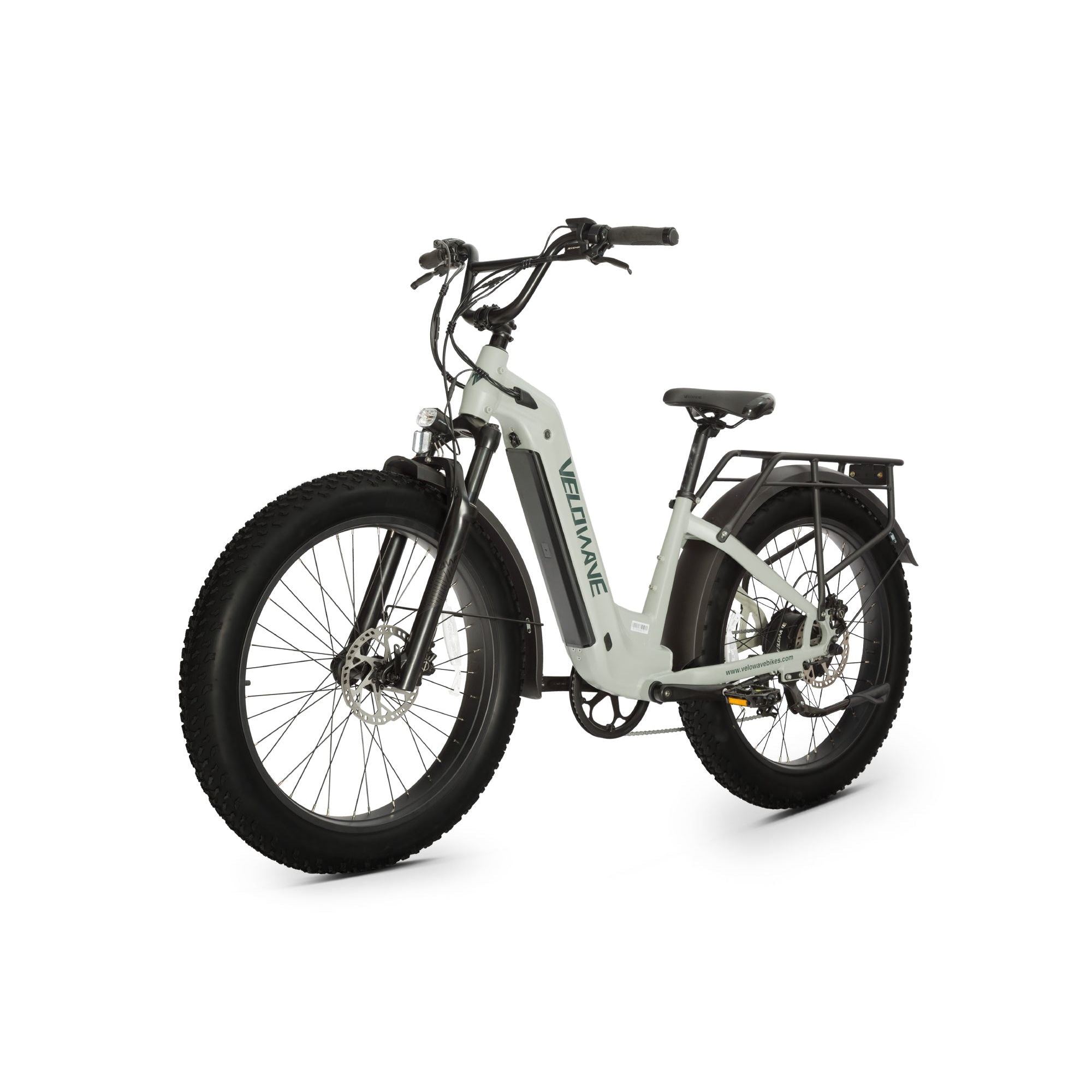

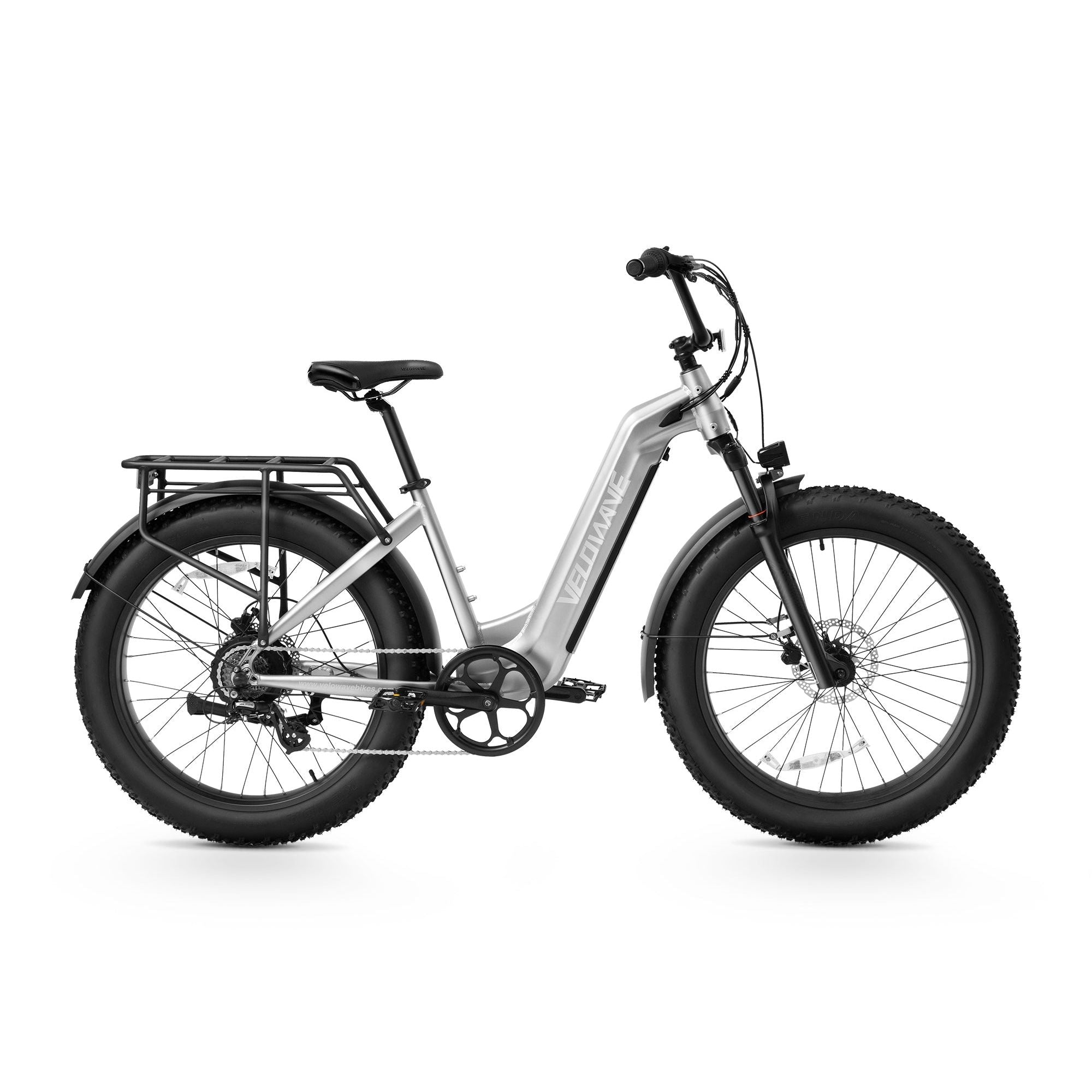

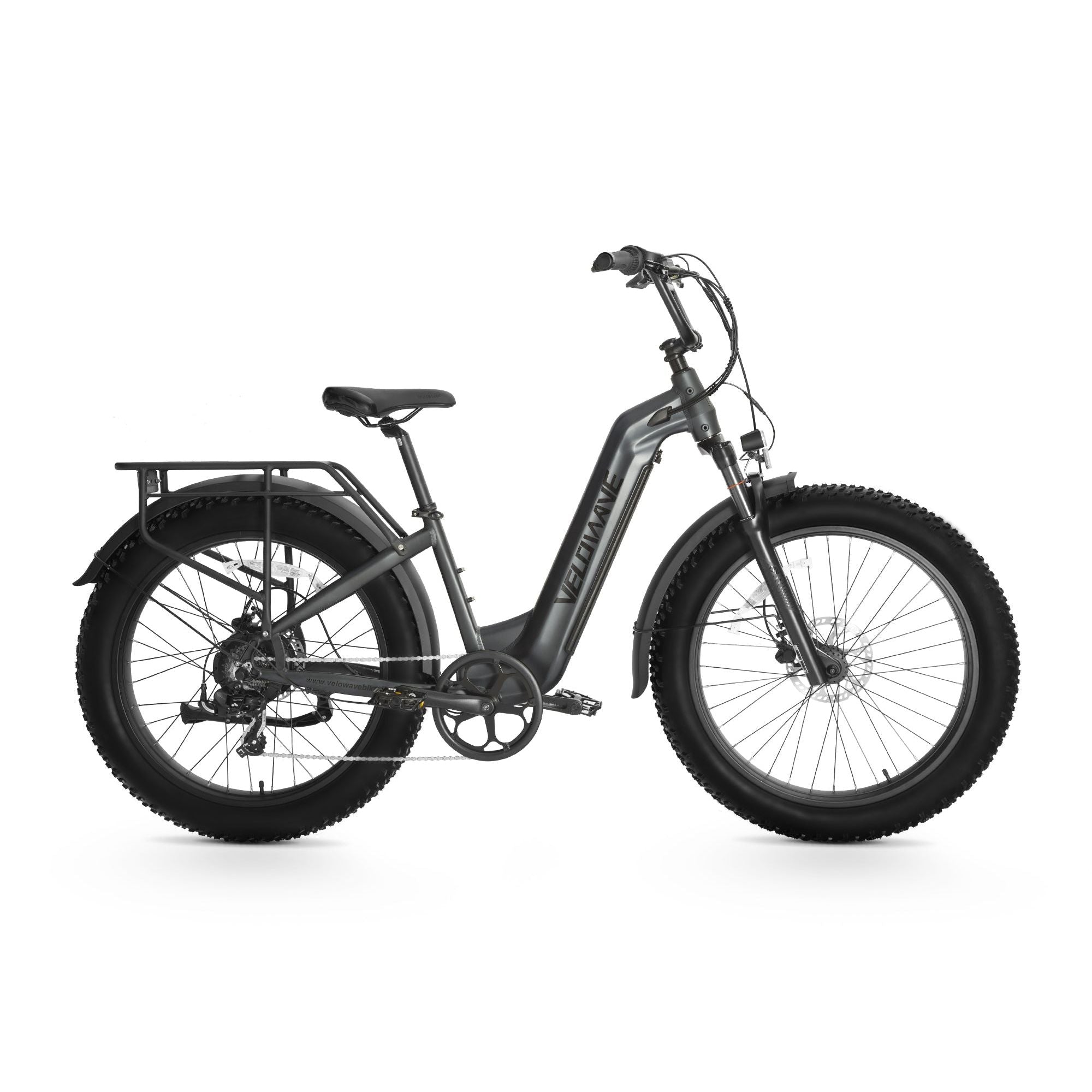

Ranger Step-Thru 2.0 — Electric Step-Through Commuter Bike

Blending power, speed, and everyday convenience, the Ranger Step-Thru 2.0 delivers a top speed of 28 MPH with its dynamic 750W geared hub motor (1200W peak). Powered by a removable 48V 15Ah LG lithium battery, it offers up to 30 miles on throttle alone and an impressive 90 miles on pedal assist at Level 1.

Ride confidently on 4-inch fat tires, providing excellent traction, stability, and smoothness over pavement, gravel, sand, and trails.

The step-through frame improves accessibility, making it an inclusive choice for riders of all ages and abilities, while maintaining a robust 300 lb payload capacity.

A rear rack and full fenders are included at no extra cost—ready for commuting, errands, or weekend adventures right out of the box.

General

Class: Class 3 (Up to 28 MPH with pedal assist)
Max Speed:

28 MPH by pedal assist
20 MPH by throttle

Range:

Avg. 65 miles* on PAS
Up to 90 miles on Level 1
Approx. 30 miles* on throttle
*Range varies based on rider weight (75kg), terrain, weather, and riding style.

Pedal Assist: 5 levels

Frameset

Frame: 6061 Aluminum Alloy, removable battery, internal routing
Fork: Hydraulic suspension fork, 60mm travel, lockout function

Wheels

Rim Material: Aluminum
Rim Size: 26" (36H Front & Rear)
Front Spokes: 13G × 244/246 mm (Black Stainless)
Rear Spokes: 12G × 217/219 mm (Black Stainless)
Tubes: Butyl Rubber, Schrader Valve
Hubs: Disc nutted front & rear axles
Tires: Kenda fat tires
Tire Size: 26" × 4.0"

E-System

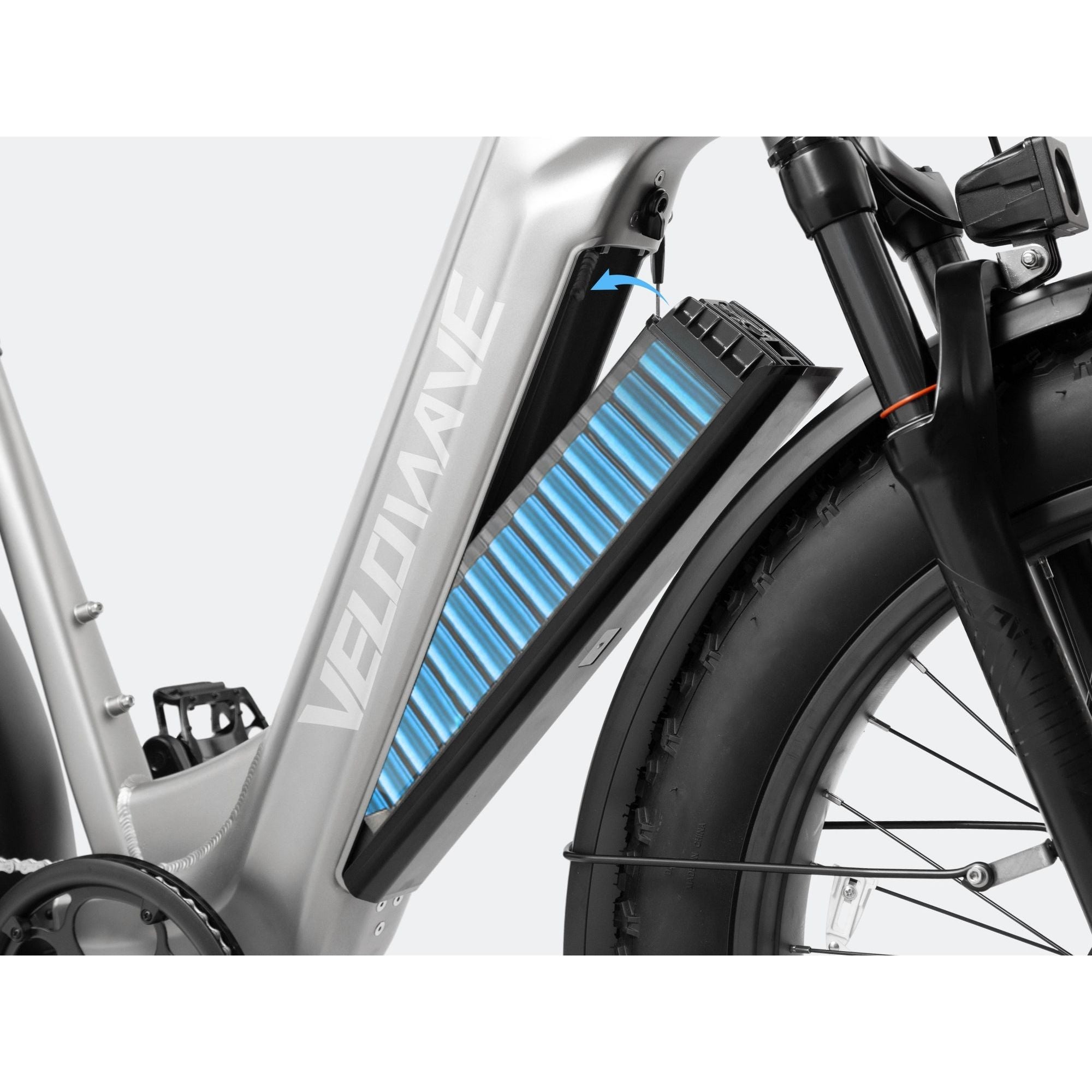

Battery: 48V 15Ah (720Wh) removable internal battery, LG cells
Charger: 48V 2A, approx. 8-hour charge time, Aviation Connector, UL Listed

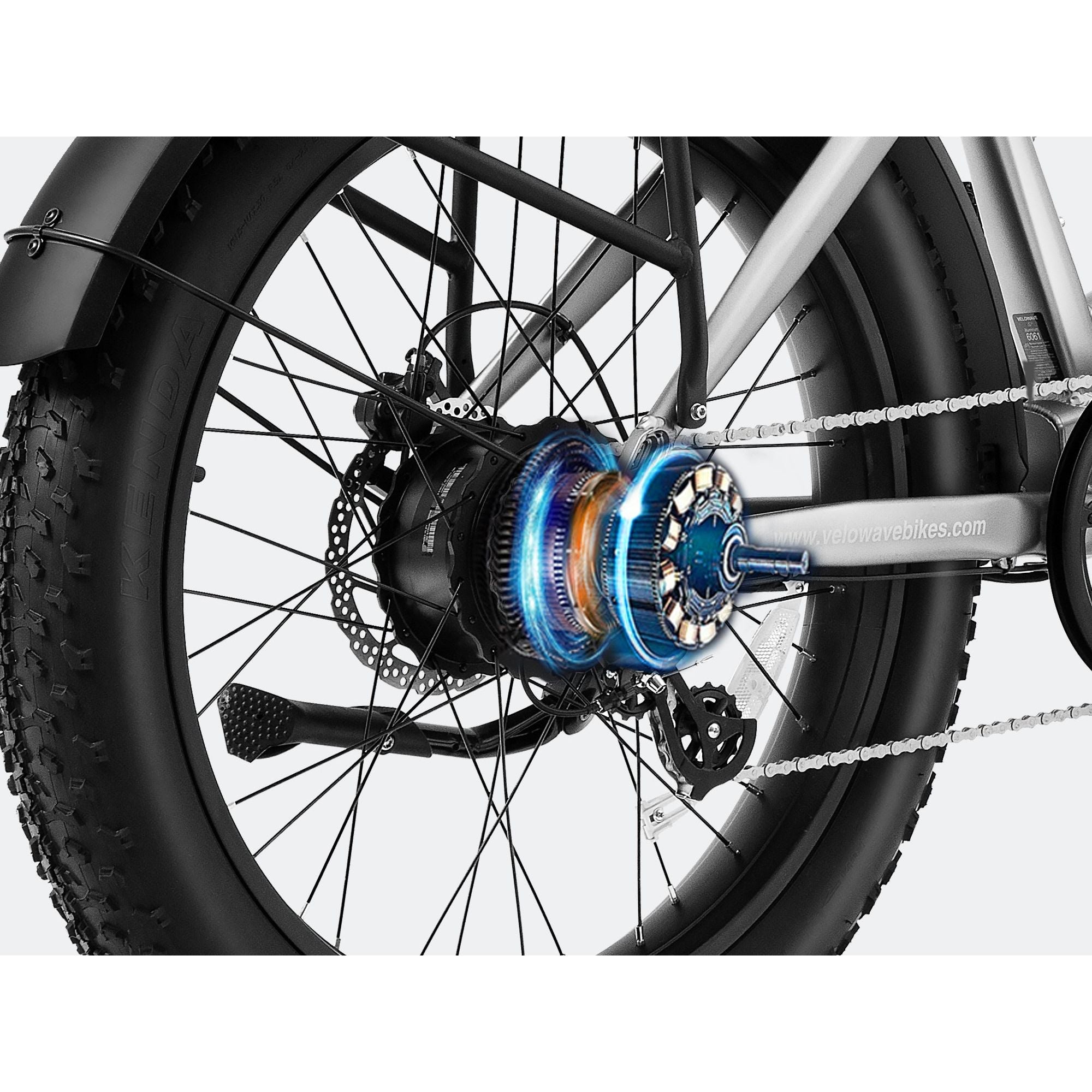

Motor: 750W geared hub motor (Peak 1200W), Max torque 80 Nm
Controller: 48V 25A Peak

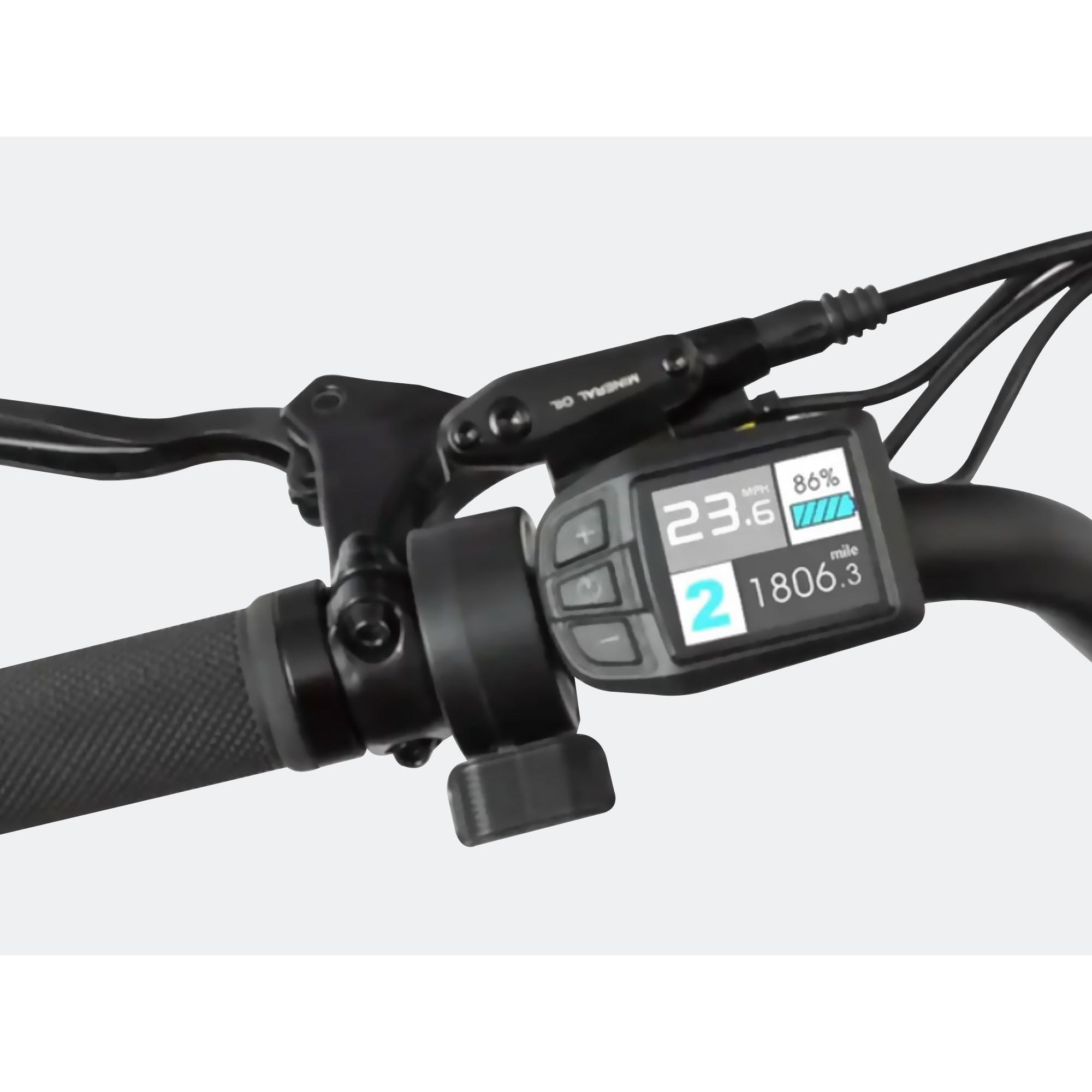

Display: Multifunction color-screen display
Pedal Assist Sensor: Speed sensor
Throttle: Thumb throttle
Front Light: 48V 10W LED, 30 LUX

Drivetrain

Shifter: Shimano 7-Speed RevoShift
Rear Derailleur: Shimano ARDTY500D 7-Speed, Long Cage
Crankset: 170 mm crank with 52T chainring
Freewheel: Shimano 14–28T, 7-Speed
Pedals: Alloy platform pedals
Chain: KMC, 124-link, 7-Speed

Components

Saddle: Comfortable wide saddle
Seatpost: Forged alloy, Ø30.4 × 350 mm
Seat Clamp: Ø35 mm quick release
Stem:

Bar bore: Ø31.8 mm
Clamp I.D.: Ø28.6 mm
Height: 70 mm
Rise: ±7°

Handlebar: Aluminum, Ø31.8 mm, width 720 mm
Headset: Sealed bearing headset
Grips: Nylon lock-on ergonomic grips
Brakes: Hydraulic disc brakes (180 mm rotors) with power-cutoff function
Brake Rotors: 180 mm, 1.9 mm thick
Kickstand: Rear-mount alloy side stand
Fenders: Plastic, 26" × 110 mm
Rear Rack: Aluminum alloy rear rack

Weight

Net Weight: 34.9 kg (76.94 lbs) including battery
Gross Weight: 45.6 kg (100.53 lbs)
Battery Weight: 4 kg (8.82 lbs)
Payload Capacity: 136 kg (300 lbs)

Size

Product Size: 1930 × 740 × 1210 mm
Package Size: 1570 × 330 × 900 mm
