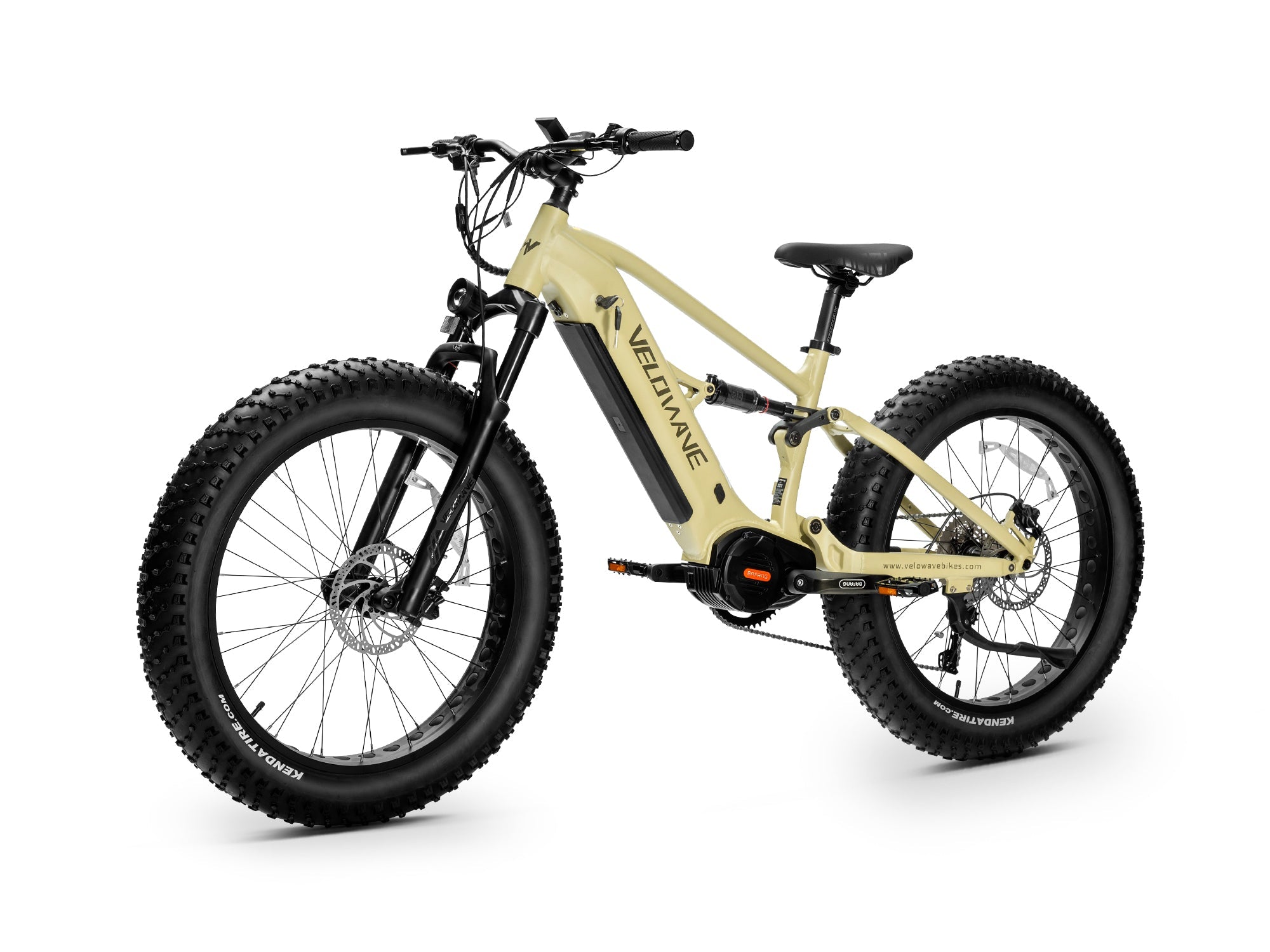

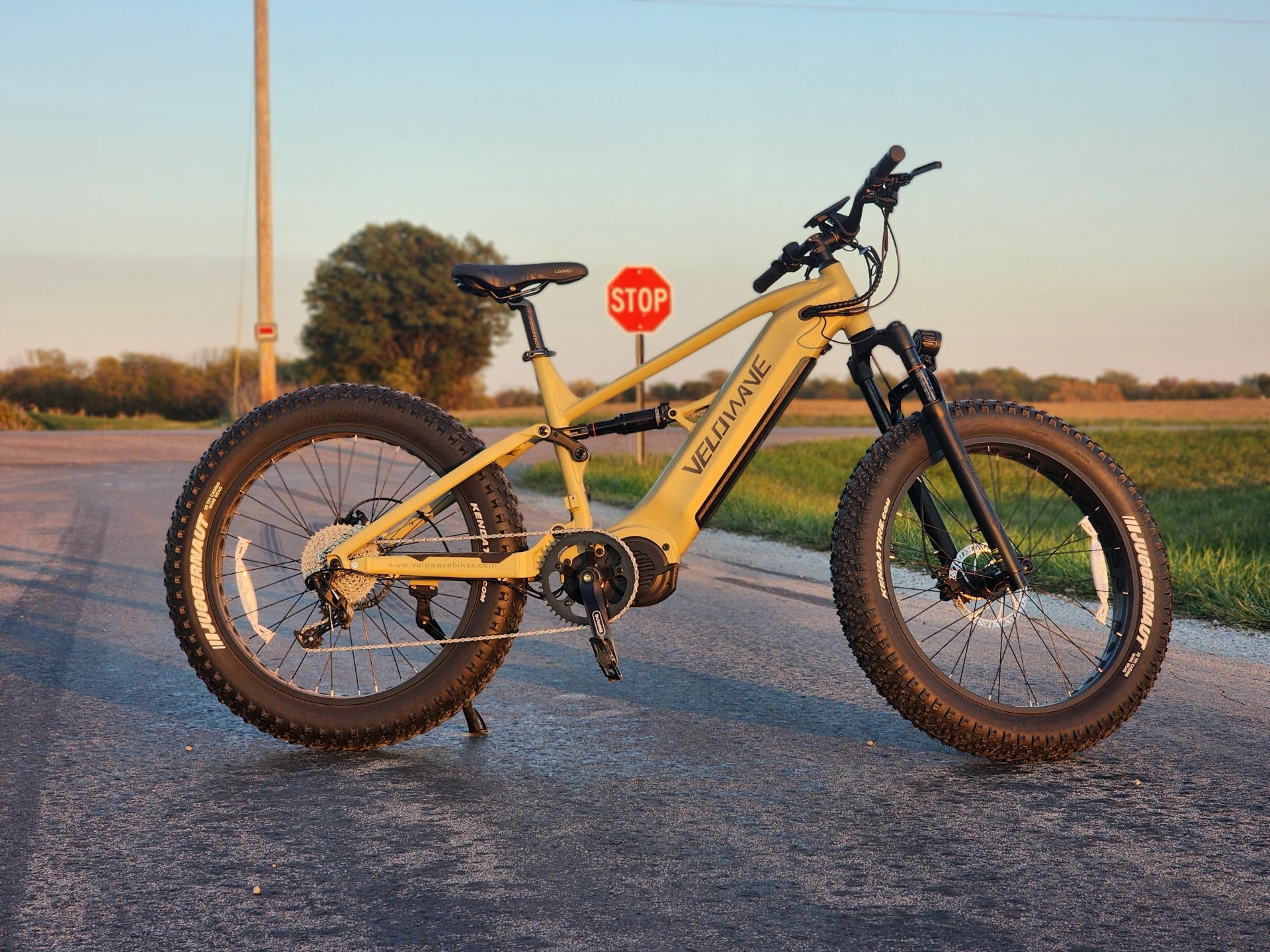

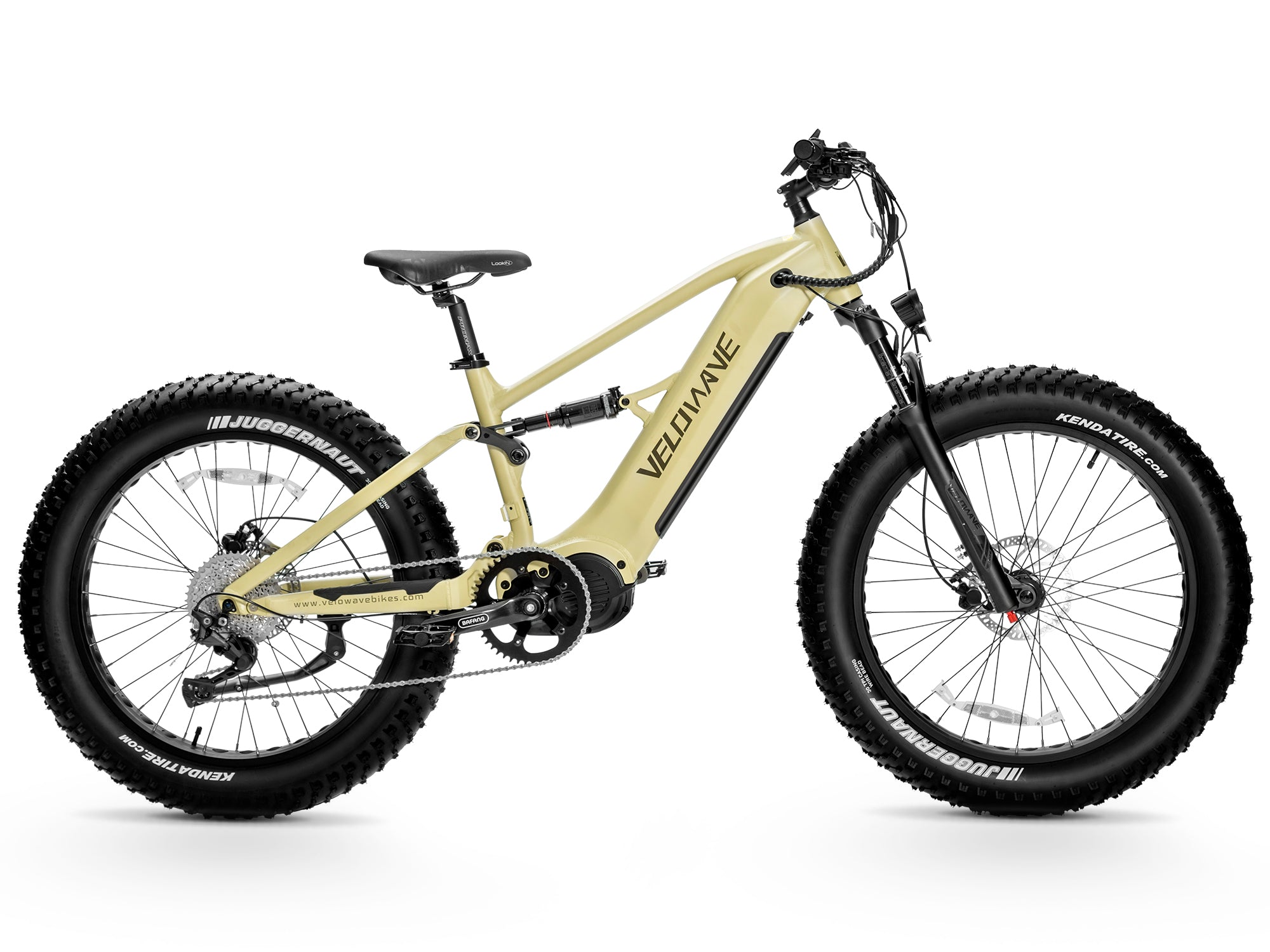

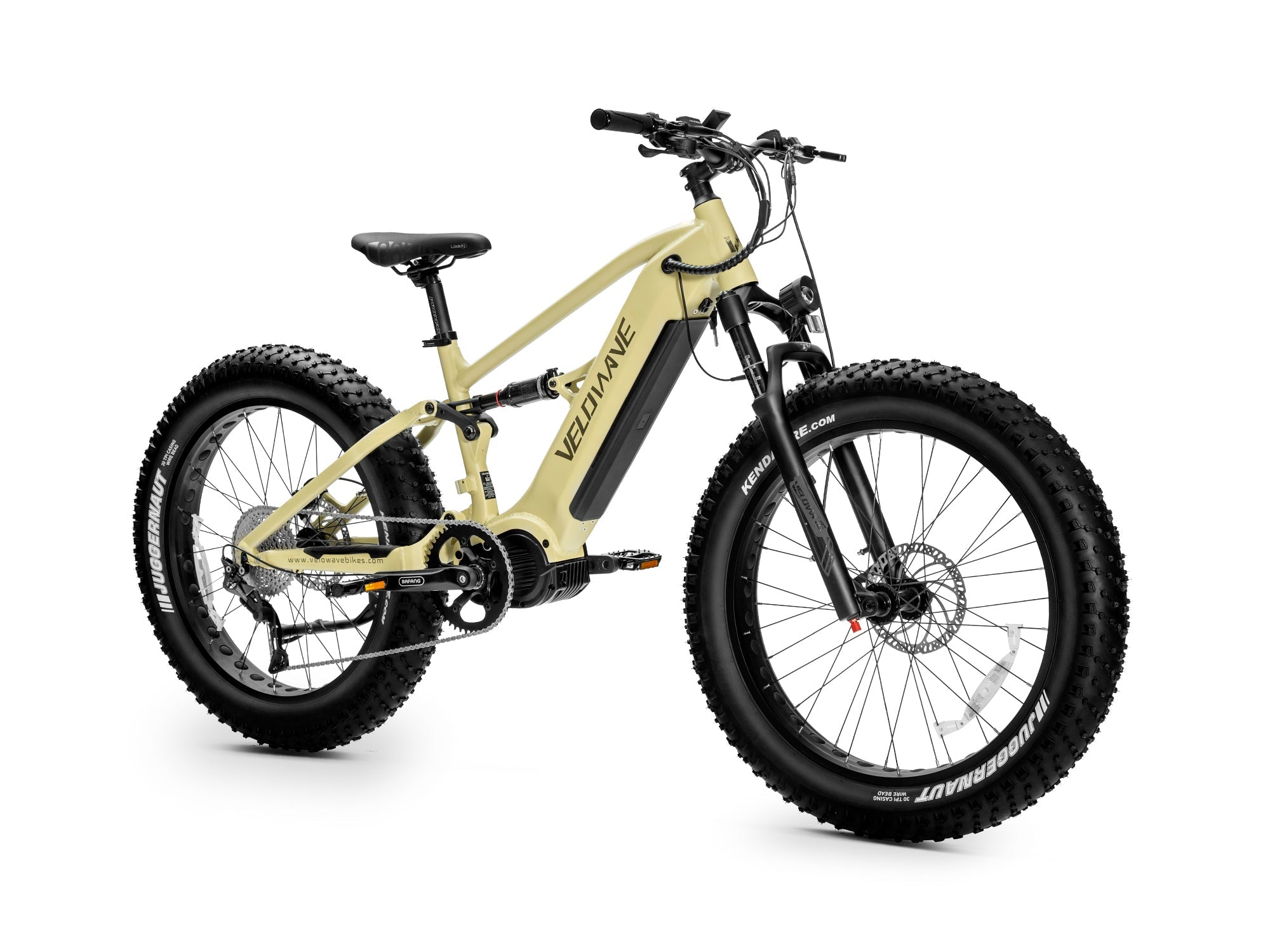

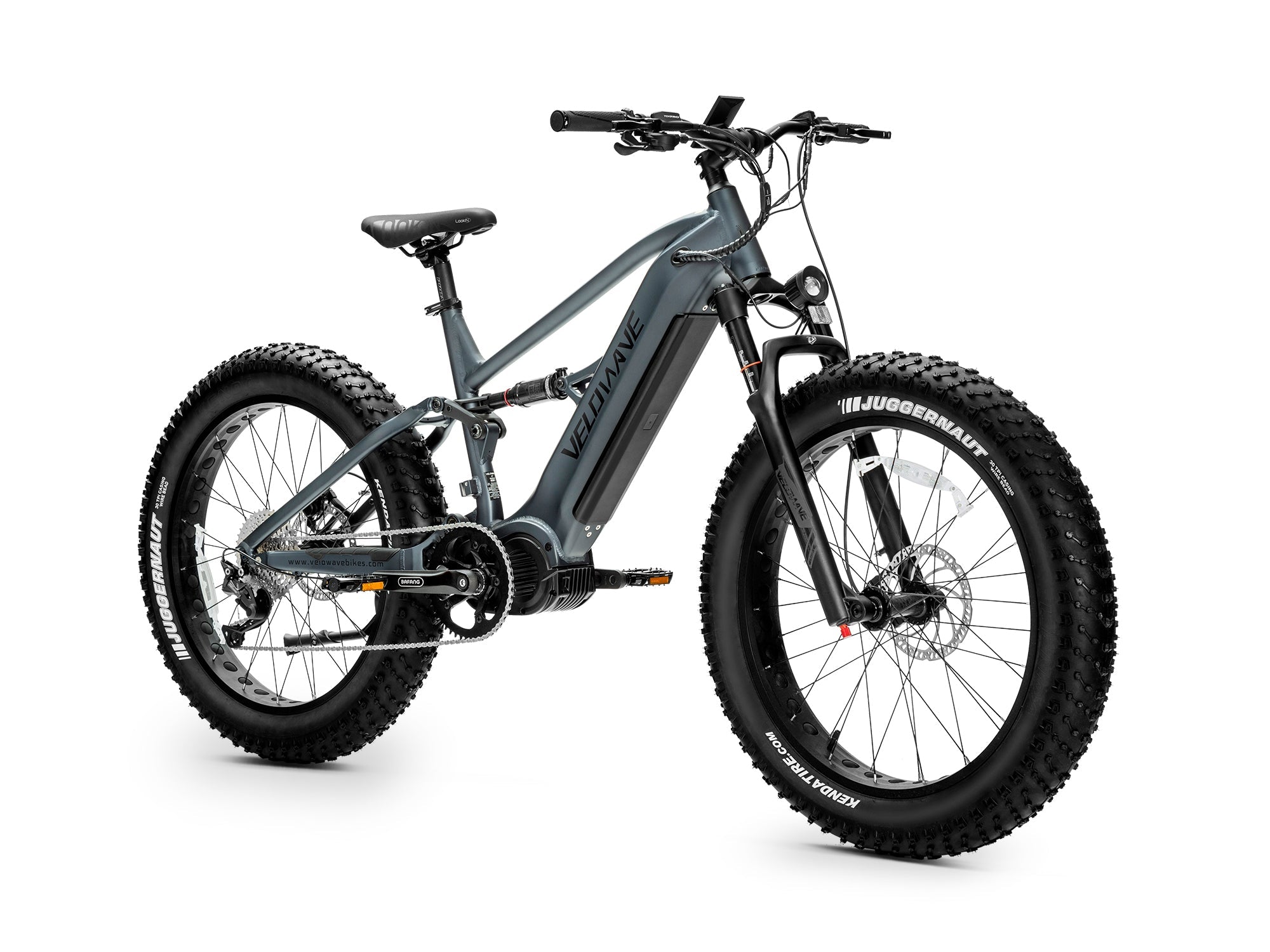

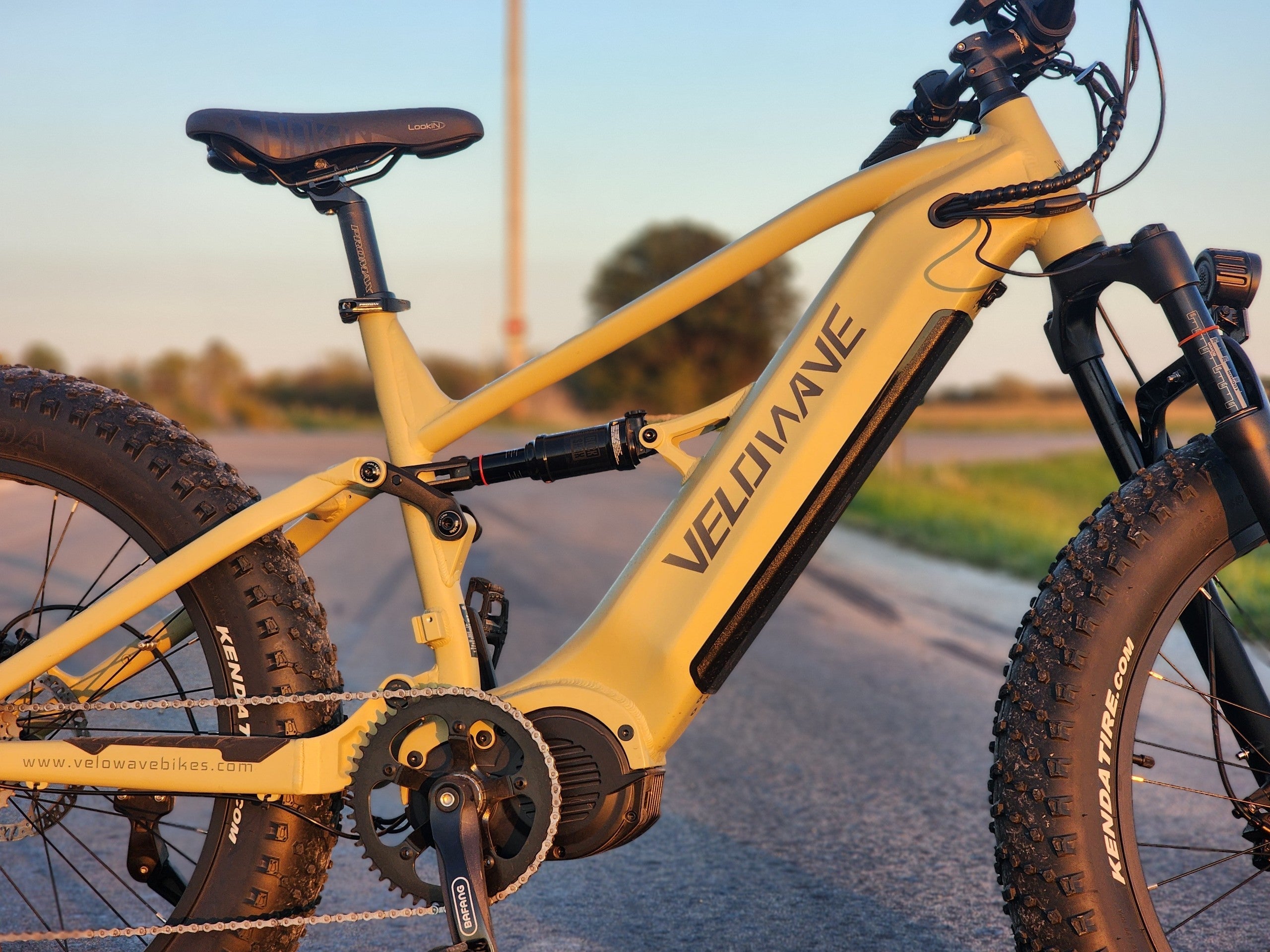

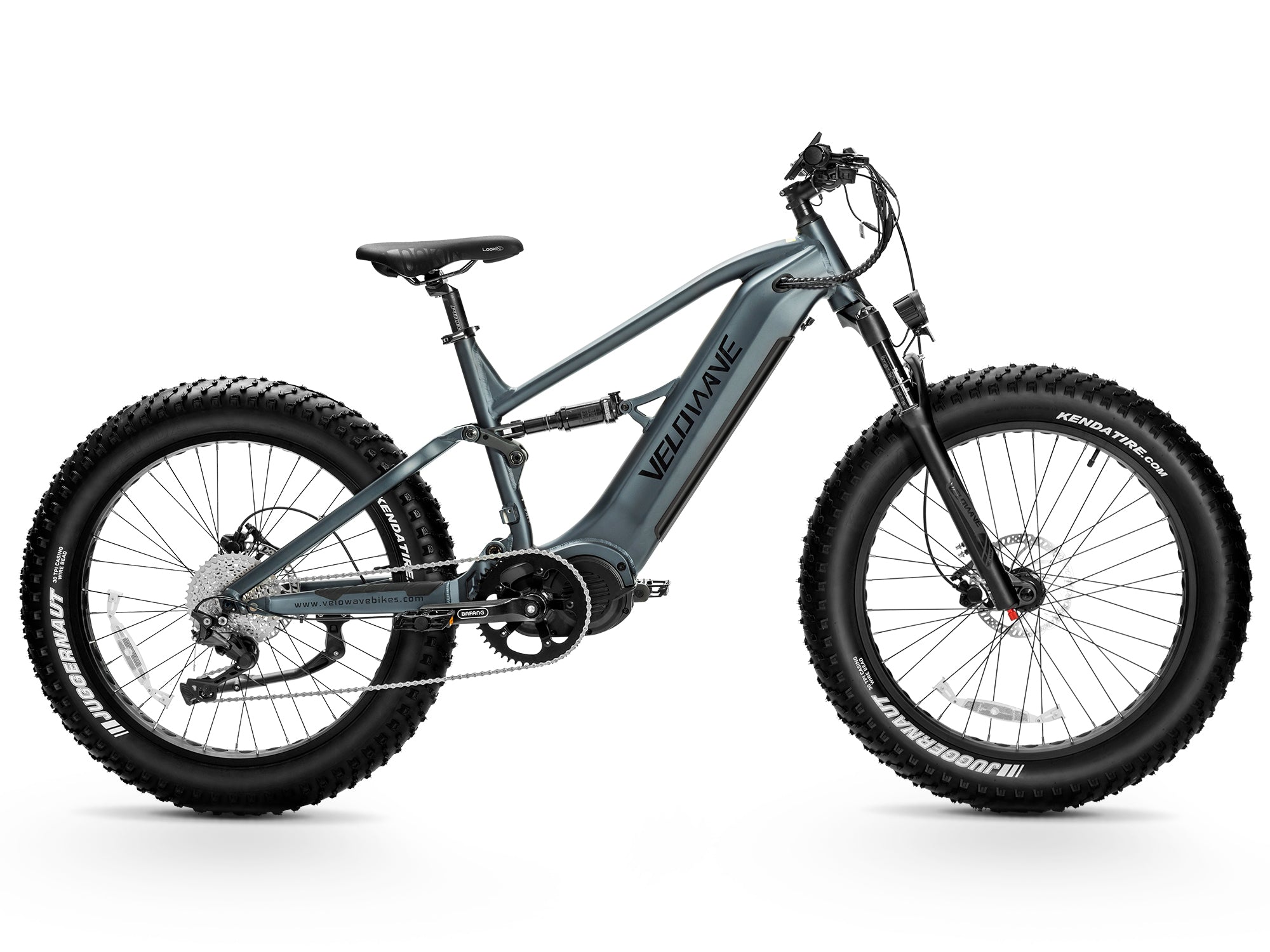

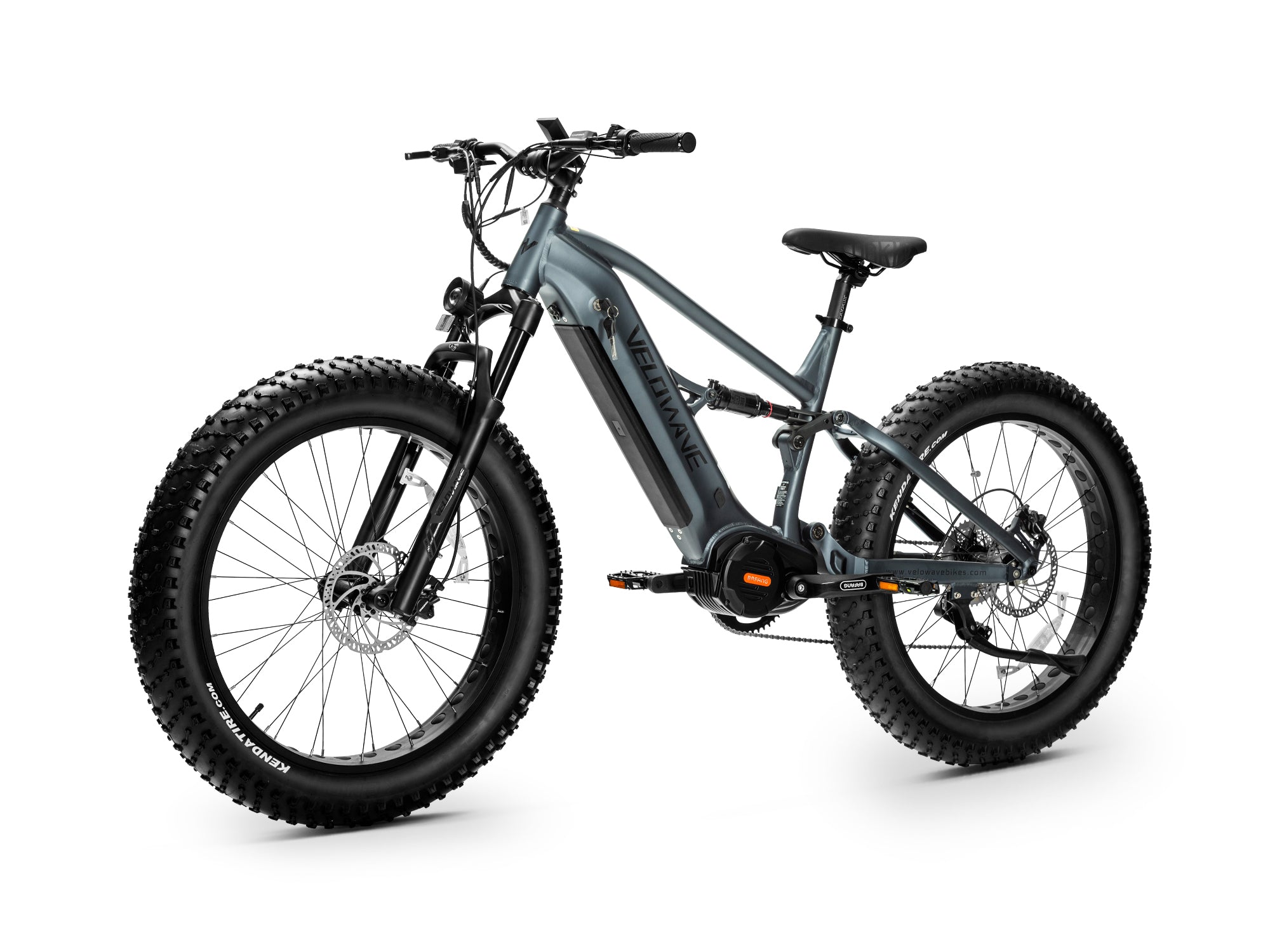

Brawny XM MTB — Mountain Electric Bike

Unleash your potential and conquer any terrain with the Brawny XM, a high-performance electric bike built for riders who refuse to settle for limits. Crafted from lightweight yet rugged 6061 aluminum alloy, the Brawny XM features a sleek, integrated frame paired with advanced front and rear suspension—delivering 139 mm of plush travel to soak up bumps, rocks, and rough terrain with ease.

Powered by a commanding 1000W motor (1200W peak) and a long-range 48V 20Ah LG battery, the Brawny XM blends brute strength with refined control. Whether you're exploring backcountry trails, sandy beaches, snowy paths, or long urban routes, this fat-tire e-bike delivers smooth torque, confident traction, and incredible comfort with every ride.

Technical Specifications

General

Class: Class 3 e-bike (Up to 28 mph with pedal assist)
Max Speed: 28 MPH (Pedal Assist) / 20 MPH (Throttle)
Range: Up to 85 miles (PAS) / 60 miles (Throttle)*
Tested at 75 kg load, 30°C, PAS level 1, level terrain. Actual range varies based on conditions.

Frameset

Frame: 6061 Aluminum Alloy with internal battery
Suspension Travel: 139 mm full-frame travel
Fork: Air suspension, 100 mm travel, lockout

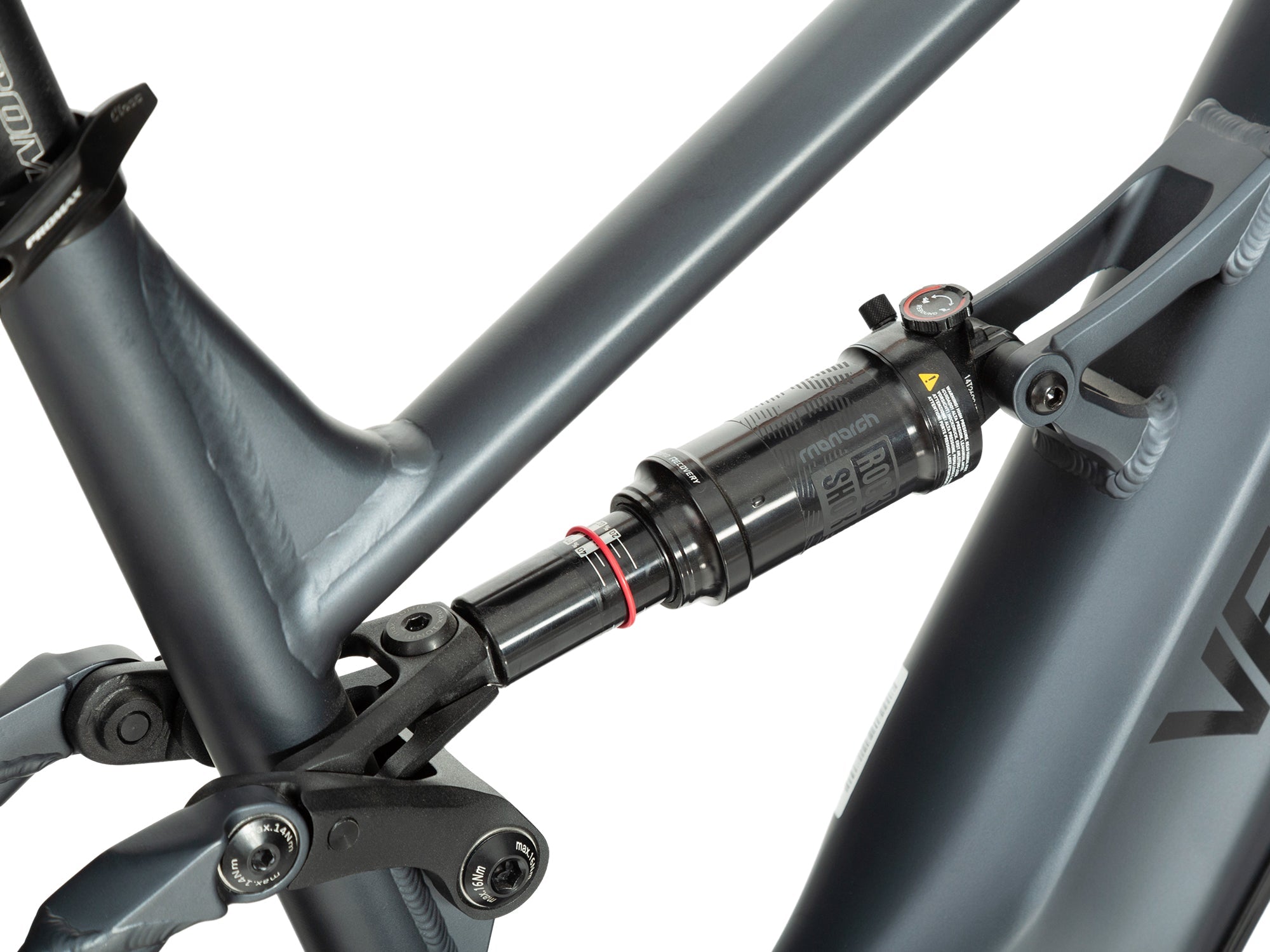

Rear Shock: RockShox RS-MNR-R-C4, 184×44 mm, 44 mm travel, external rebound adjustment

Wheels

Rims: Aluminum 26", 36H
Spokes: Black stainless steel, 13G (255/257 mm)
Hubs: Disc hubs with nutted axles
Tires: Kenda 26" × 4.8" fat tires

E-System

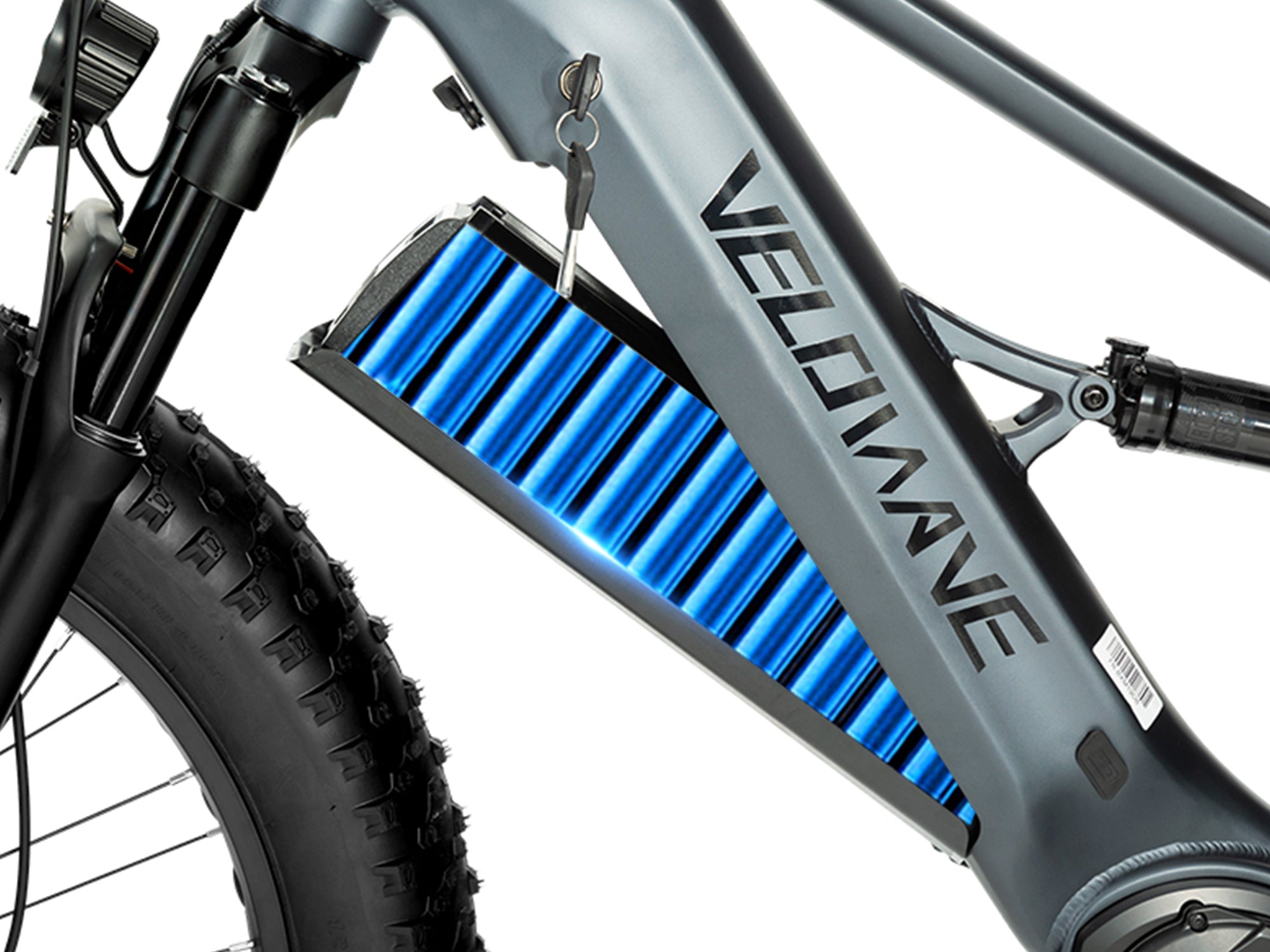

Battery: 48V 20Ah (960Wh) removable internal lithium-ion with LG cells
Charger: 48V 3A (approx. 7 hours charging)

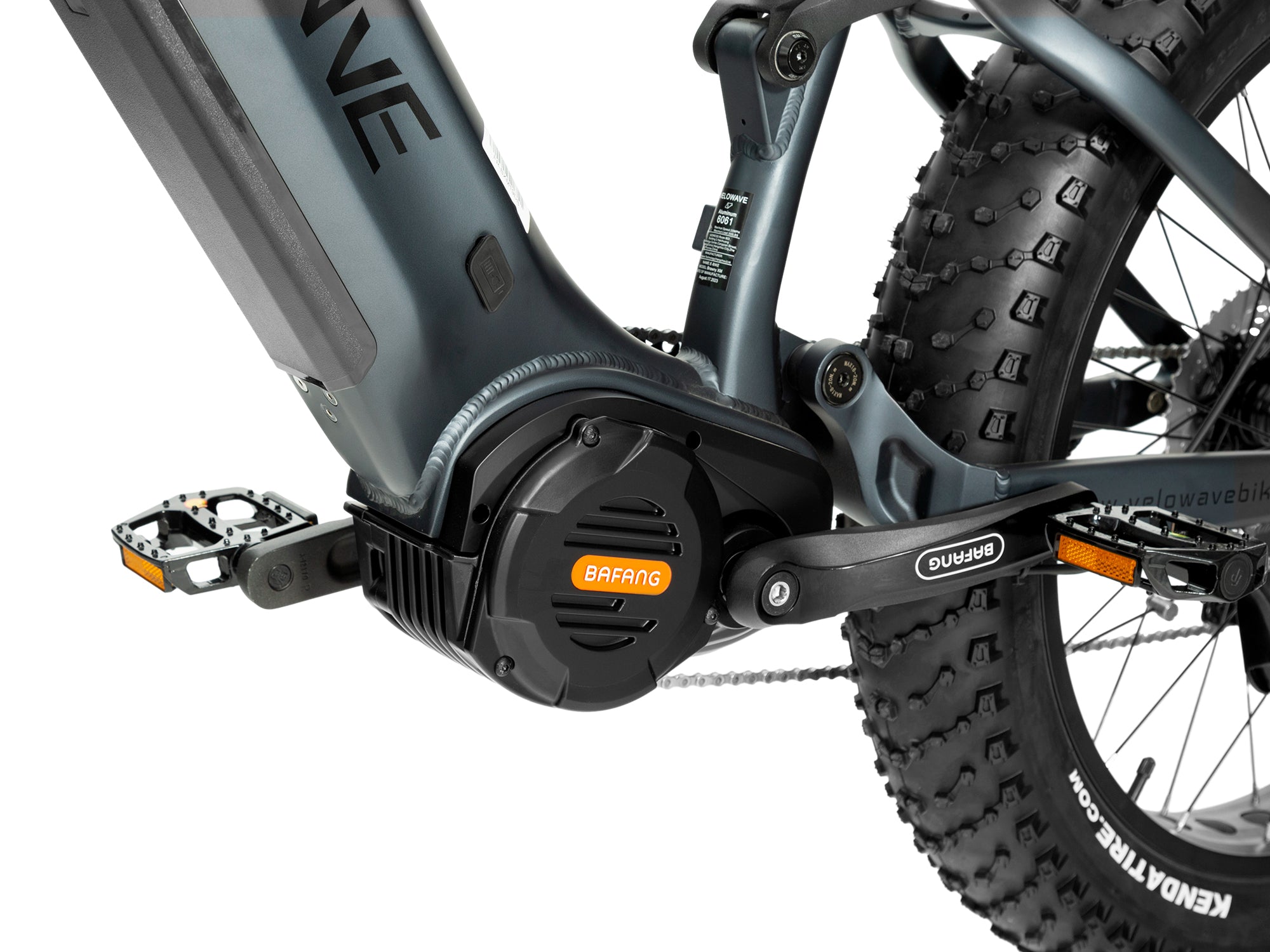

Motor: 1000W (Peak 1200W), 160 Nm torque
Display: TFT Smart Color Display with backlight
Pedal Assist: 6 levels
Sensor: Torque sensor for natural, responsive assistance
Throttle: On-demand throttle from a complete stop
Lights:
- Front: 48V LED, 80 LUX
- Rear: Blinking safety light

Drivetrain

Shifter: Shimano 10-speed thumb shifter
Crankset: 170 mm with 48T chainring
Cassette: Shimano 11–42T, 10-speed
Chain: KMC 134-link, 10-speed
Pedals: Alloy platform

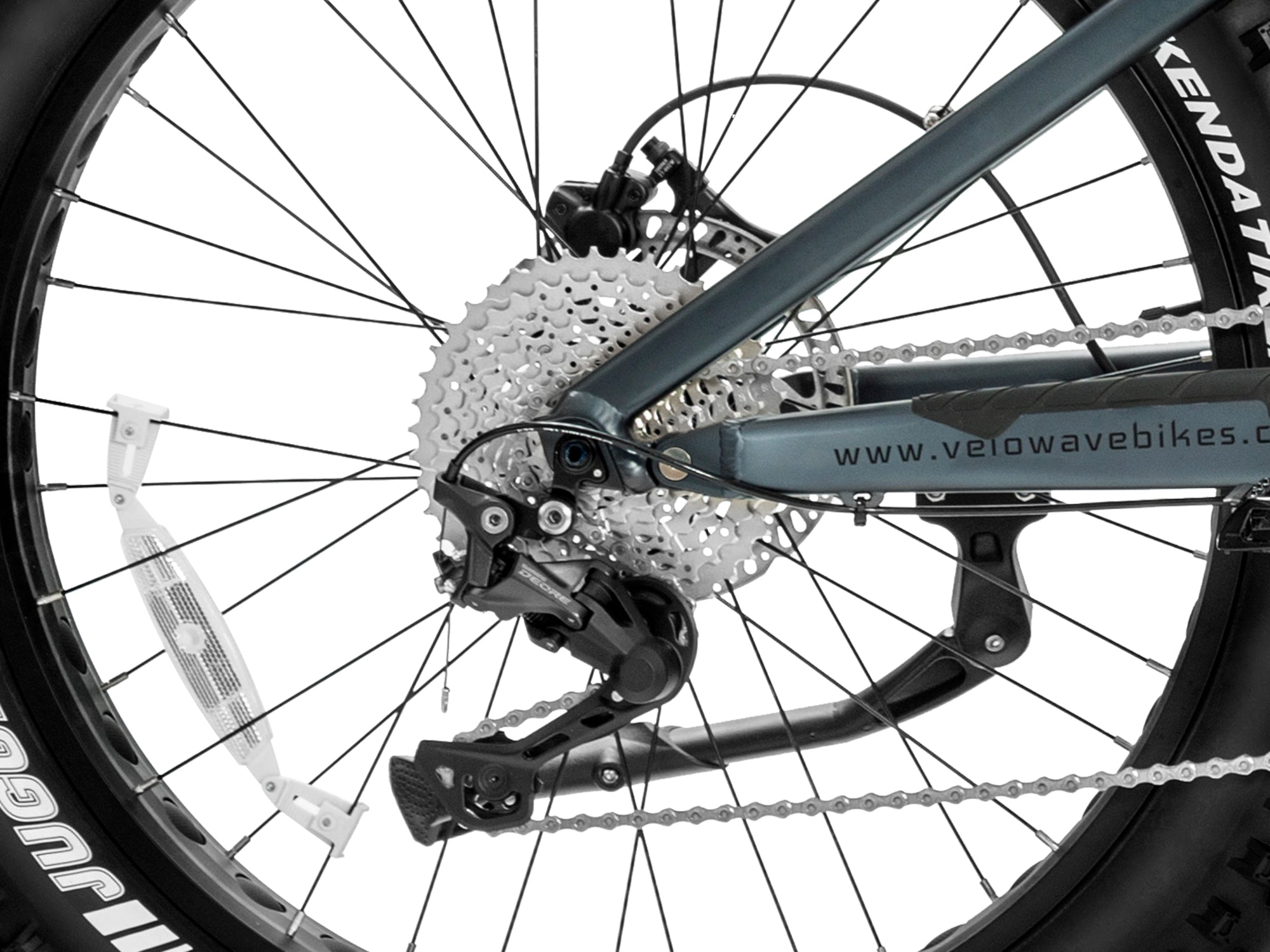

Rear Derailleur: Shimano Deore RD-M4120 (10-speed)

Components

Saddle: Comfortable wide saddle
Seatpost: Forged alloy, Ø31.6 × 300 mm
Seat Clamp: Ø38.1 mm quick-release
Stem: Ø31.8 bar bore, Ø28.6 clamp, 60 mm height, 6° rise
Handlebar: Aluminum, Ø31.8, 740 mm width
Headset: Sealed bearing
Grips: Ergonomic comfort grips
Brakes: Tektro hydraulic disc brakes with 180 mm rotors and power-cutoff
Kickstand: Rear-mount included
Fenders: Not included
Rear Rack: Not included

Weight

Net Weight: 82 lbs (37.2 kg) including battery
Gross Weight: 111 lbs (50.5 kg)
Battery Weight: 11.4 lbs (5.15 kg)
Max Load Capacity: 385 lbs (175 kg including cargo)

Size

Bike Dimensions: 2100 × 1158 × 745 mm
Box Dimensions: 1700 × 350 × 900 mm
