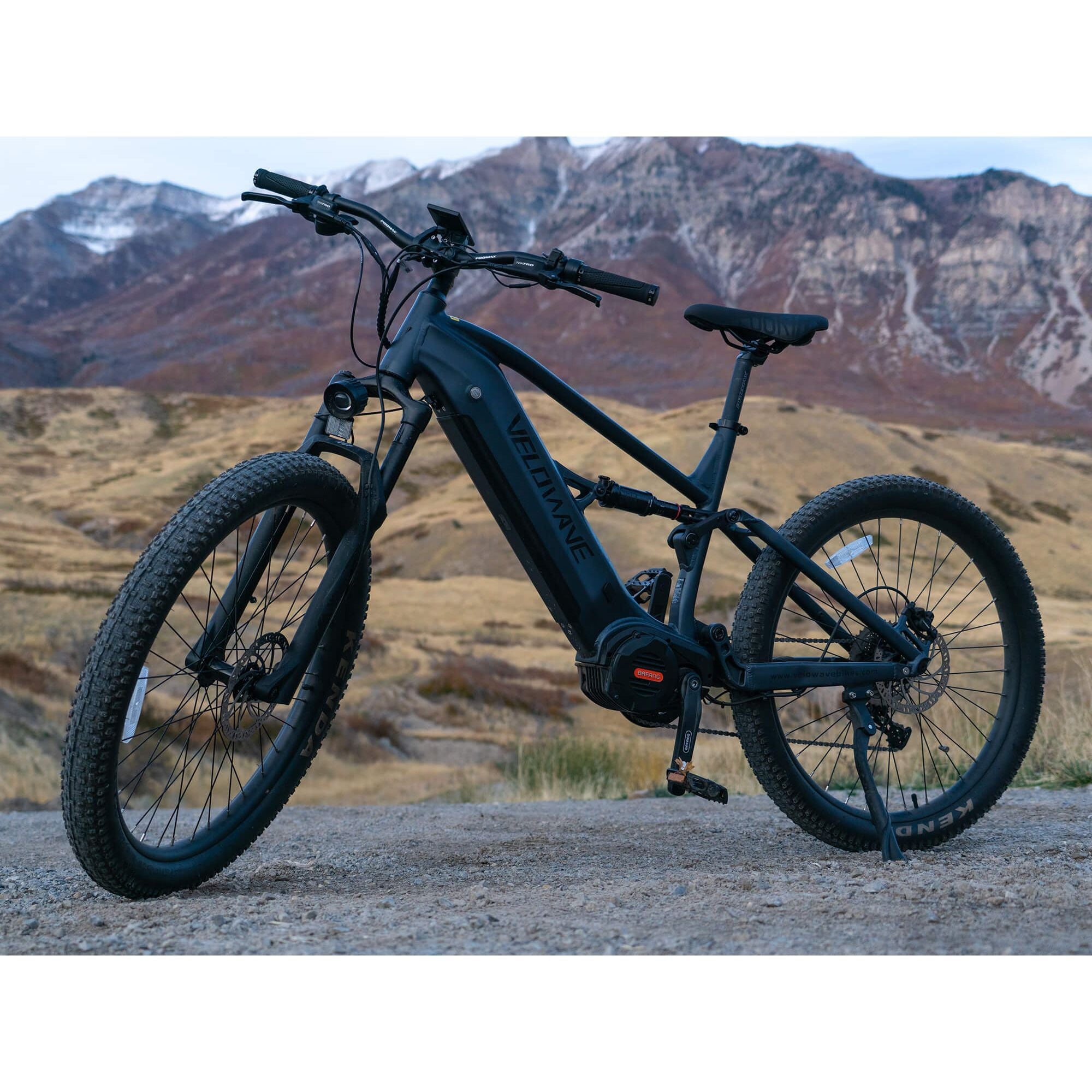

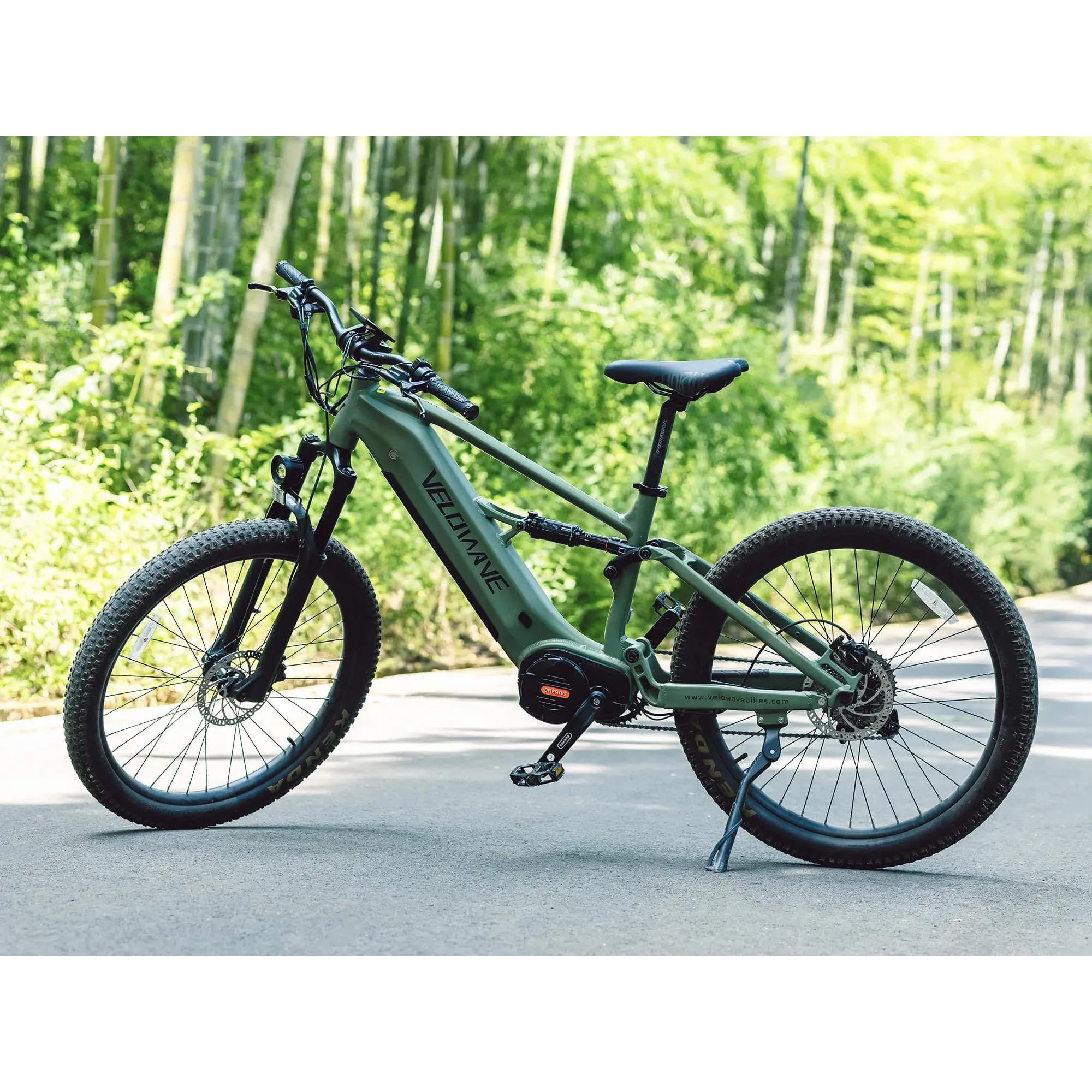

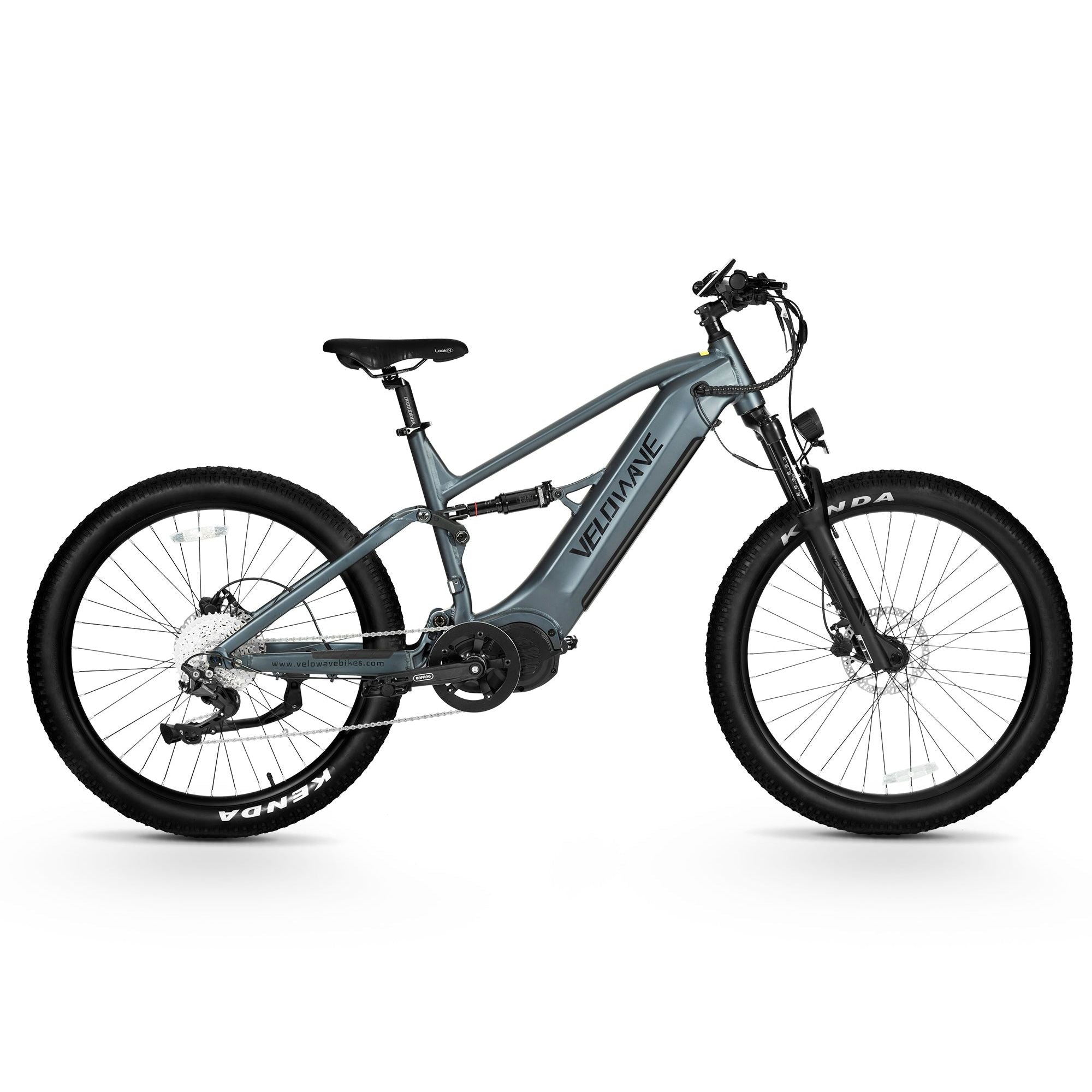

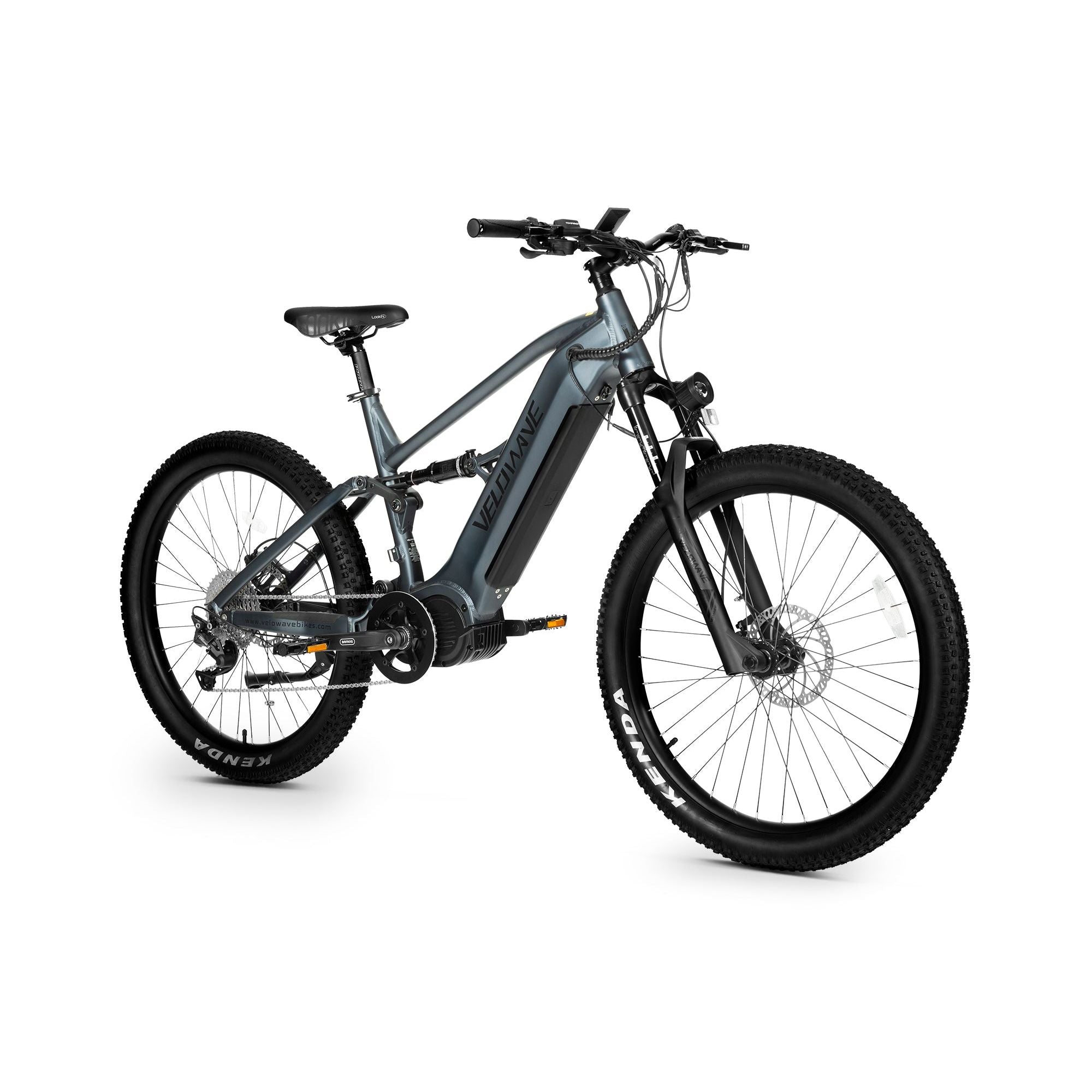

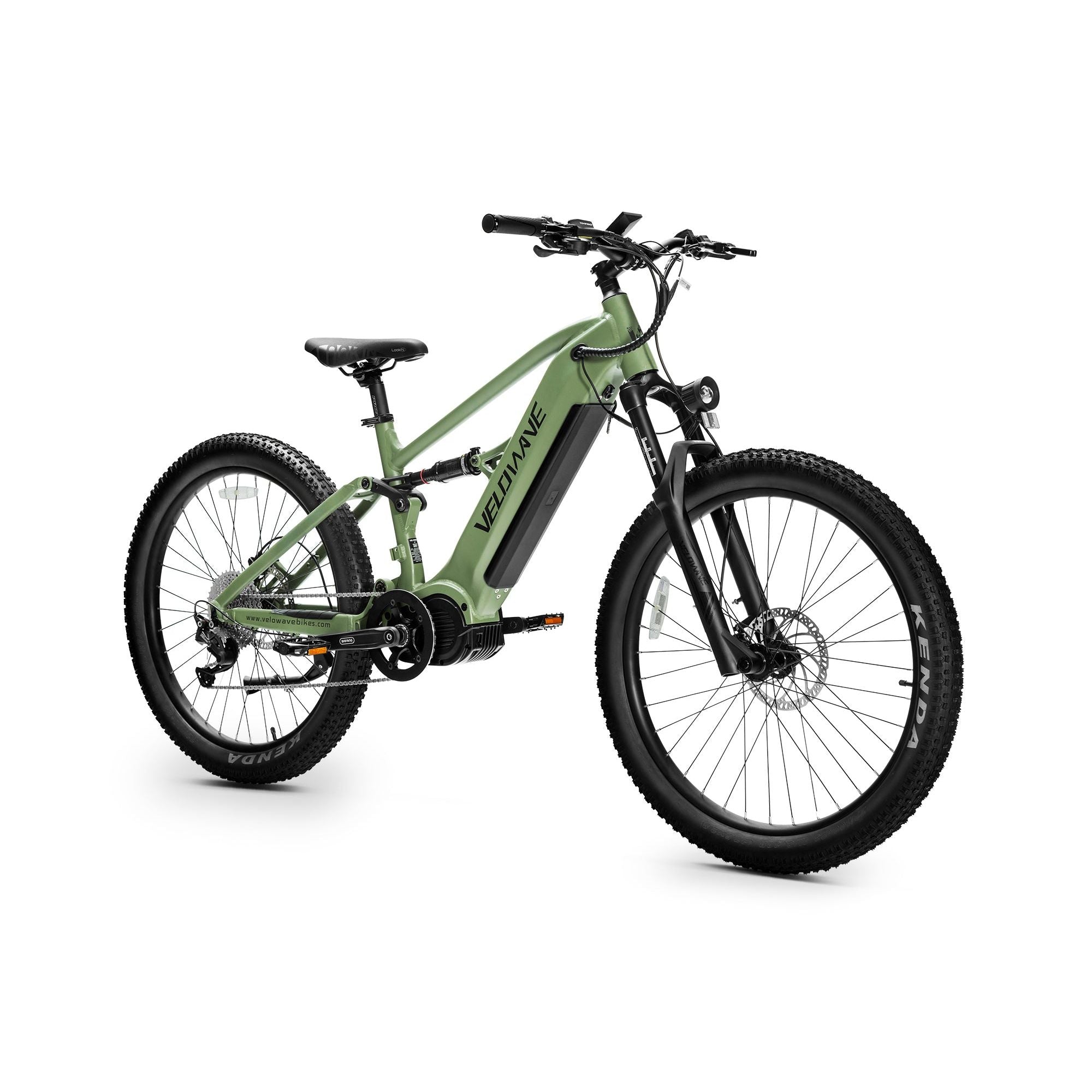

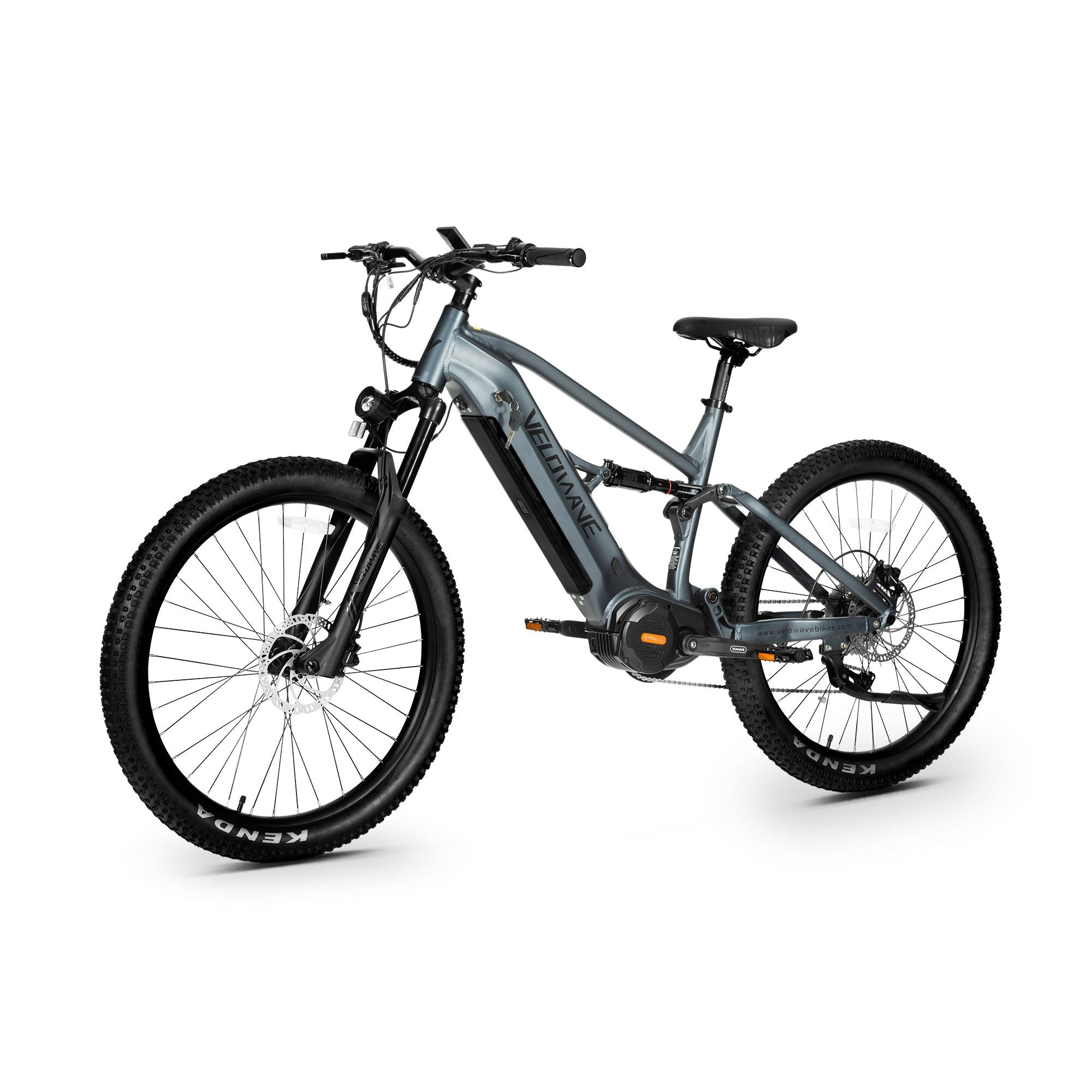

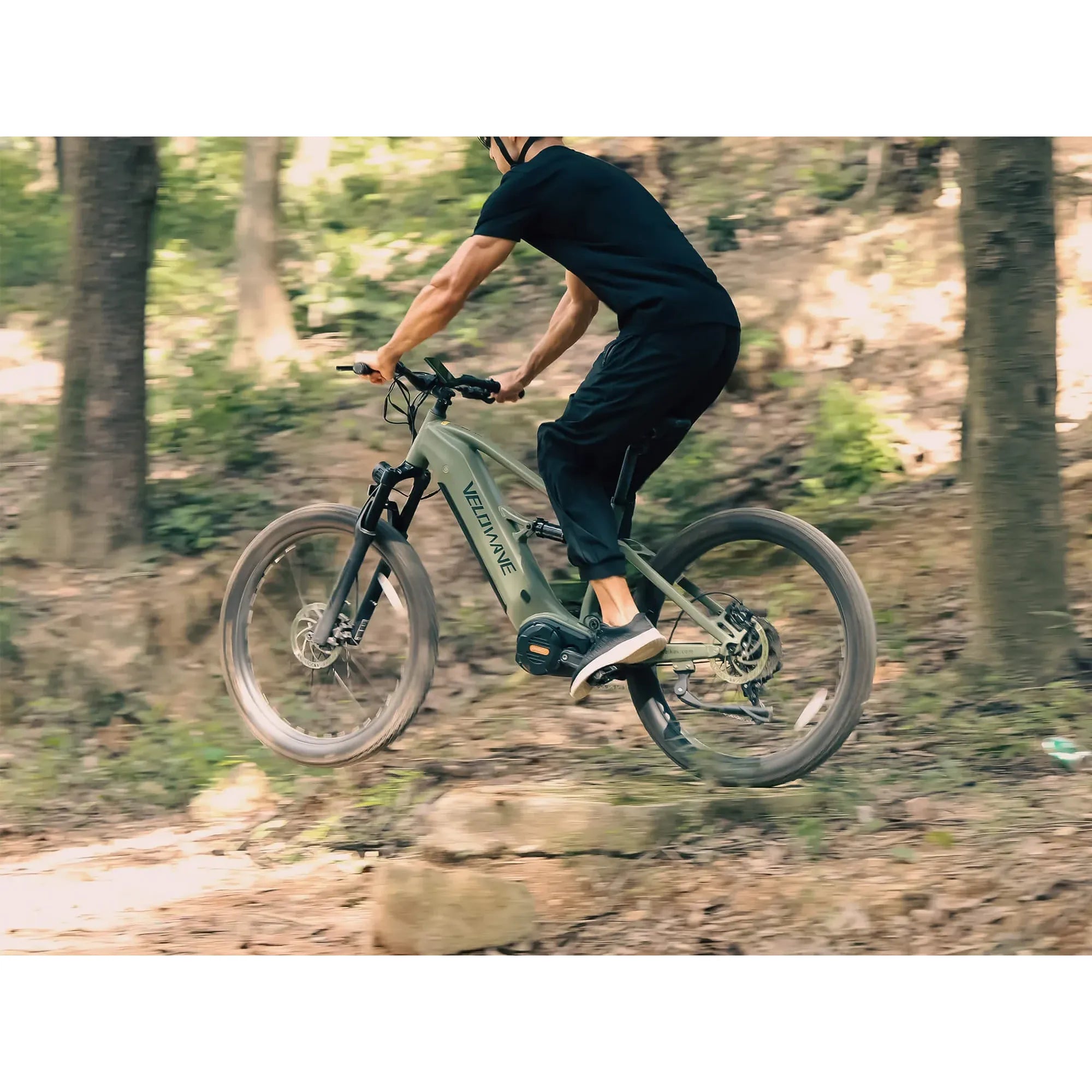

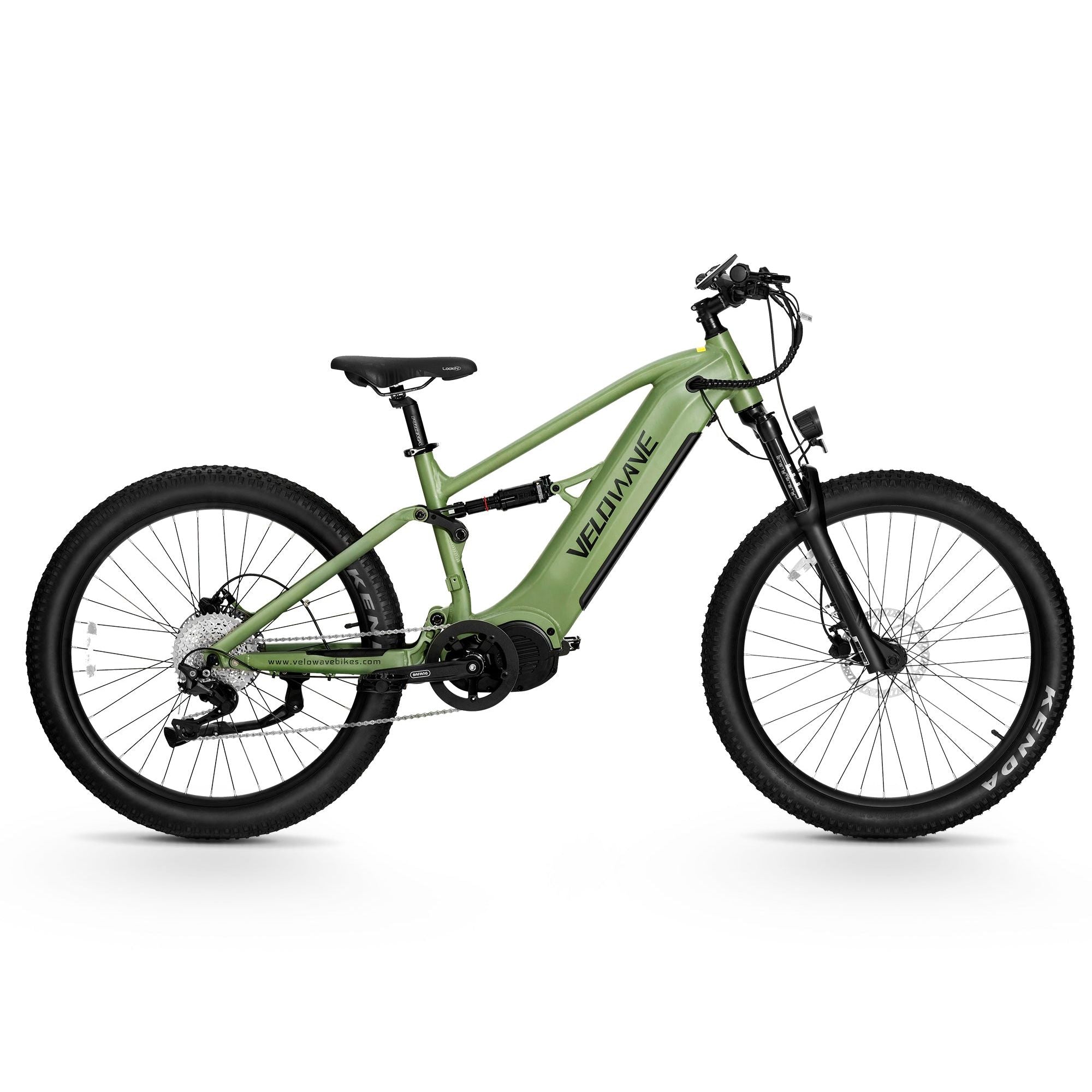

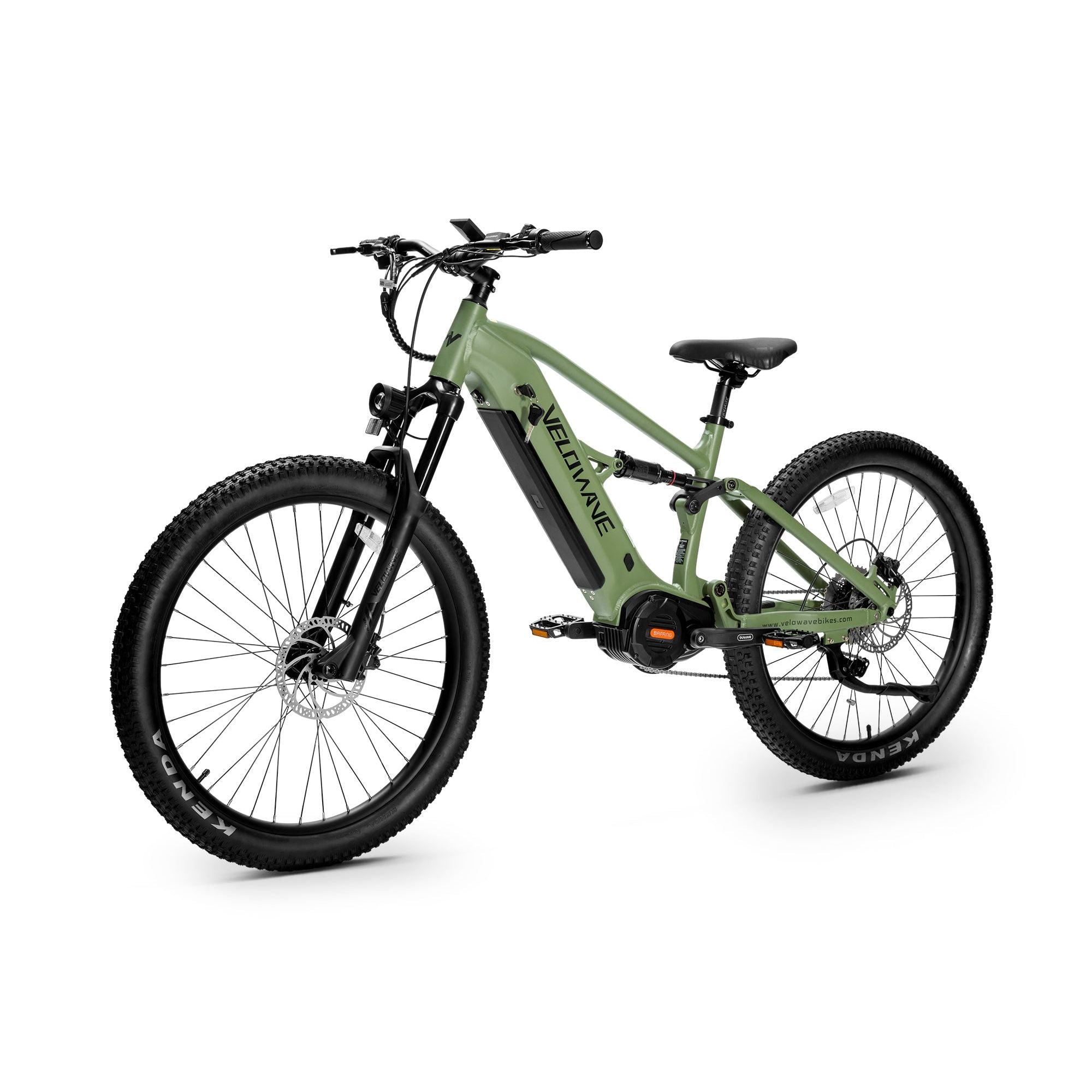

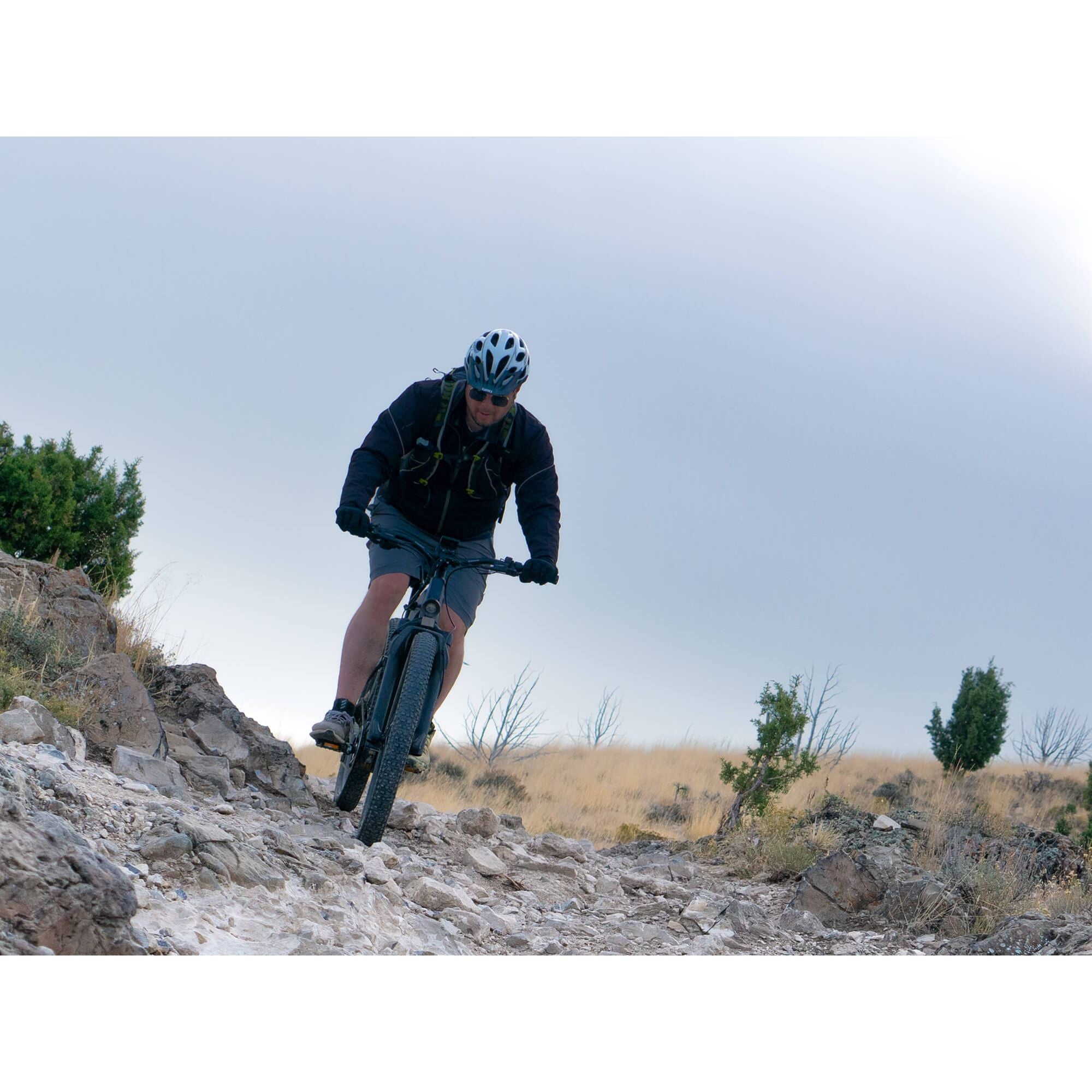

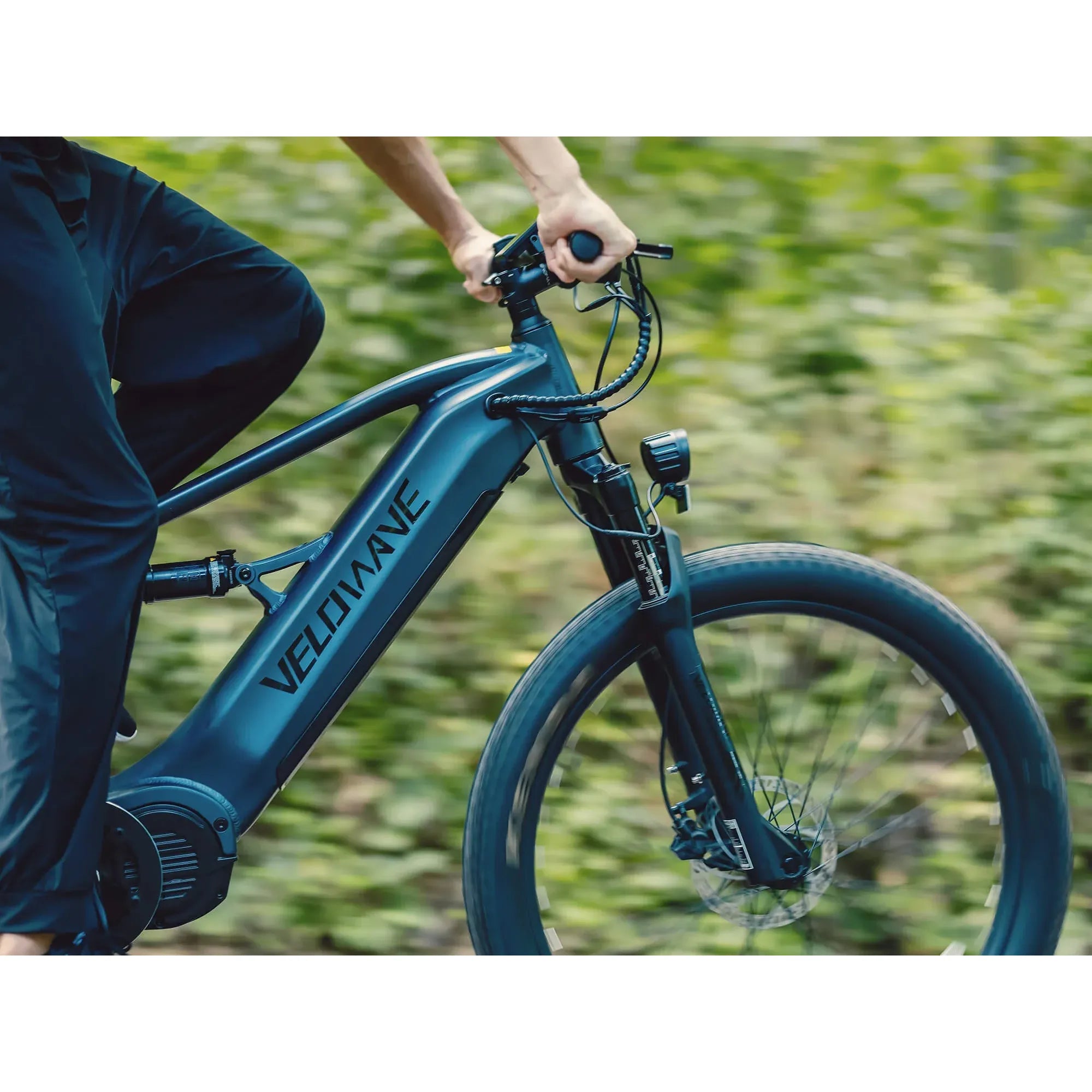

Forest XM – Full-Suspension Performance E-Bike
Don’t want to bounce off gravel, potholes, and uneven paths? The Forest XM is engineered to keep your ride smooth, stable, and controlled—even when the terrain isn’t. Its advanced front and rear suspension system absorbs harsh impacts, giving you a noticeably more comfortable ride than standard e-bikes.
Crafted from high-performance 6061 Aluminum Alloy, the Forest XM features a sleek, integrated battery design and a perfectly balanced frame with 133 mm travel. Combined with premium air suspension and a powerful 1000W motor, this e-bike delivers a responsive, refined riding experience that blends innovation, performance, and modern styling into one dynamic package.
Technical Specifications
General
-
Max Speed: Up to 28 MPH (Pedal Assist) / 20 MPH (Throttle)
-
Range: Up to 85 miles (PAS) / 60 miles (Throttle)*
Measured under controlled conditions (75 kg load, 30°C, PAS level 1, level road). Actual mileage varies based on temperature, load, terrain, and riding style.
Frameset
-
Frame: 6061 Aluminum Alloy, internal battery, full suspension
-
Suspension Travel: 133 mm frame travel
-
Fork: Air suspension, 140 mm travel, lockout
-

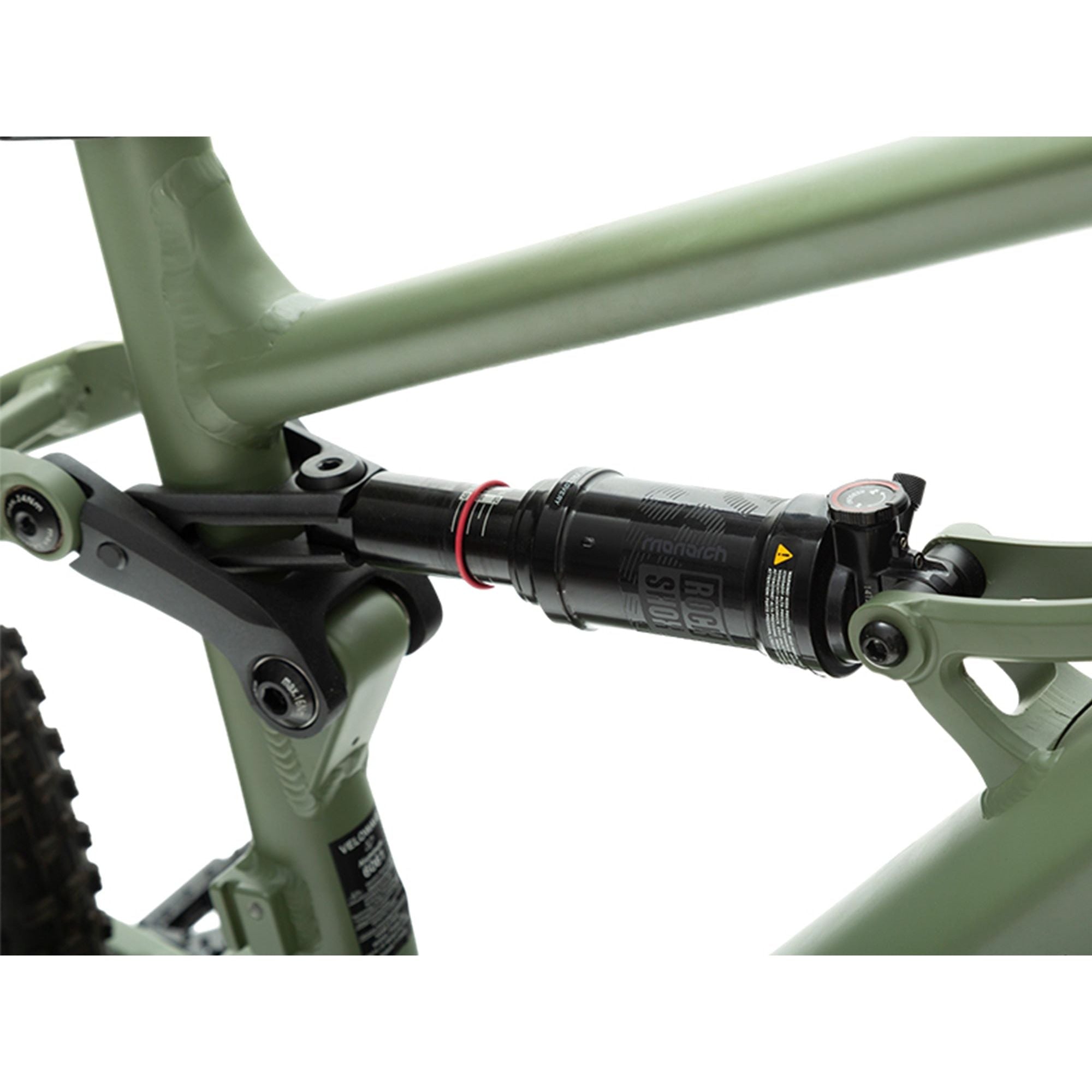

Rear Shock: RockShox RS-MNR-R-C4, 184×44 mm, 44 mm travel, external rebound adjustment
Wheels
-
Rims: Aluminum 27.5" 36H
-
Spokes: Black stainless steel, 13G (269/270 mm)
-
Hubs: Disc hubs with nutted axles
-
Tires: Kenda 27.5" × 2.8"
E-System
-

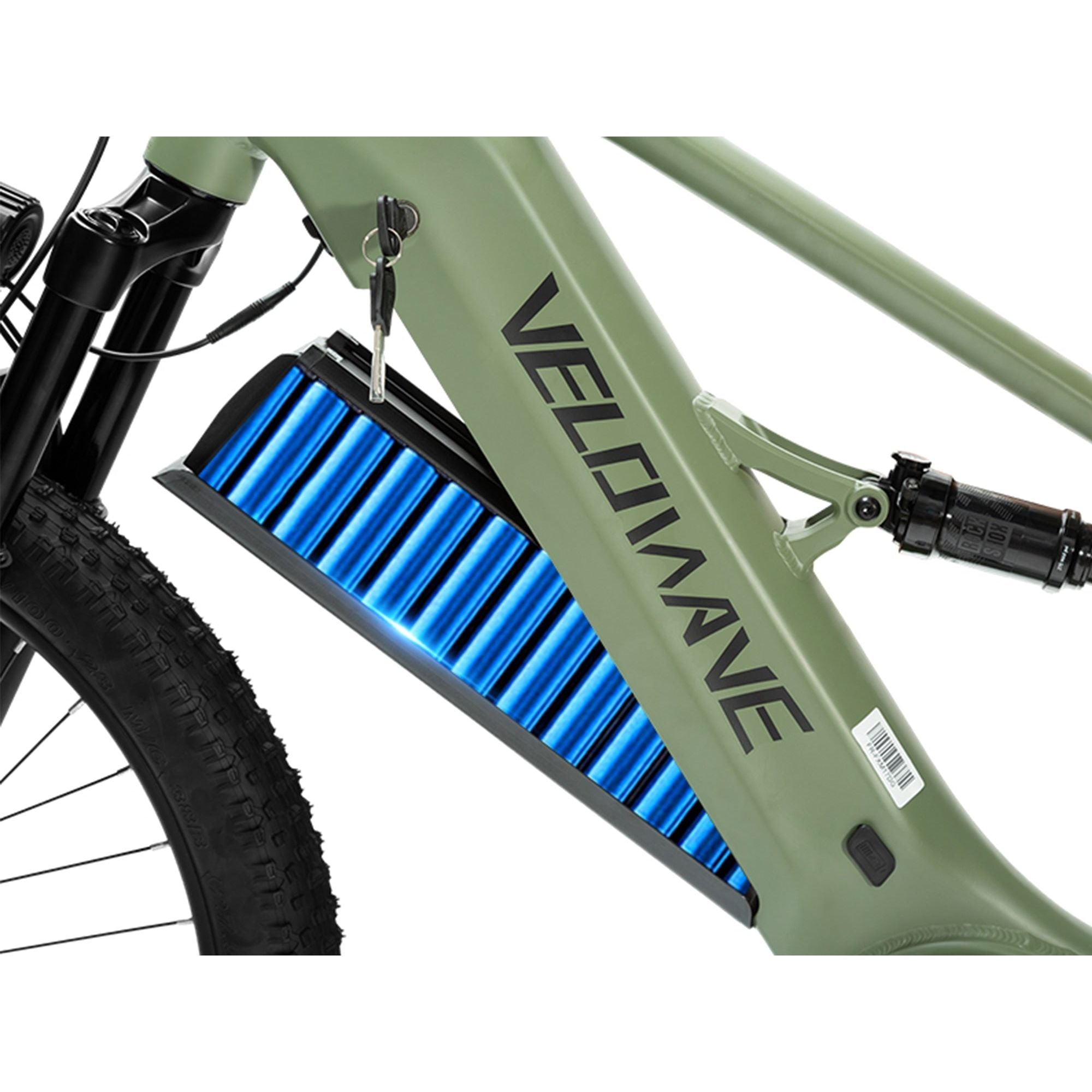

Battery: 48V 20Ah (960Wh) removable internal lithium-ion with LG cells
-
Charger: 48V 3A (approx. 7 hours)
-

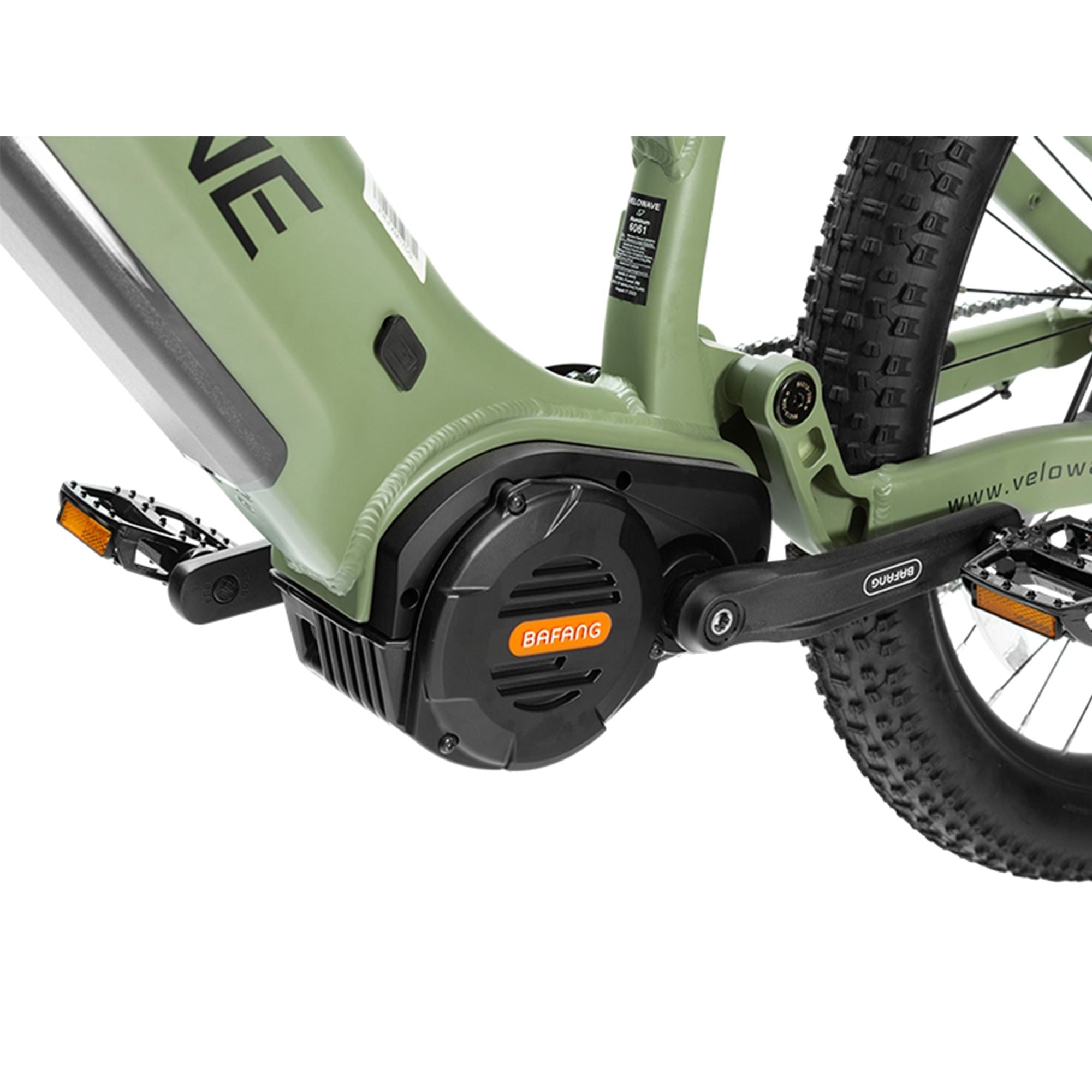

Motor: 1000W (Peak 1200W), 160 Nm torque
-

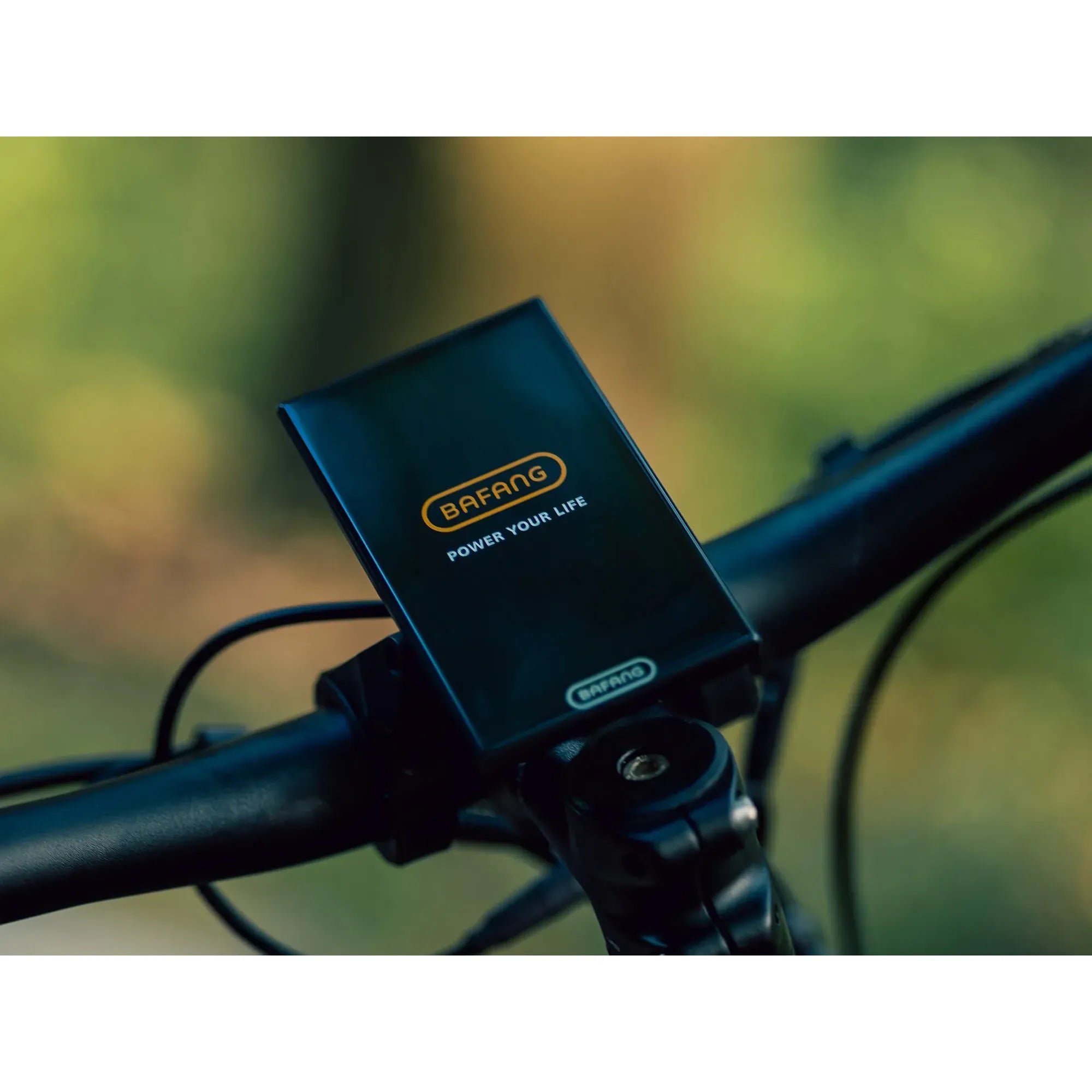

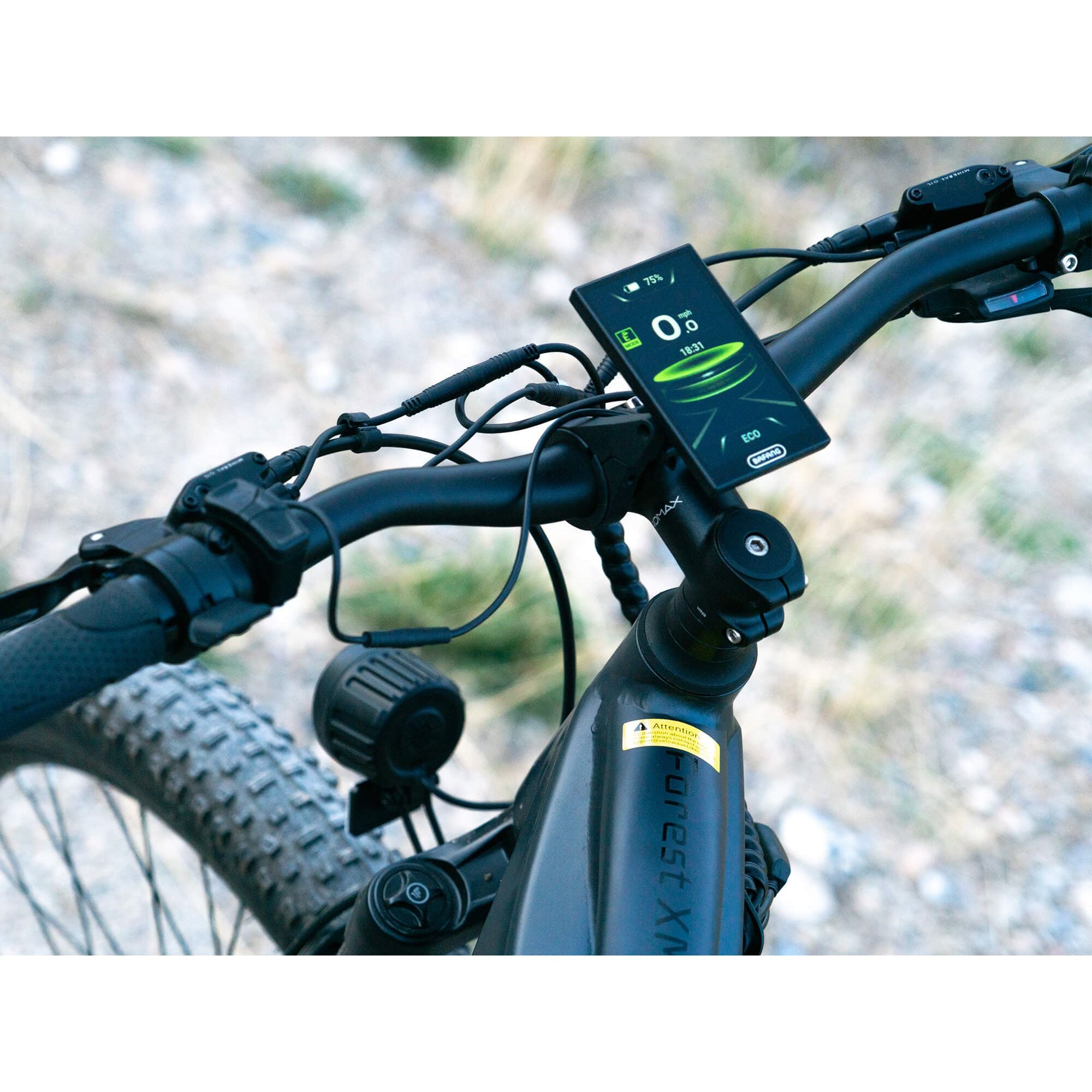

Display: TFT Smart Color Display with backlight
-
Pedal Assist: 6 levels
-
Sensor: Torque sensor for natural, responsive riding
-
Throttle: On-demand throttle—from a complete stop
-
Lights:
Drivetrain
-
Shifter: Shimano 10-speed thumb shifter
-
Crankset: 170 mm, 40T
-

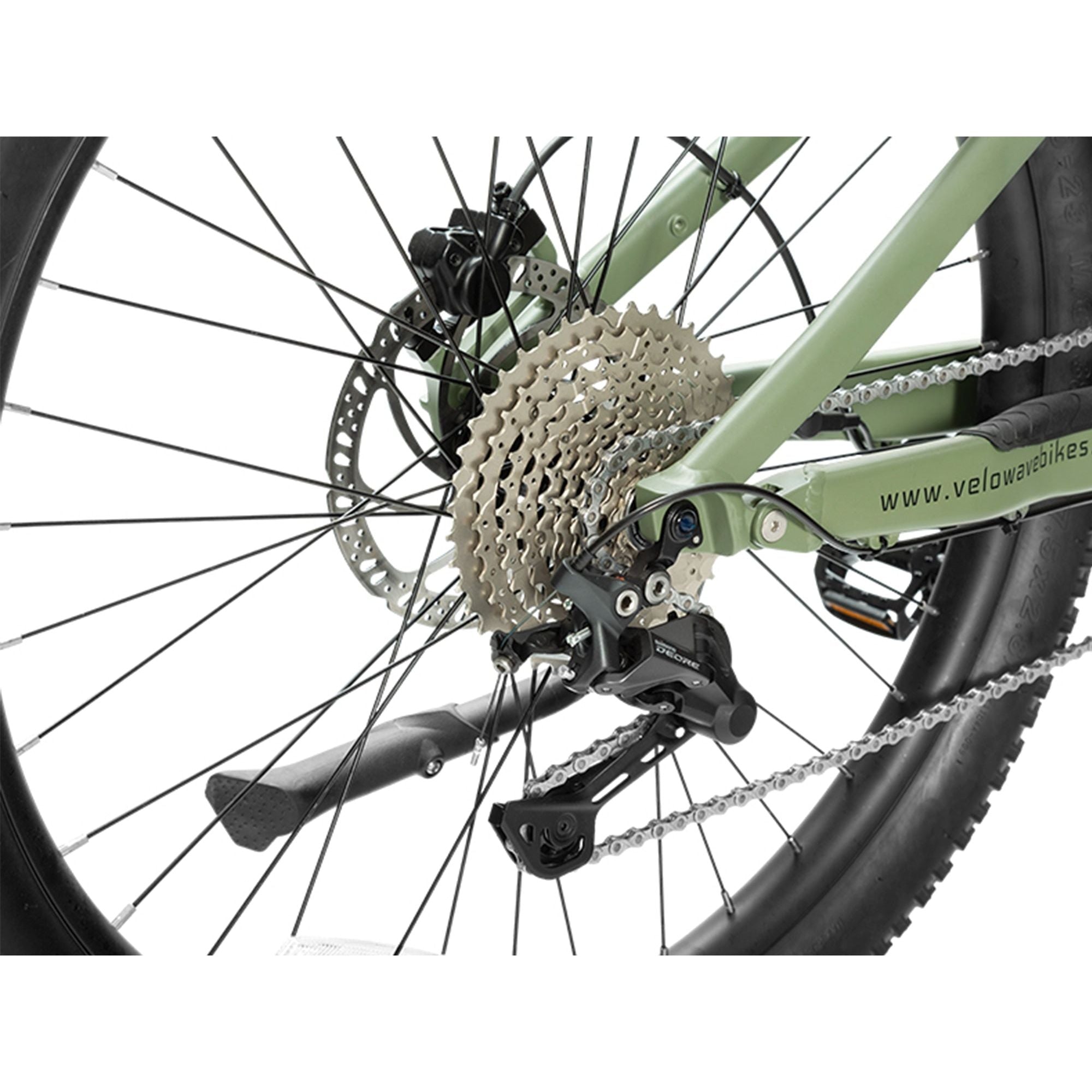

Cassette: Shimano 11–42T, 10-speed
-
Chain: KMC 134-link, 10-speed
-
Pedals: Alloy platform
-
Rear Derailleur: Shimano Deore RD-M4120 (10-speed)
Components
-
Saddle: Wide comfort saddle
-
Seatpost: Forged alloy, Ø31.6 × 300 mm
-
Seat Clamp: Ø38.1 mm quick-release
-
Stem: Ø31.8 mm bar bore, Ø28.6 mm clamp, 60 mm height, 6° rise
-
Handlebar: Aluminum, 740 mm width, Ø31.8 mm
-
Headset: Sealed bearing
-
Grips: Ergonomic comfort grips
-
Brakes: Tektro hydraulic disc brakes, 180 mm rotors, with power cut-off
-
Kickstand: Included (rear mount)
-
Fenders / Rear Rack: Not included
Weight
-
Net Weight: 76 lbs (34.5 kg) including battery
-
Gross Weight: 103 lbs (46.5 kg)
-
Battery Weight: 11.4 lbs (5.15 kg)
-
Max Load: 385 lbs (175 kg including cargo)
Size
