Velowave | Forest SM MTB | FR-FSM17DB

SKU: FR-FSM17DB

$2,999.00

🚚 Free Shipping over $200 & No Sales Tax (some exclusions apply)

📦 Fast 5-9 Days Delivery

❓ Questions? Email us support@discoveranddo.com Call Our Experts 1-833-657-4927

Size

Color

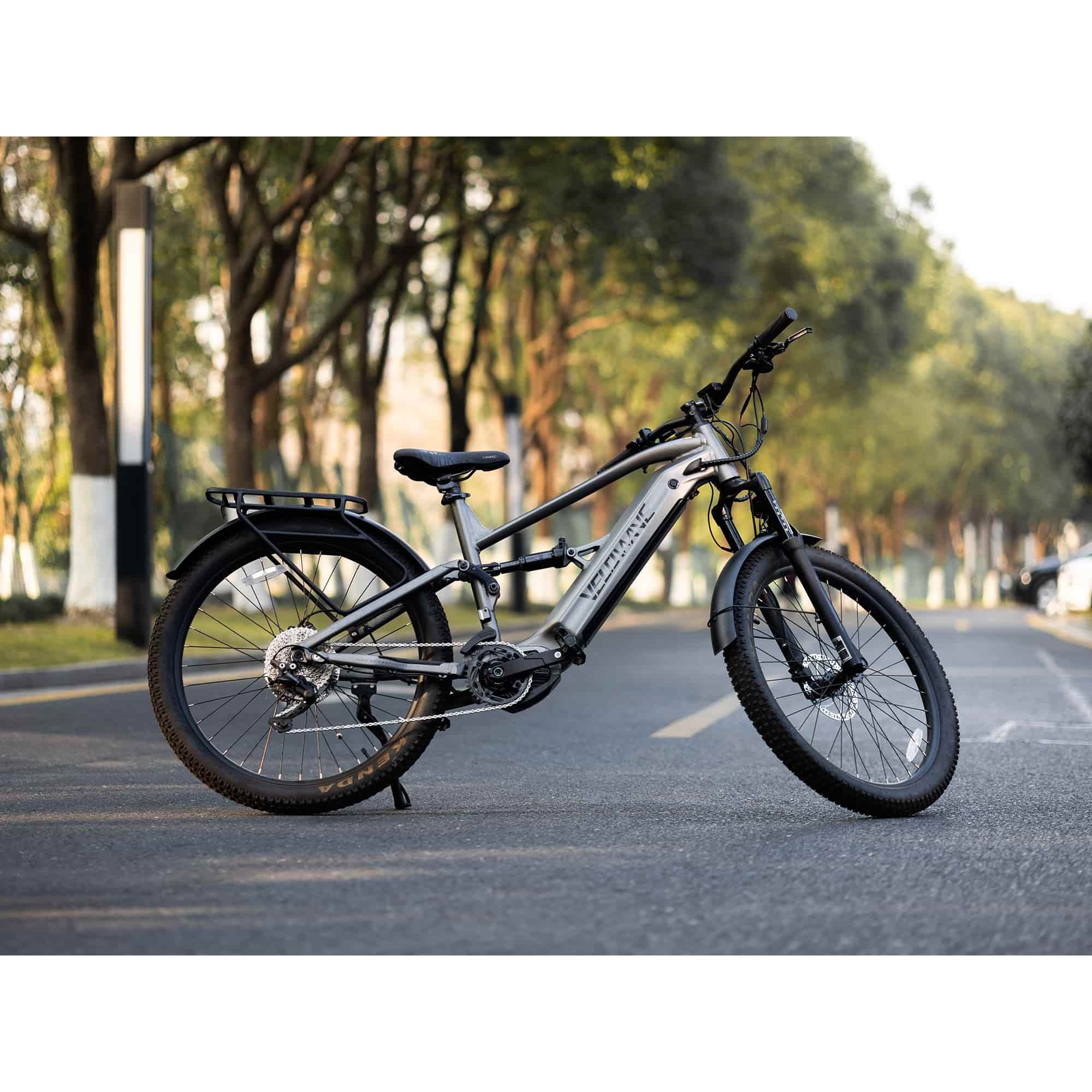

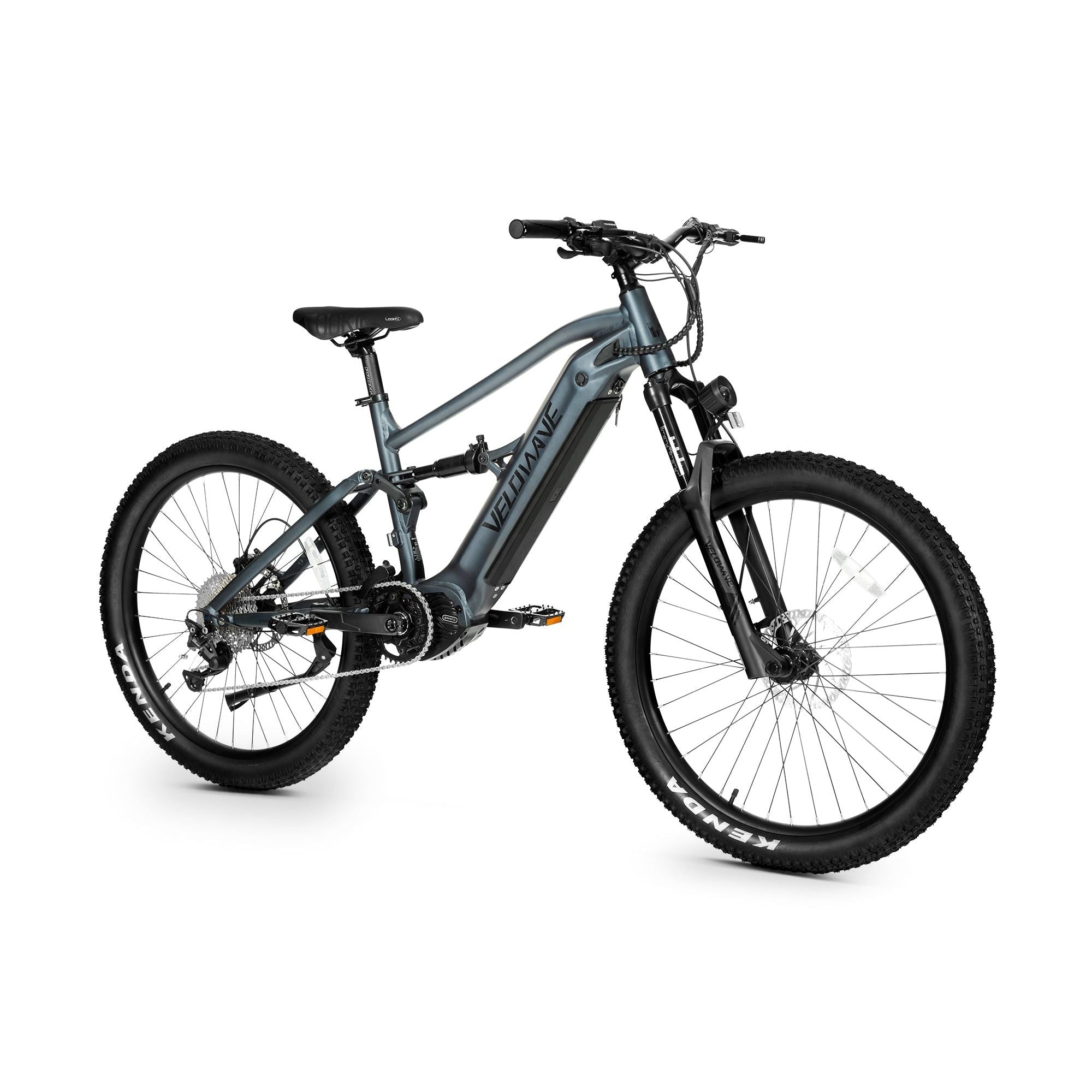

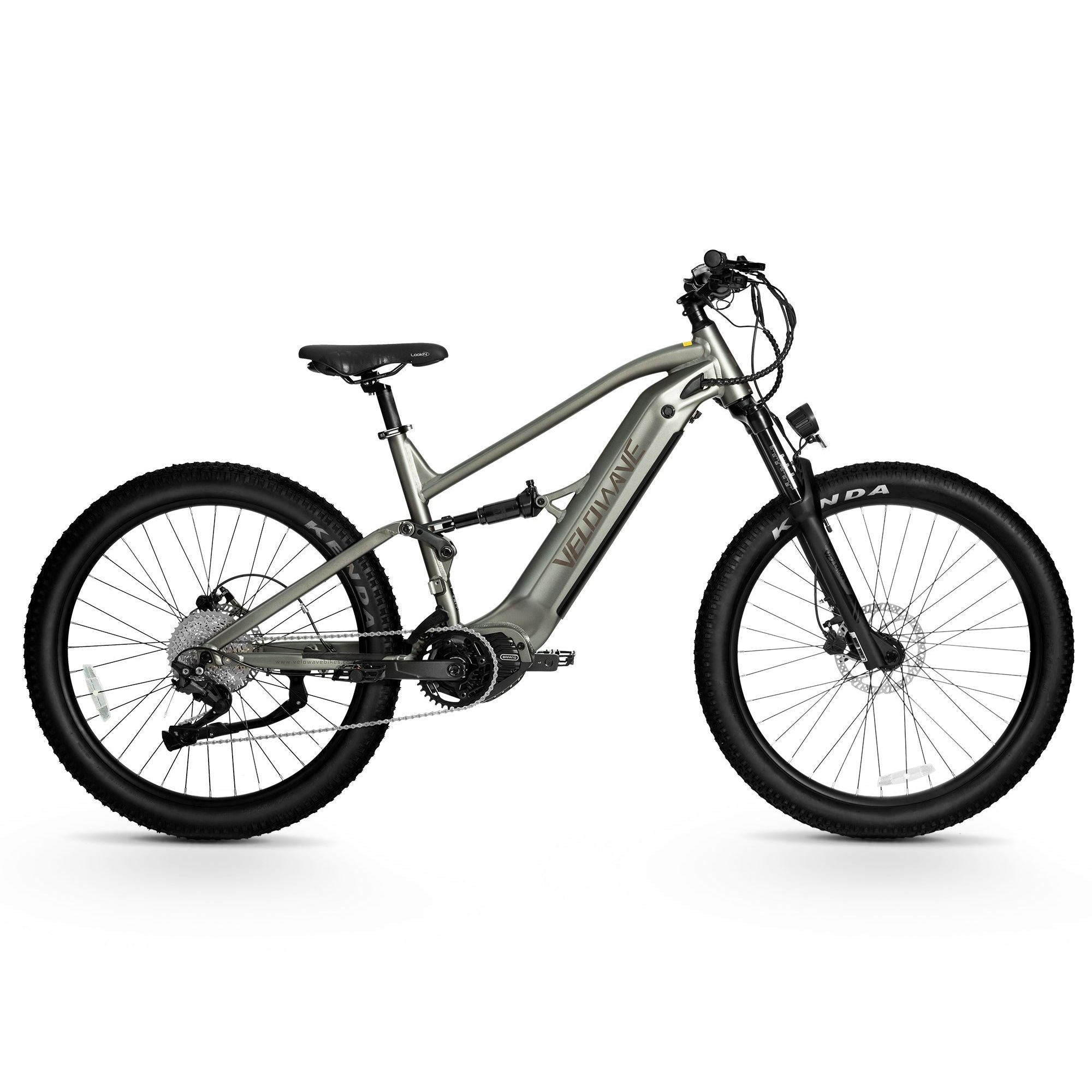

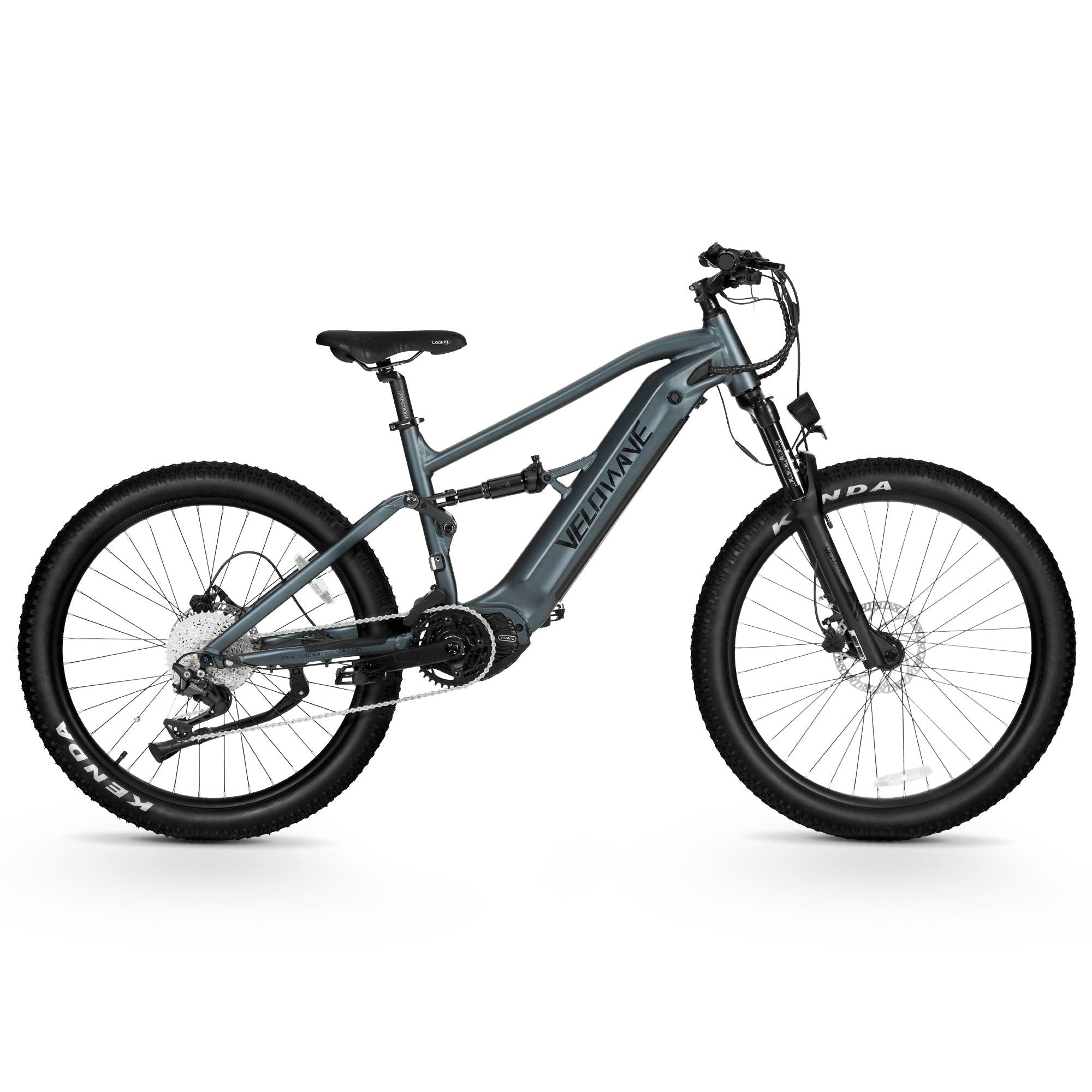

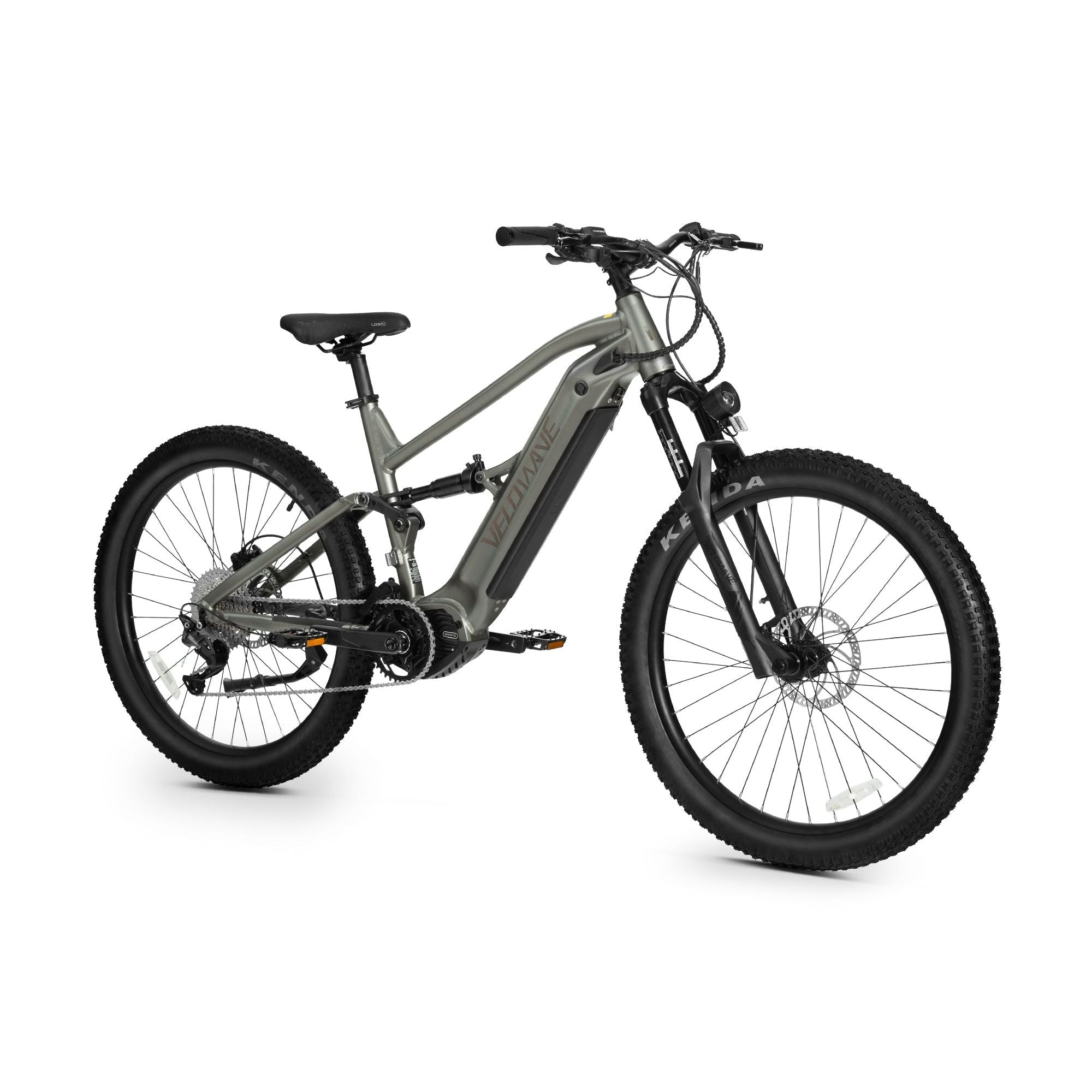

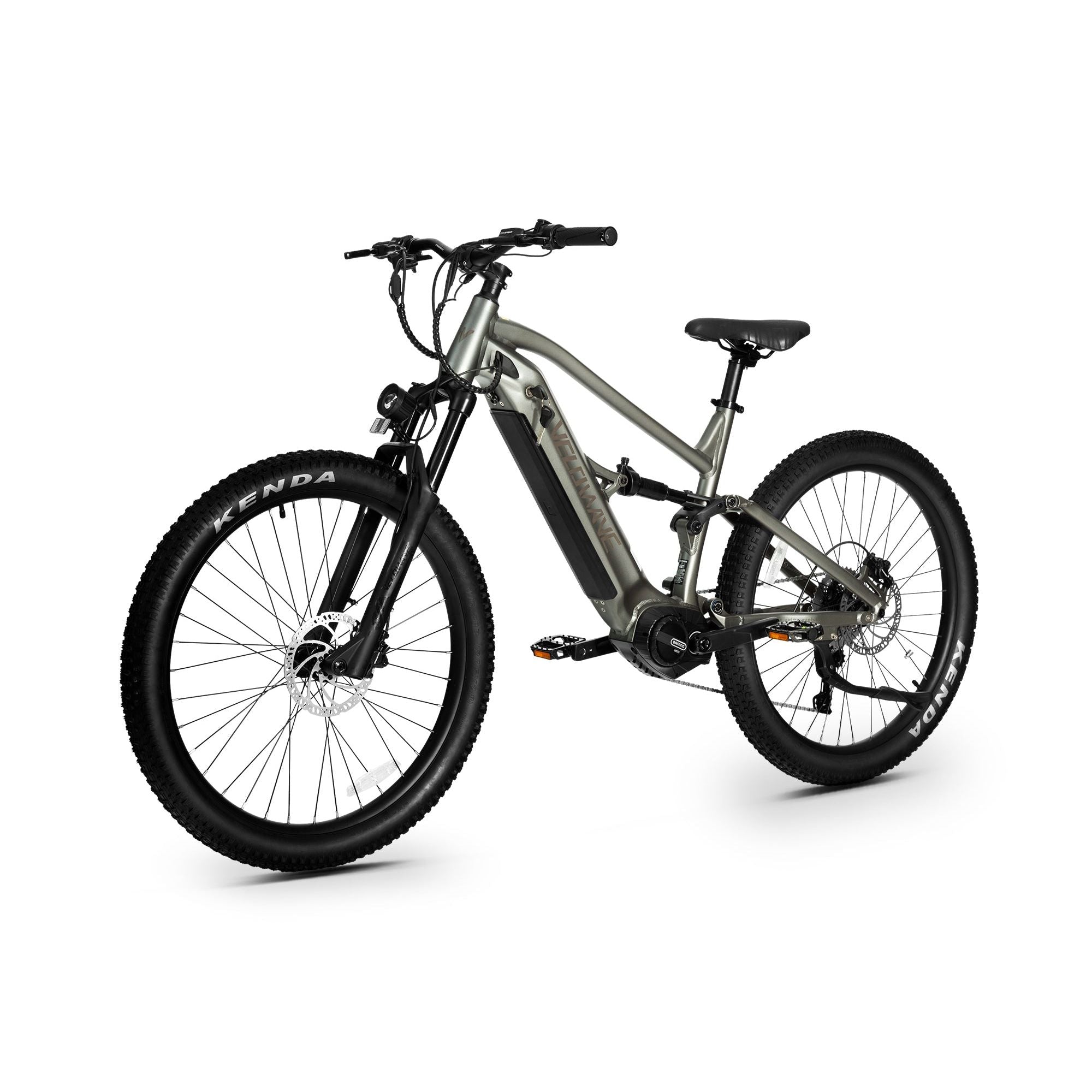

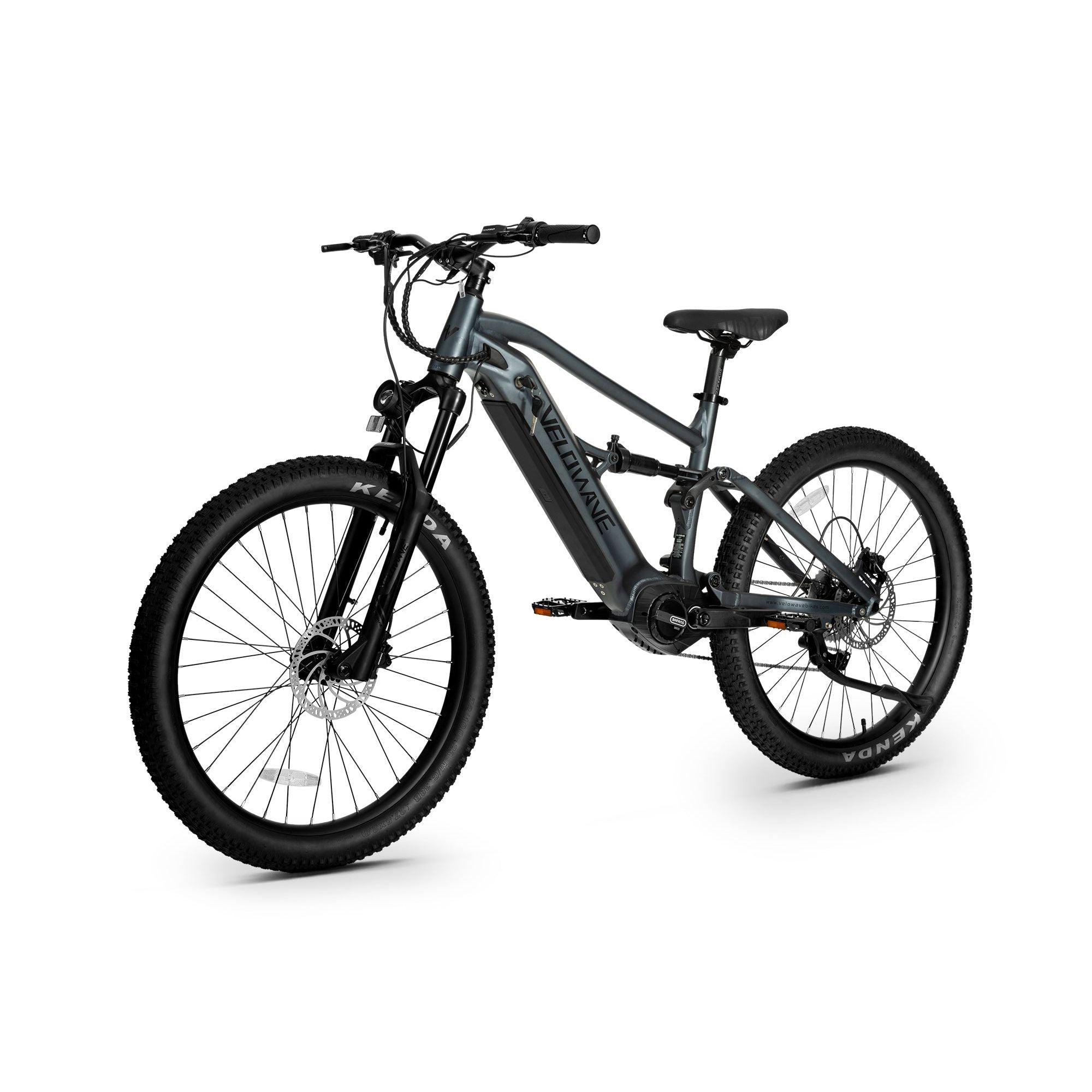

Forest SM – Lightweight Full-Suspension Power & Precision

Whether you're exploring rugged off-road trails or gliding through city streets, the Forest SM is engineered to elevate every ride. Its advanced engineering, lightweight frame, and powerful torque output make it a standout in versatility and performance.

The high-efficiency 500W motor delivers a peak output of 760W and an impressive 130 Nm of torque, giving you smooth acceleration, excellent hill-climbing ability, and confident power on demand. With adjustable front and rear air suspension, the Forest SM adapts to your riding style—absorbing bumps, smoothing gravel, and transforming rough terrain into a controlled, comfortable experience.

Combining precision design, rugged durability, and cutting-edge technology, the Forest SM is built for riders who want more freedom, more comfort, and more adventure in every mile.

Technical Specifications

General

Class: Class 3 (Up to 28 mph with pedal assist)
Max Speed: 28 MPH (Pedal Assist) / 20 MPH (Throttle)
Range: Up to 70 miles (PAS) / 40 miles (Throttle)*
Measured under controlled conditions (75 kg load, 30°C, PAS level 1, level road). Actual mileage varies based on load, terrain, temperature, and riding habits.

Frameset

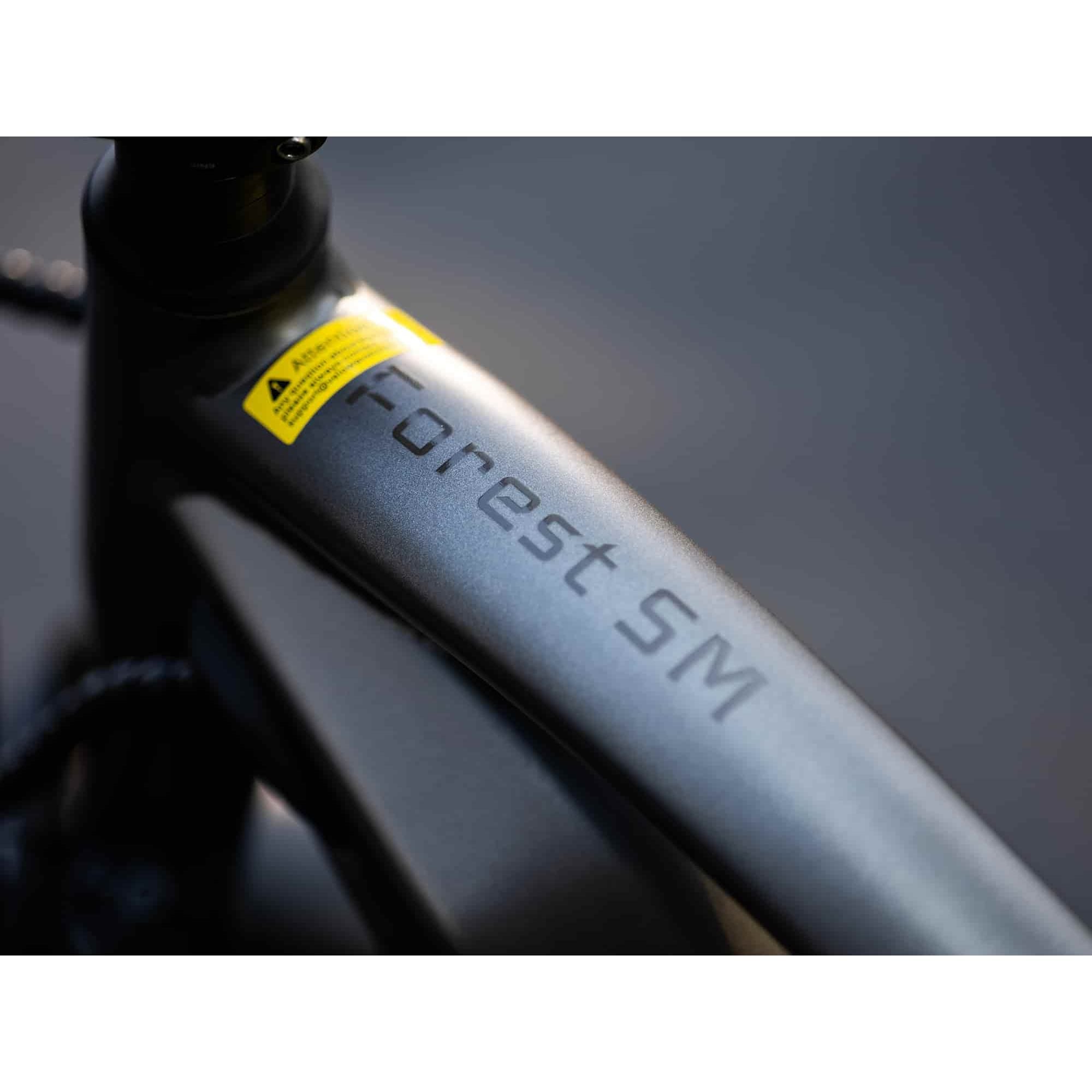

Frame: 6061 Aluminum Alloy with internal battery
Suspension Travel: 121 mm frame travel

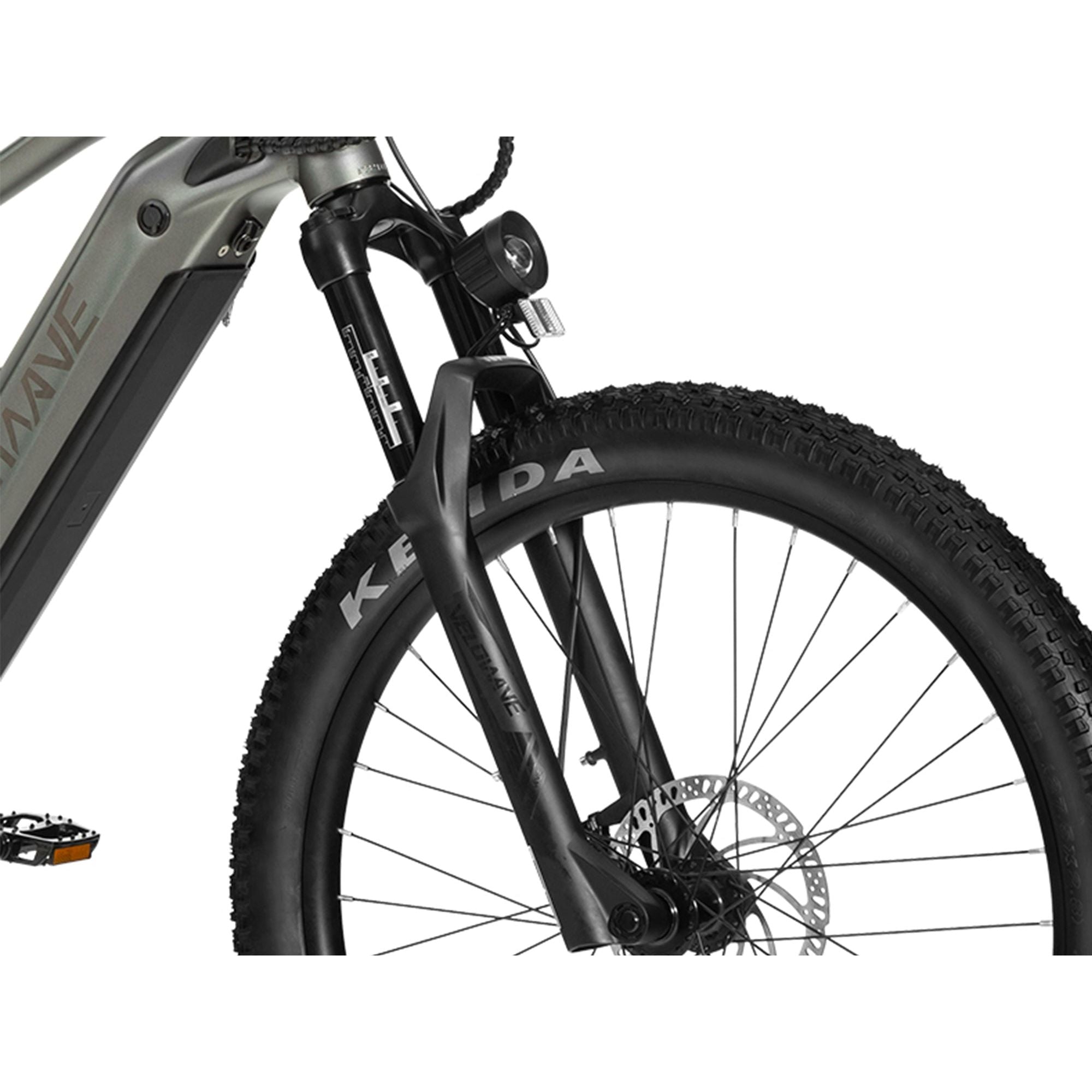

Fork: Air suspension, 140 mm travel, lockout

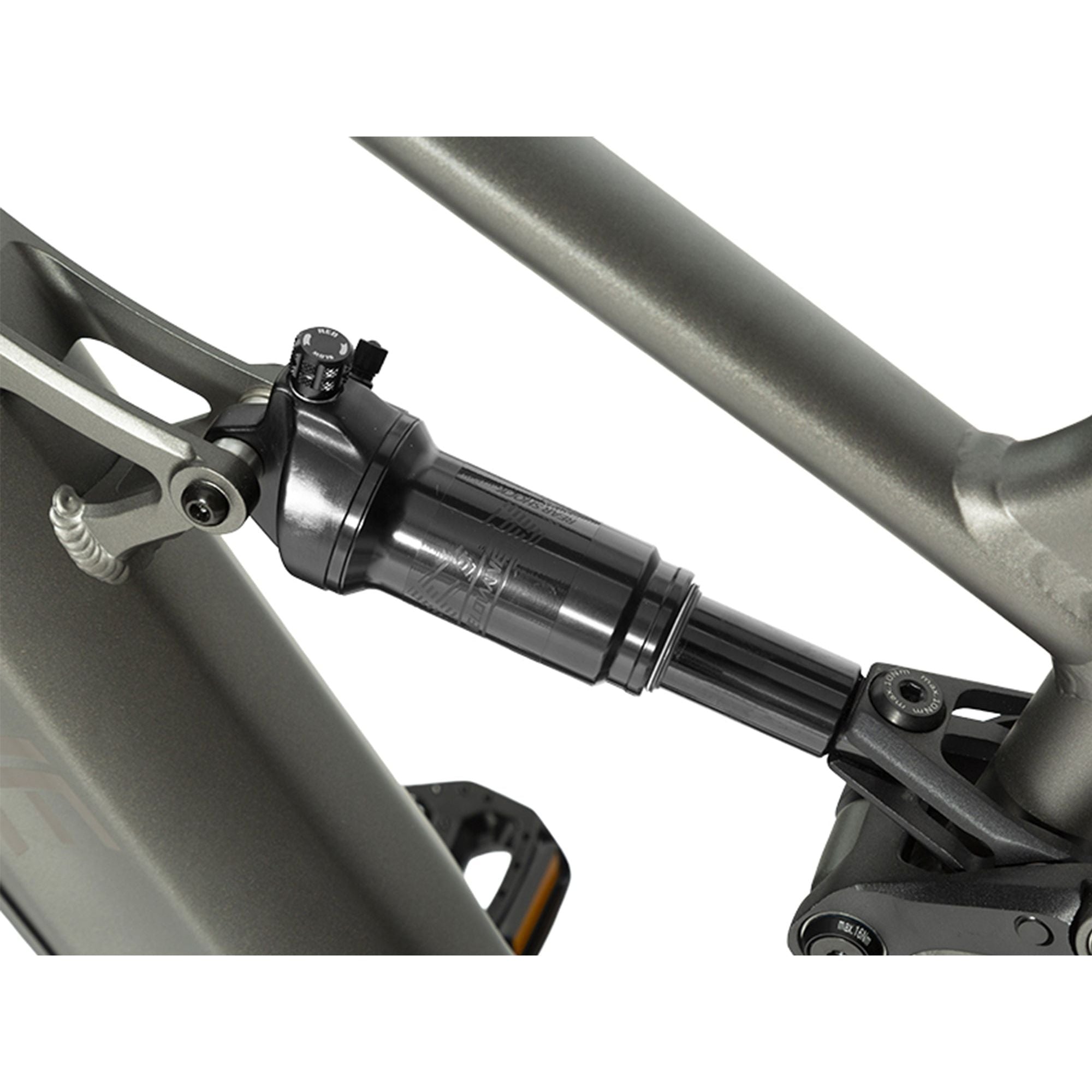

Rear Shock: 185×45 mm air shock, 42 mm travel, external rebound adjustment

Wheels

Rims: Aluminum 27.5" 36H (front & rear)
Spokes: Black stainless 13G, 269/270 mm
Hubs: Disc hubs with nutted axles
Tires: Kenda 27.5" × 2.8"

E-System

Battery: 48V 15Ah (720Wh) removable internal lithium-ion with LG cells
Charger: 48V 3A (approx. 5-hour charge time)

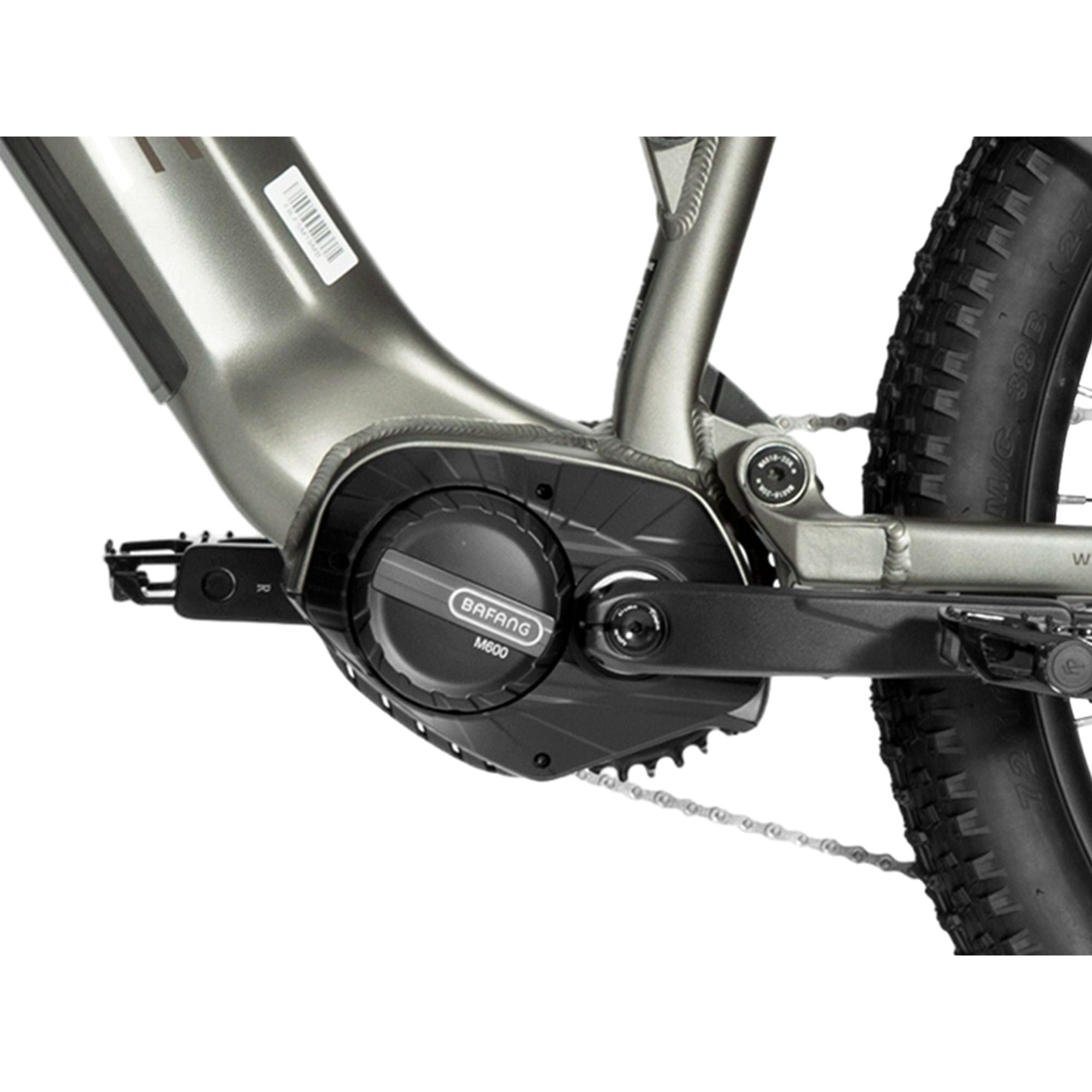

Motor: 500W (Peak 760W), 130 Nm torque

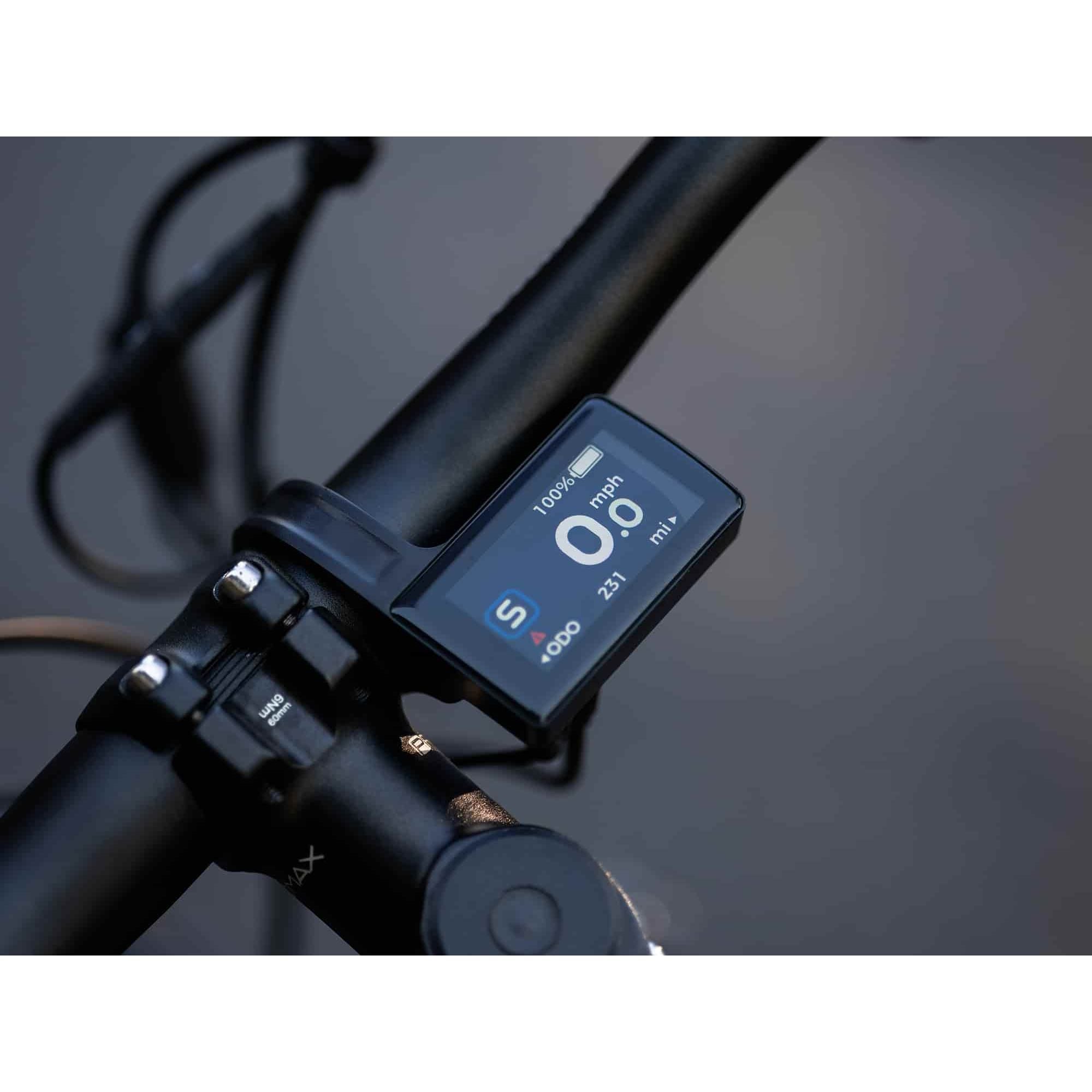

Display: TFT smart color backlit display
Pedal Assist: 6 levels
Sensor: Torque sensor (smooth & responsive power delivery)
Throttle: On-demand throttle from a complete stop
Lights:
- Front: 48V LED, 80 LUX
- Rear: Blinking safety light

Drivetrain

Shifter: Shimano 10-speed thumb shifter
Crankset: 170 mm with 38T chainring
Cassette: Shimano 11–42T, 10-speed
Chain: KMC 122-link, 10-speed
Pedals: Alloy platform

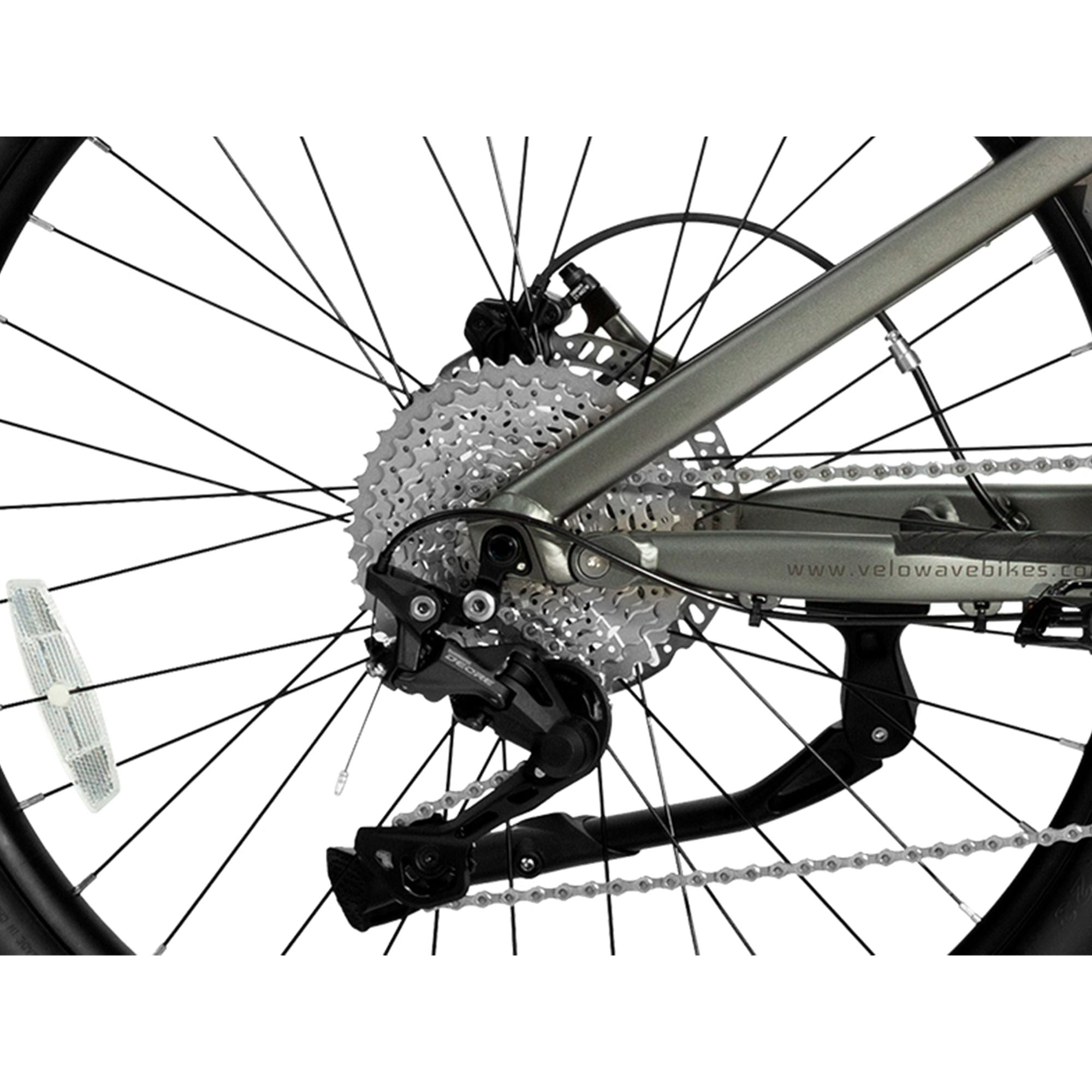

Rear Derailleur: Shimano Deore RD-M4120 (10-speed)

Components

Saddle: Comfortable saddle
Seatpost: Forged alloy, Ø31.6 × 300 mm
Seat Clamp: Ø35 mm quick-release
Stem: Ø31.8 bar bore, Ø28.6 clamp, 60 mm height, 6° rise
Handlebar: Aluminum, 740 mm width, Ø31.8 mm
Headset: Sealed bearing
Grips: Ergonomic comfort grips
Brakes: Tektro hydraulic disc brakes, 180 mm rotors, power cut-off
Kickstand: Rear-mount included
Fenders: Not included
Rear Rack: Not included

Weight

Net Weight: 64 lbs (29.2 kg)
Gross Weight: 91 lbs (41.2 kg)
Battery Weight: 8.7 lbs (3.95 kg)
Max Load Capacity: 385 lbs (175 kg including cargo)

e

Bike Size: 2035 × 1110 × 745 mm
Box Size: 1700 × 300 × 830 mm
