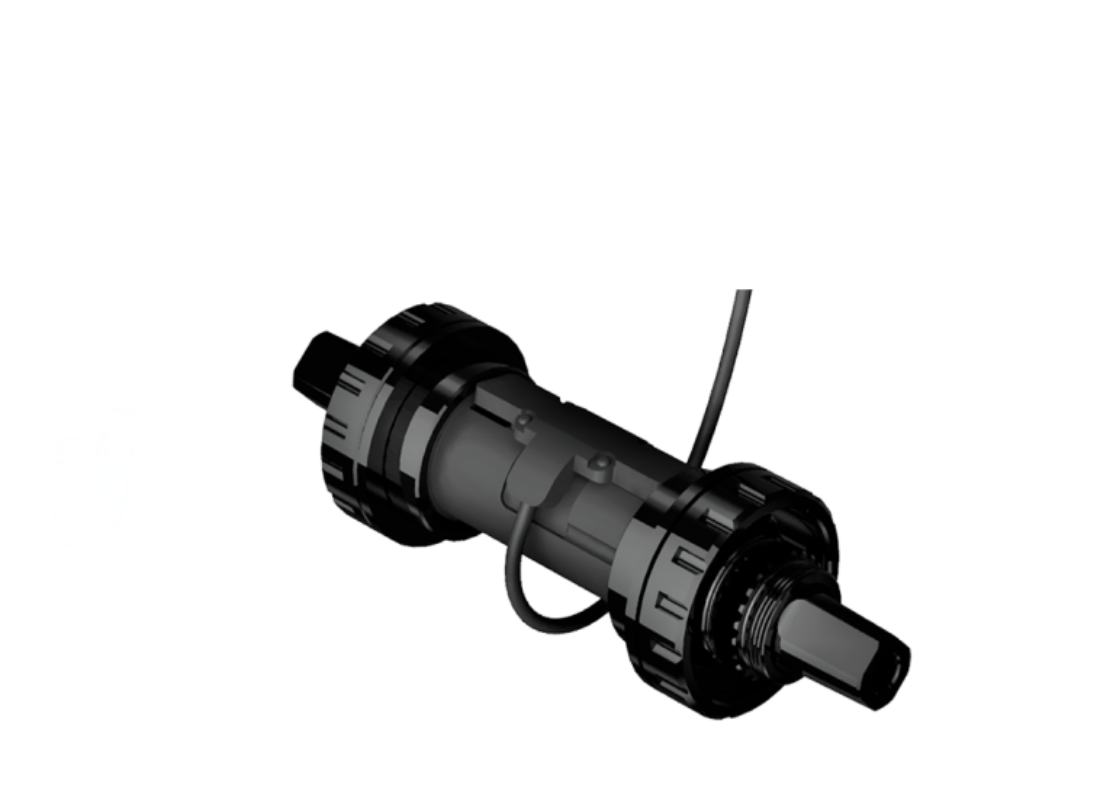

Compact Torque Sensor — Accurate Torque Measurement for Tests and Control

Overview

A compact, high-precision torque sensor designed to give reliable, repeatable torque readings for motors, drivetrains, test rigs and robotics. It combines temperature compensation and low drift with straightforward electrical and mechanical interfaces so you can install, read, and act on torque data quickly.

Benefits

Know equipment condition sooner — detect abnormal torque signatures before they cause failures.
Reduce downtime by enabling faster diagnostics and targeted maintenance.
Improve product and process quality with consistent, repeatable torque feedback.
Save development and test time with immediate, reliable measurements you can trust.
Simplify system integration so you spend less time on wiring and calibration and more time on results.

Features

High-precision torque sensing using strain-gauge elements with temperature compensation.
Multiple output options: analog (0–5 V or 4–20 mA) and digital interfaces (CAN, SPI; USB or UART optional).
Low drift and fast sampling for transient and steady-state measurements.
Compact, sealed housing with standard mounting patterns for easy installation.
Calibration certificate and onboard zeroing/offset adjustment.
Wide operating temperature range and built-in overload protection.

Specifications

Measurement range: model variants from 0.1 Nm up to 200 Nm.
Accuracy: typically ±0.2% of full scale (model dependent).
Resolution: down to 0.01 Nm (dependent on electronics and range).
Repeatability: ±0.05% of full scale.
Supply voltage: 5–24 V DC.
Outputs: 0–5 V analog (default), 4–20 mA or digital (CAN, SPI); USB/UART optional.
Bandwidth / sampling rate: up to 10 kHz (model dependent).
Operating temperature: -40 °C to +85 °C.
Material: stainless steel housing (corrosion-resistant).
Ingress protection: IP67 (sealed against dust and temporary immersion).
Dimensions (typical): diameter 25 mm, length 60 mm (varies by model).
Weight (typical): 120 g.
Includes: calibration report, mounting screws, basic cable; optional connector assemblies available.

CYCrown | Torque Sensor | 3754636
