Osprey Motor Controller

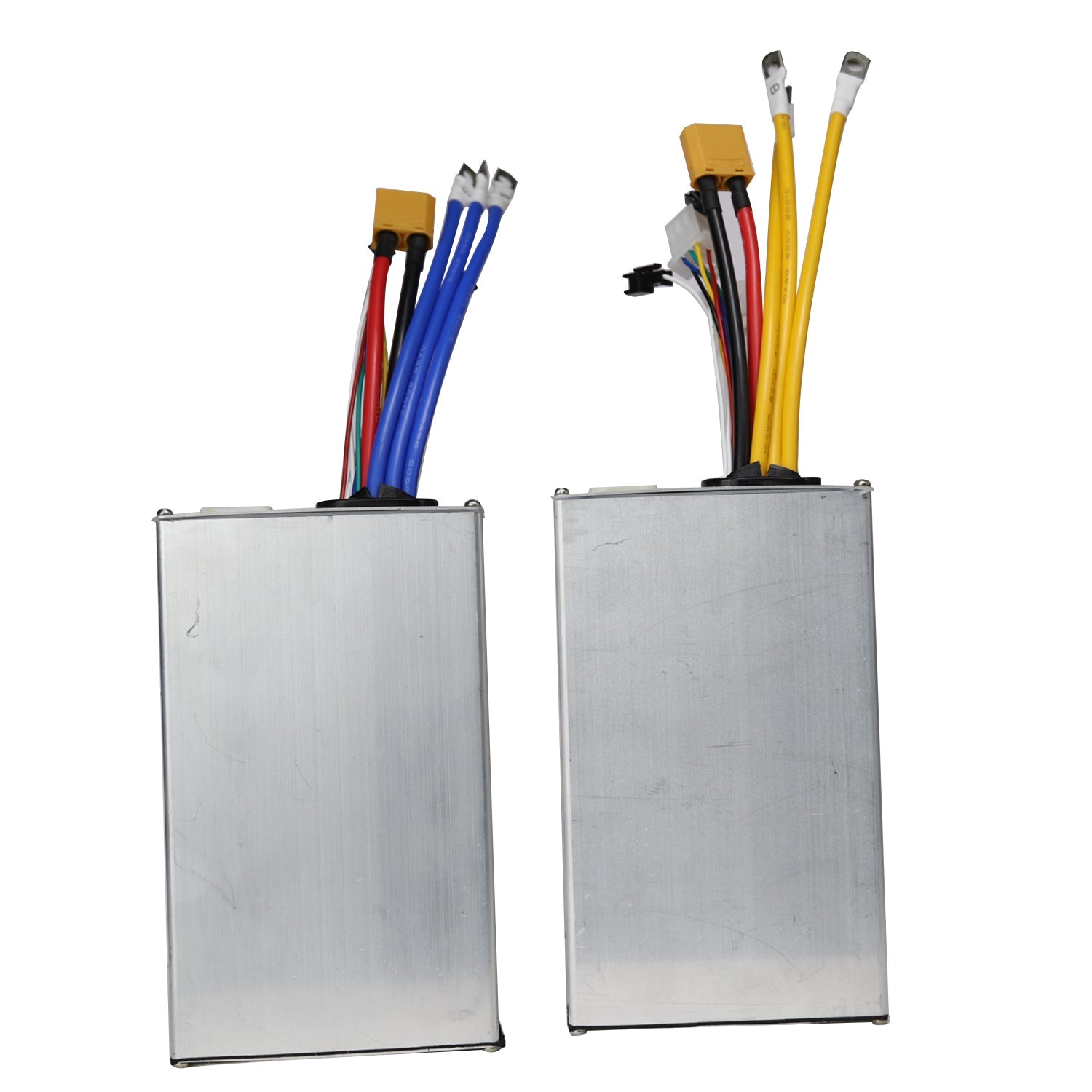

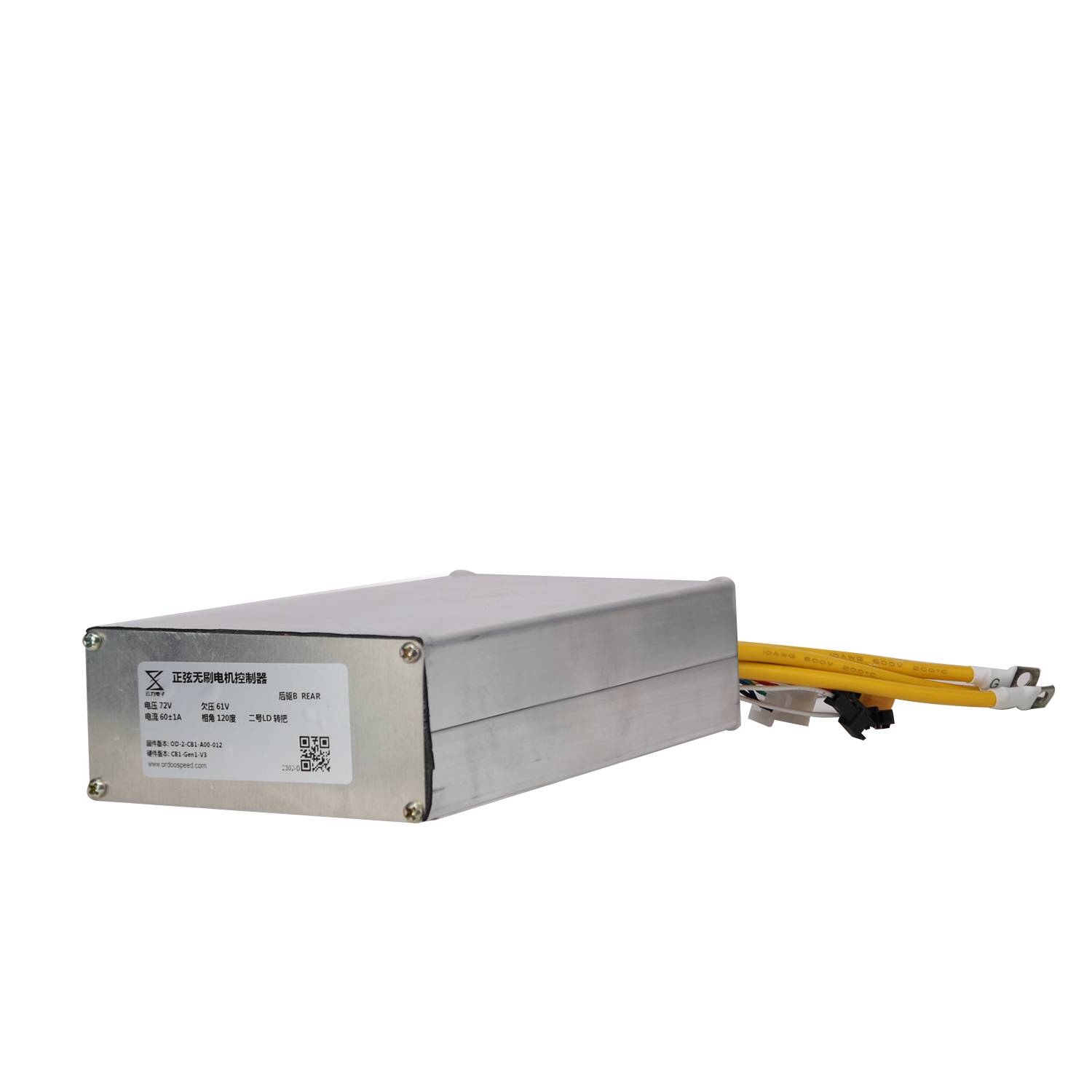

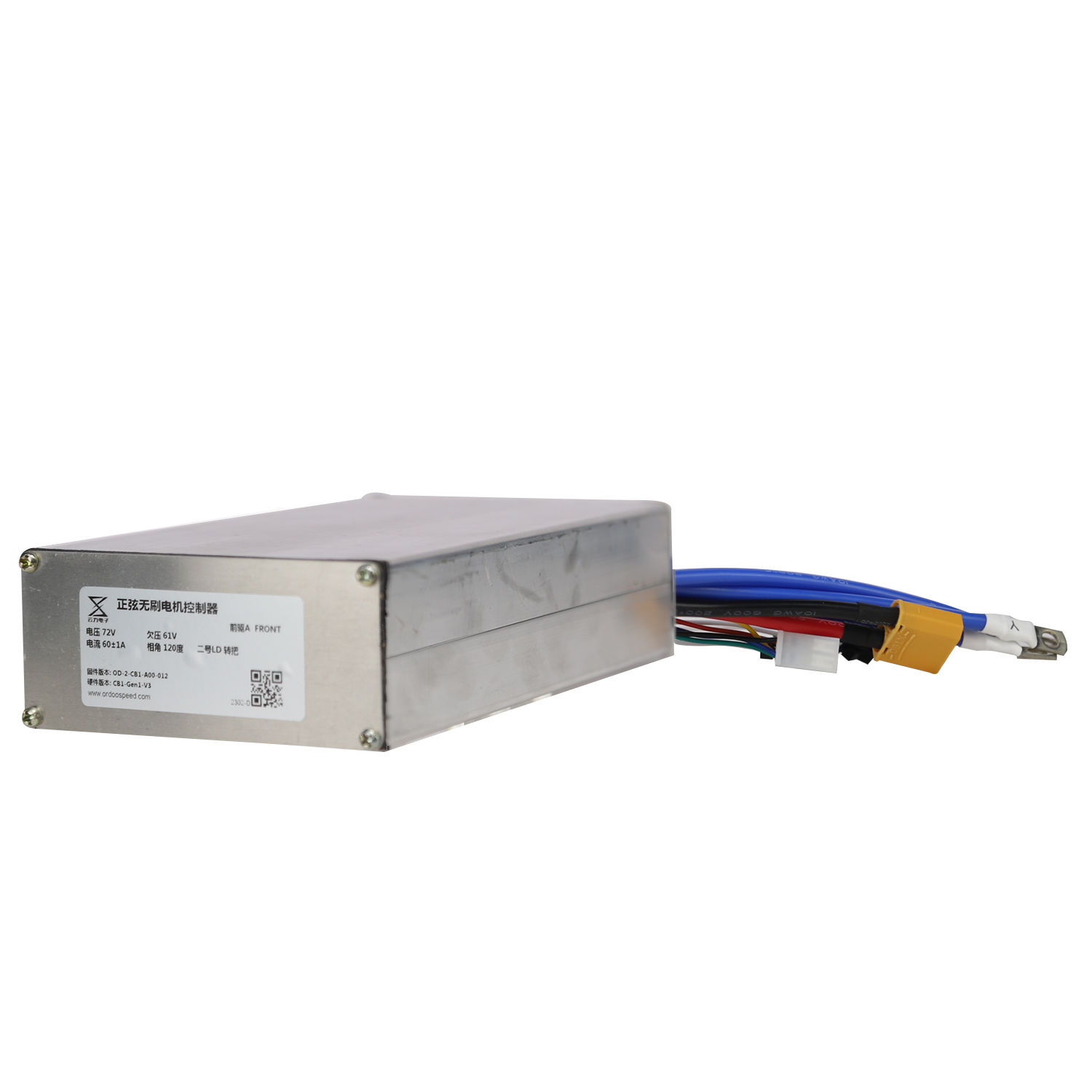

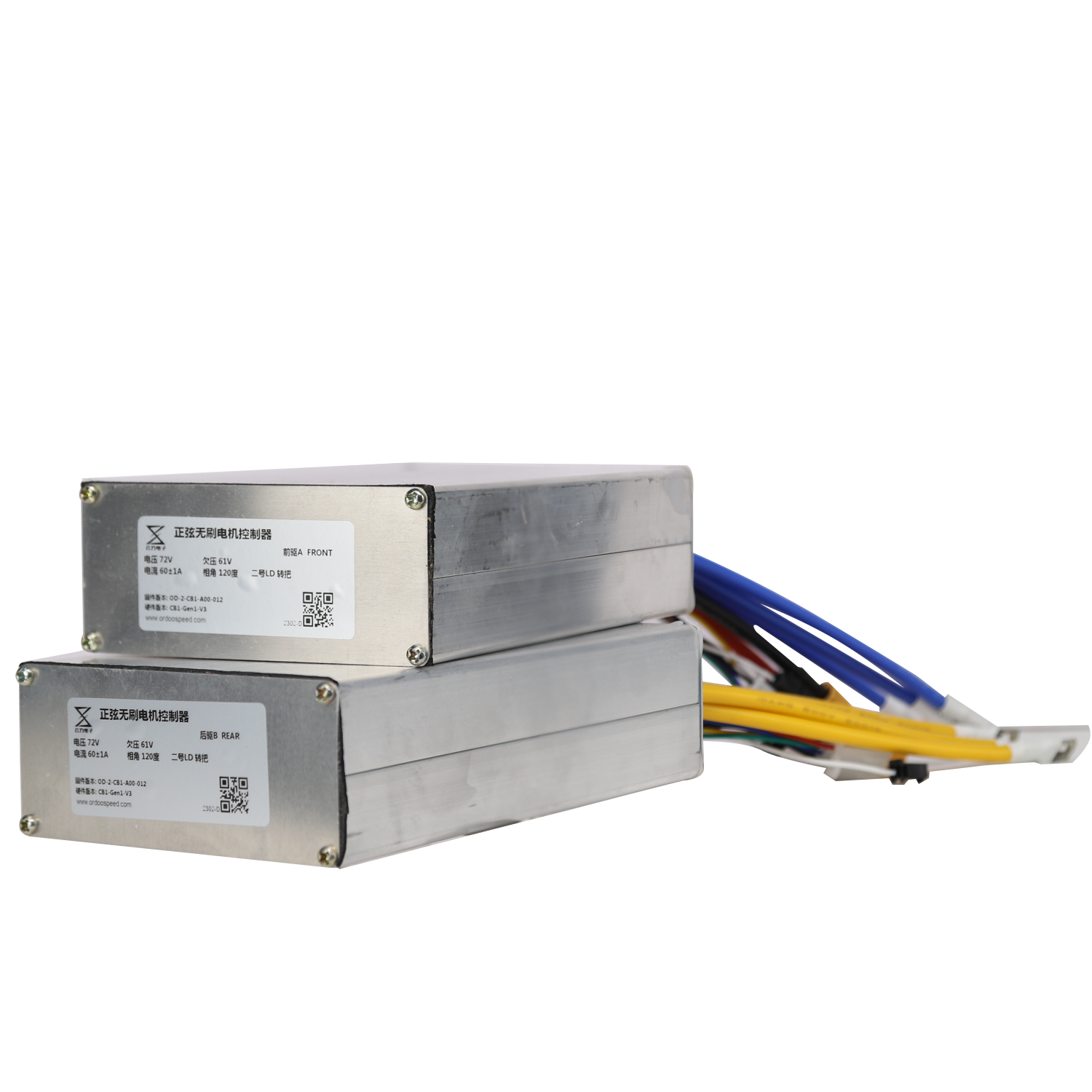

Osprey Motor Controller — Compact, Precise Motor Control

The Osprey motor controller is a compact controller for brushless and permanent-magnet motors. It combines field-oriented control, robust protections, and modern communications so you can get motors running smoothly, reliably, and without lengthy tuning cycles.

Benefits

Get machines running faster: reduces setup and tuning time so prototypes and production move ahead sooner.
Smoother motion and less wear: precise control lowers mechanical stress and extends motor and drivetrain life.
Lower operating costs: efficient control and optional regenerative braking reduce energy use.
Less downtime: built-in protections and diagnostics make faults easier to find and prevent damage.
Easier integration: common interfaces and configurable firmware let you plug the controller into existing systems quickly.

Features

Field-oriented control (FOC) for smooth torque and efficient operation of BLDC and PMSM motors.
Control modes: torque, velocity, and position control with configurable limits and ramps.
Regenerative braking and configurable energy handling.
Multiple communications: CAN 2.0B, UART, and USB for setup and diagnostics.
Onboard current sensing and temperature monitoring for closed?loop protection.
Safety features: overcurrent, overvoltage, undervoltage, overtemperature, reverse polarity protection, and emergency stop input.
Field-upgradable firmware and PC configuration tool with parameter logging.
Support for sensored and sensorless operation with automatic detection and tuning aids.

Specifications

Input voltage: 12–48 V DC
Continuous current: 40 A
Peak current (10 s): 120 A
PWM switching frequency: up to 20 kHz (configurable)
Supported motors: BLDC / PMSM, sensored and sensorless
Interfaces: CAN 2.0B, UART (TTL), USB (for configuration), PWM input, analog input
Feedback: encoder (quadrature), Hall sensors, optional analog tachometer
Protections: overcurrent, short-circuit, overvoltage, undervoltage, overtemperature, reverse polarity
Cooling: anodized aluminum housing with passive cooling; optional forced-air recommended for sustained peak loads
Environmental rating: IP54 (protected against dust and splashing water)
Operating temperature: -20 °C to +70 °C
Dimensions: 120 × 80 × 35 mm
Weight: 280 g
Mounting: 4 × M3 threaded insert
Connectors: power M8, signal JST 12-pin
Materials: aluminum housing, FR4 PCB, automotive-grade components
Compliance: CE
