YUME | Motor Controller Hawk & M 10 | YUMEPART20250314

SKU: YUMEPART20250314

$99.00

🚚 Free Shipping & No Sales Tax (some exclusions apply)

📦 Fast 4-7 Day Delivery

❓ Questions? Email us support@discoveranddo.com Call Our Experts 1-833-657-4927

Style

Model

Type

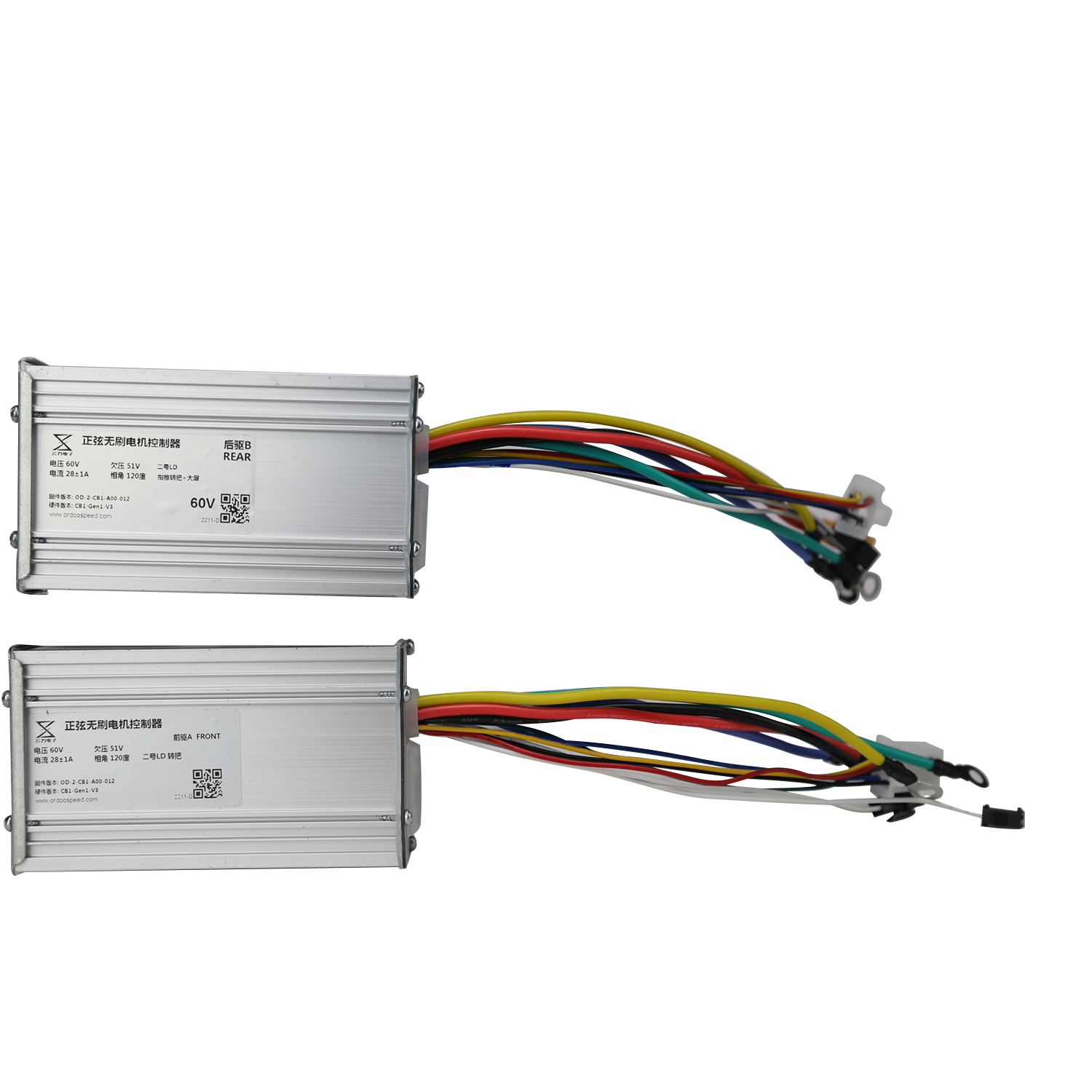

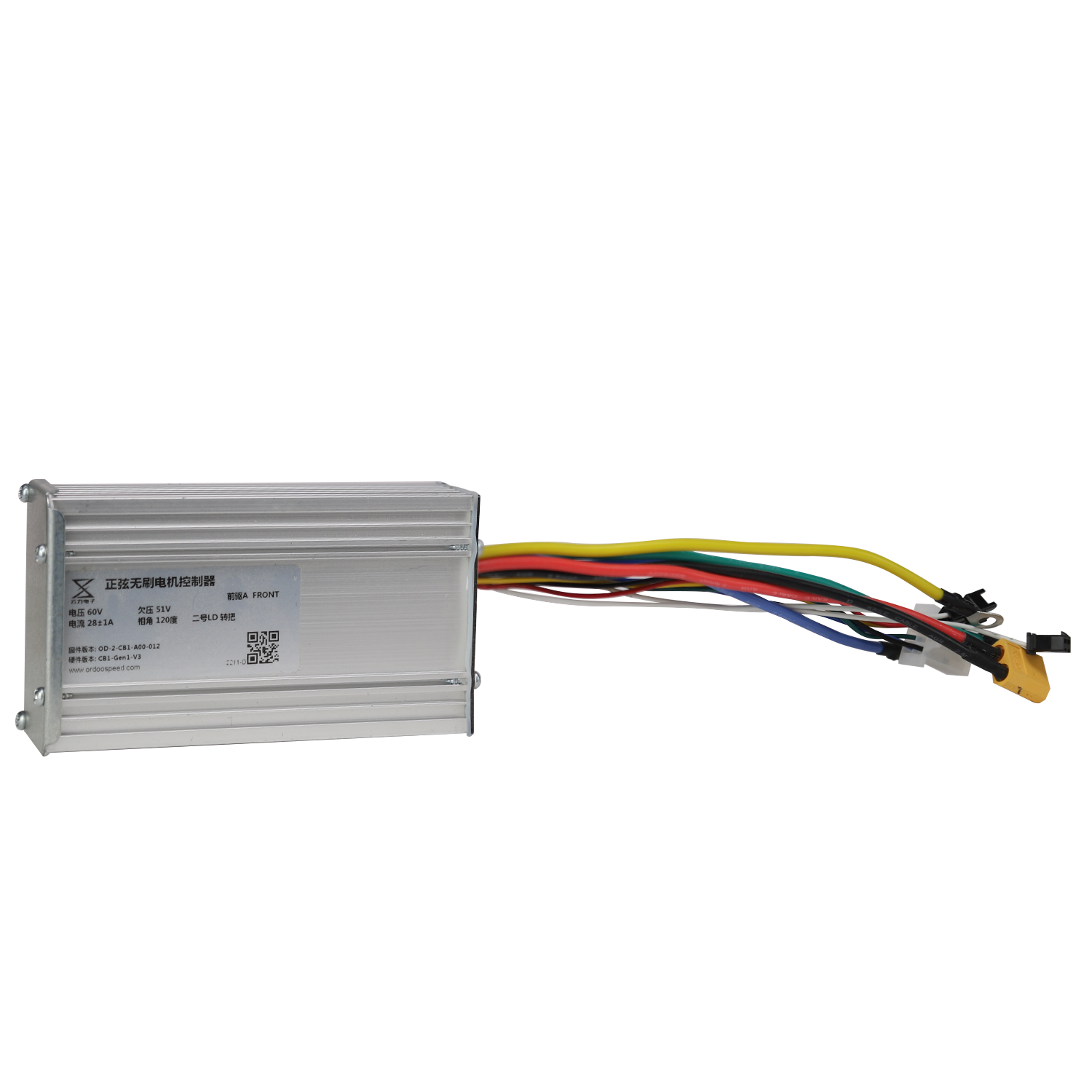

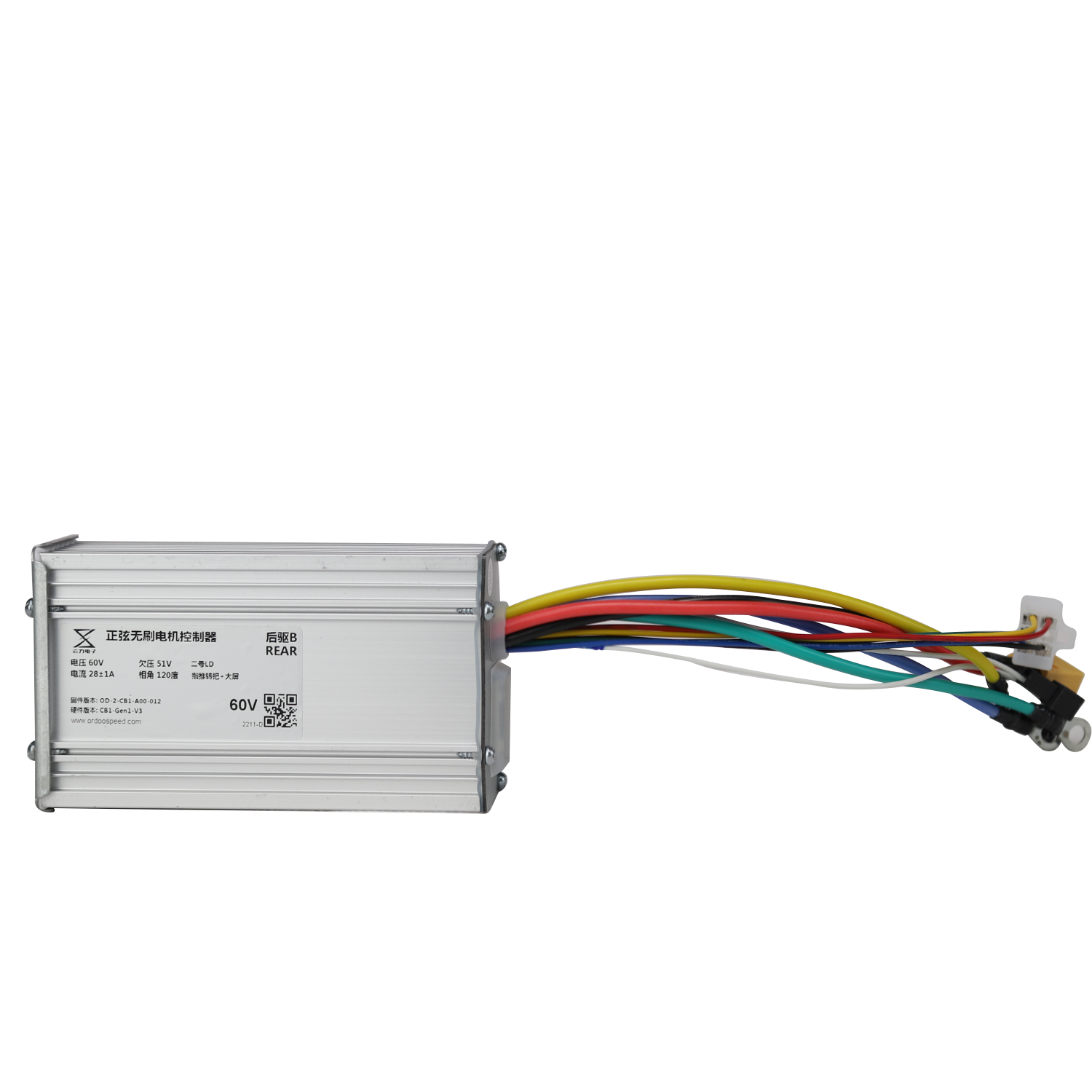

Hawk M-10 Motor Controller

Overview

The Hawk M-10 is a compact, rugged motor controller designed to give you smooth, reliable control for small electric drive systems. It fits into projects where predictable speed response, built-in protections, and simple integration matter.

Benefits

Get consistent, responsive motor behavior so machines start and stop exactly when you need them to.
Reduce downtime by protecting your motor and electronics from overcurrent, overheating, and wiring mistakes.
Save integration time with common interfaces (CAN, PWM, UART) that connect to existing controllers and sensors.
Extend battery run-time with efficient power conversion and configurable braking modes.
Make tuning and maintenance faster using the PC configurator and firmware updates.

Features

Supports brushed DC and sensorless BLDC motor control modes.
Smooth PWM-based speed and torque control with adjustable ramping.
Regenerative and dynamic braking options for energy recovery and controlled stops.
Multiple control inputs: CAN bus, PWM input, analog throttle, and UART for telemetry/configuration.
On-board protections: overcurrent, overvoltage, undervoltage, reverse polarity, and thermal shutdown.
PC-configurable firmware and real-time telemetry for tuning and diagnostics.
Compact aluminum housing with heat-sink design for passive cooling.

Specifications

Model: Hawk M-10
Input Voltage Range: 12 V – 48 V DC
Continuous Current Rating: 10 A
Peak Current (10 s): 30 A
Maximum Power (at 48 V): 480 W continuous
Control Interfaces: CAN 2.0, UART (TTL), PWM input, analog (0–5 V)
Motor Types Supported: Brushed DC, sensorless BLDC
Protection: Overcurrent, overvoltage, undervoltage, thermal, reverse polarity, short-circuit
Efficiency: Up to 95% (dependent on load and voltage)
Enclosure Material: Anodized aluminum
Ingress Protection: IP54 (sealed enclosure for dust and splash resistance)
Dimensions: 120 mm × 70 mm × 35 mm (L × W × H)
Weight: 320 g
Operating Temperature: -20 °C to +60 °C
Connectors: M6 power terminals, 10-pin JST control connector
Firmware: Upgradeable via UART/USB adapter (PC configurator available)
